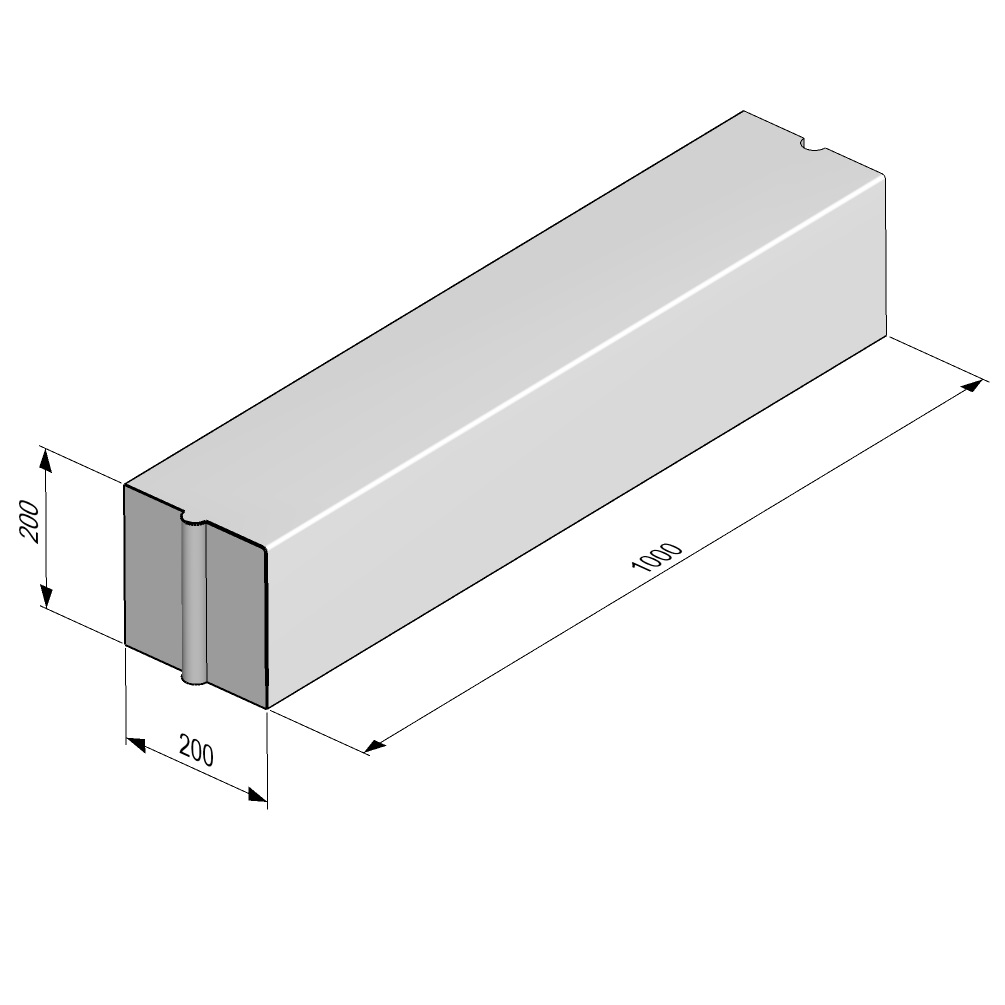

Cycle Kerb | Flat | Straight | 200×200
Specification Code: ATK-0960-CK-Opsluitbanden-20X20-ST-VB
Cycle kerbs are available in a variety of shapes and styles, in 3 standard concrete colours along with granite and surface aggregate options.
Shape Description: Straight
Place of manufacture: The Netherlands
Product Enquiry
Please click the cloud icon in the bottom left to download your BIM file.
| Purpose: Separate | Function: Bike to Footway |
| Width: 200 | End Style: VB |
| Depth: 200 | Length: 1000 |
| Slope Angle: 0 | Radius: 11.00 |
| Slope Gradient: 0 |
| Radius (m) | Length (mm) | No per 360° |
| 2.5 | 785 | 20 |
| 4 | 785 | 32 |
| 6 | 940 | 40 |
| 8 | 960 | 52 |
| 10 | 980 | 64 |
| 11 | 960 | 72 |
| 15 | 980 | 96 |
| 2.20 (internal) | 690 | 20 |
| 2.60 (internal) | 810 | 20 |
| 15 (internal) | 980 | 96 |
Works well with
-
Lavaro Wit 701
-
Lavaro Wit Zwart 705
-
Lavaro Zwart Glisando 160
-
Lavaro Zwart Groen 130
-
Lavaro Zwart 100
-
Lavaro Grijs Bont 070
-
Lavaro Grijs Zwart 032
-
Lavaro Grijs 012
-
Lavaro Grijs Zwart 030
-
Lavaro Bruin 300
-
Lavaro Rood Zwart 250
-
Silver Grey Granite
-
Buff Granite
-
Mid Grey Granite
-
Black
-
Dark Grey
-
Light Grey
