The stone-textured Vibrazolit® Exa paver proposal is based on a concept linked to the world of cladding, where joints between tiles become an “opportunity” to create a new orthographic projection from their real or drawn joints. It consists of 3 hexagonal modules, two of which are divided into 3 and 2 parts, which provide the possibility to obtain random configurations without distinction between orthographic projection and technical joints.
Relief and texture are achieved with an elastomer mould bottom, while colour and tonality are achieved by the combination of aggregates, inorgànic colourants, additives, and high strength white or grey cement. The tiles sit on a rigid concrete slab of 15 to 18 cm, designed for pedestrian use with ocasional vehicle traffic service, poured on a soil sub-base.
Product Enquiry
Please click the cloud icon in the bottom left to download your BIM file.

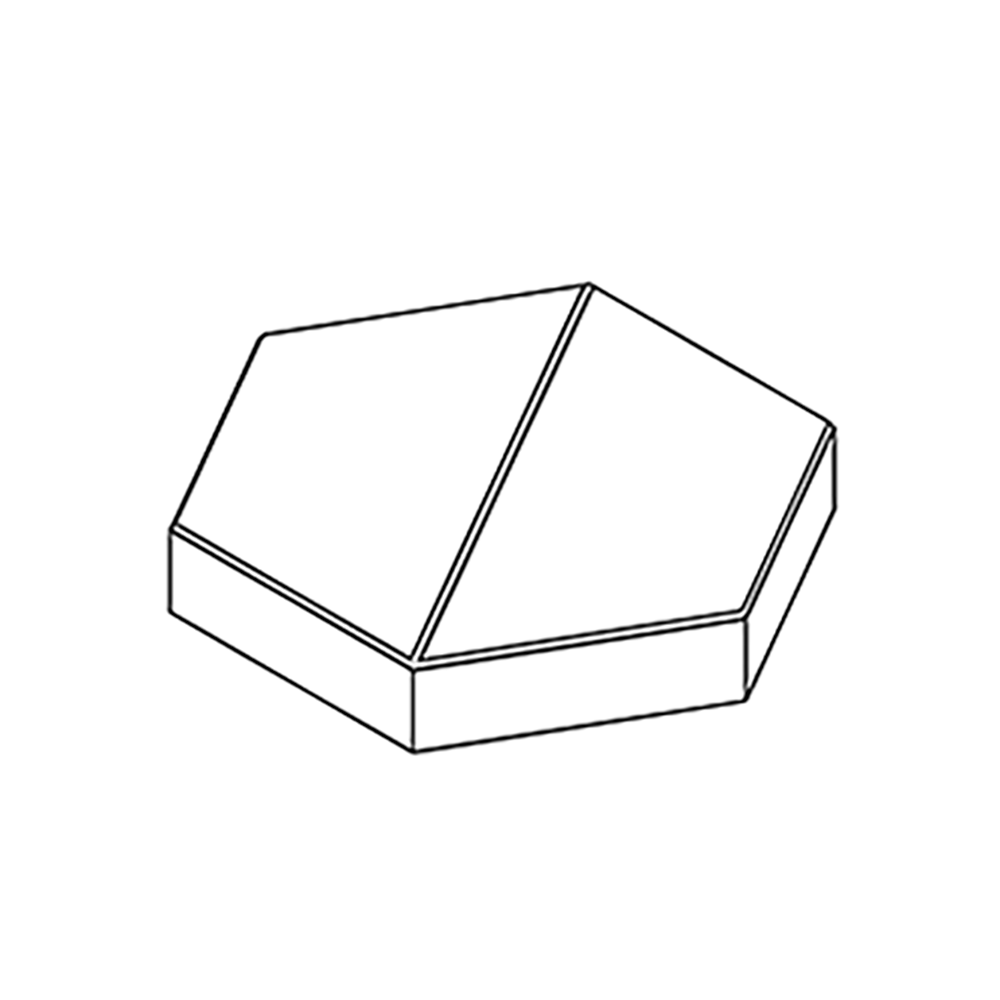

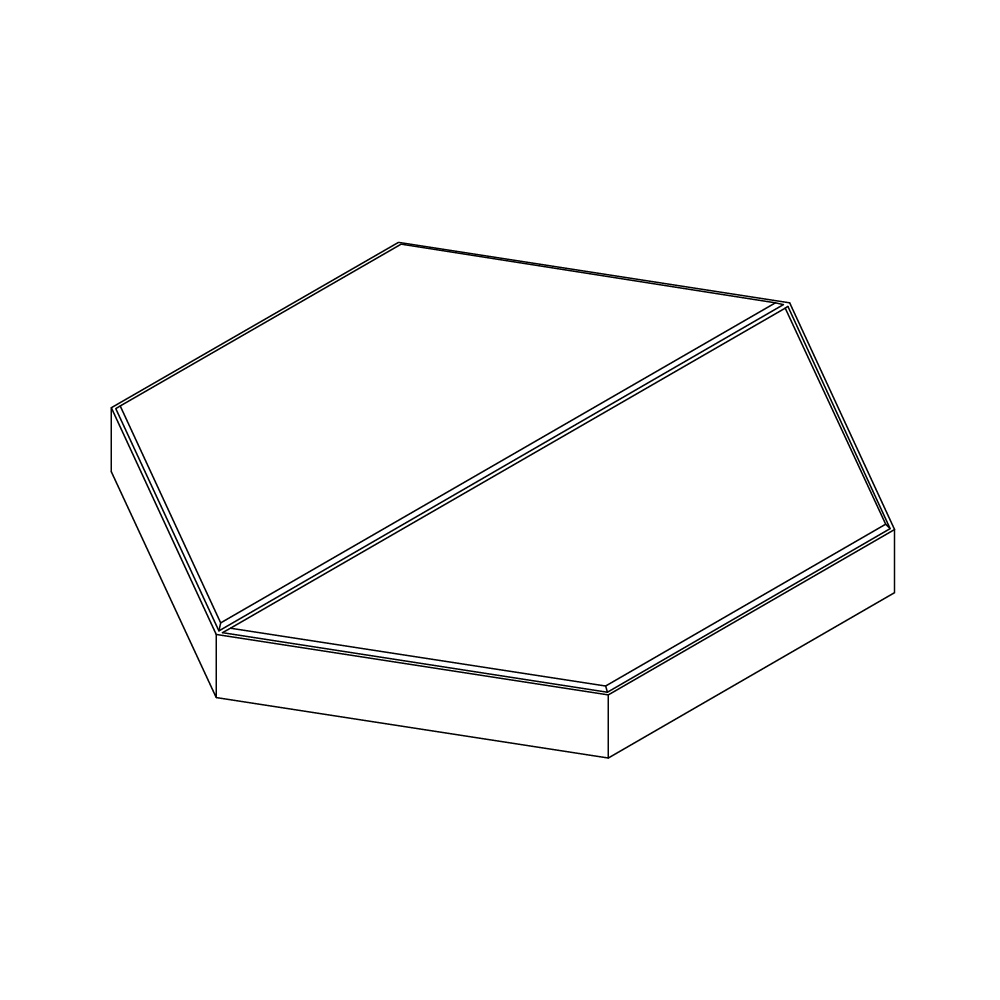

- SPECIFICATIONUrban Paving | Exa | 51 Double PanelSKU: ESC-CON-EXA-008
- Short Description:Hexagonal mosaic paver
- Size:514(w) x 594(l) x 60(d)mm
- Length (mm) X-axis:594
- Width (mm) Y-axis:514
- Depth (mm) Z-axis:60
- Weight Per Unit:31kg
Specification & technical data aligns with our most recent testing, but is indicative and should be treated as such. Some images are computer renders, and all are for illustrative purposes only, exact colours may vary.
Other Products in this family
COLOUR / MATERIAL / FINISH
Concrete : Vibrazolit
Vibro-Pressed bilayer concrete.
