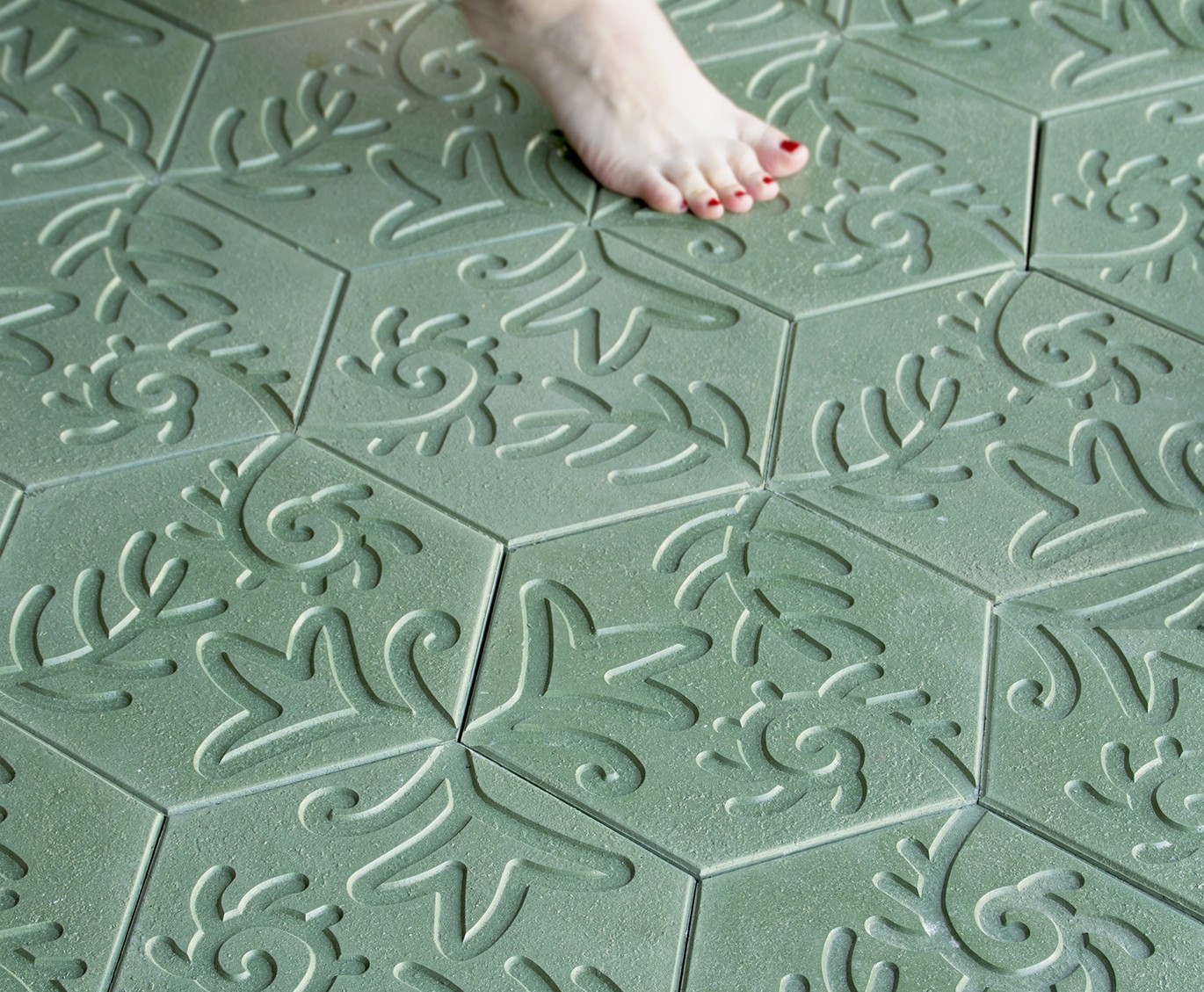

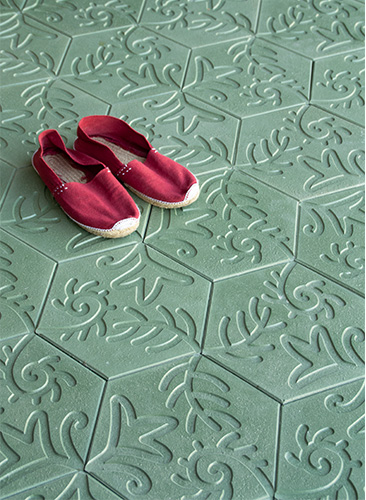

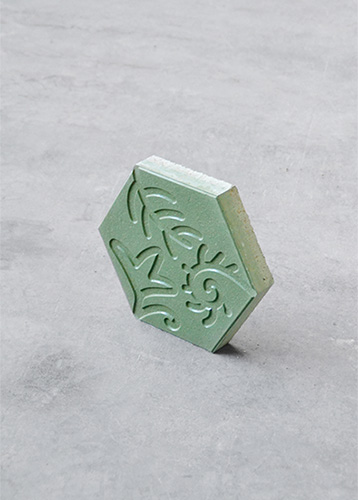

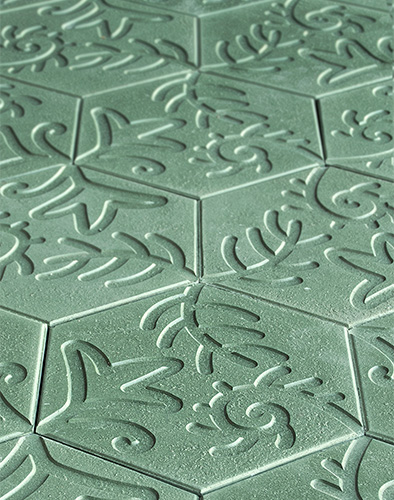

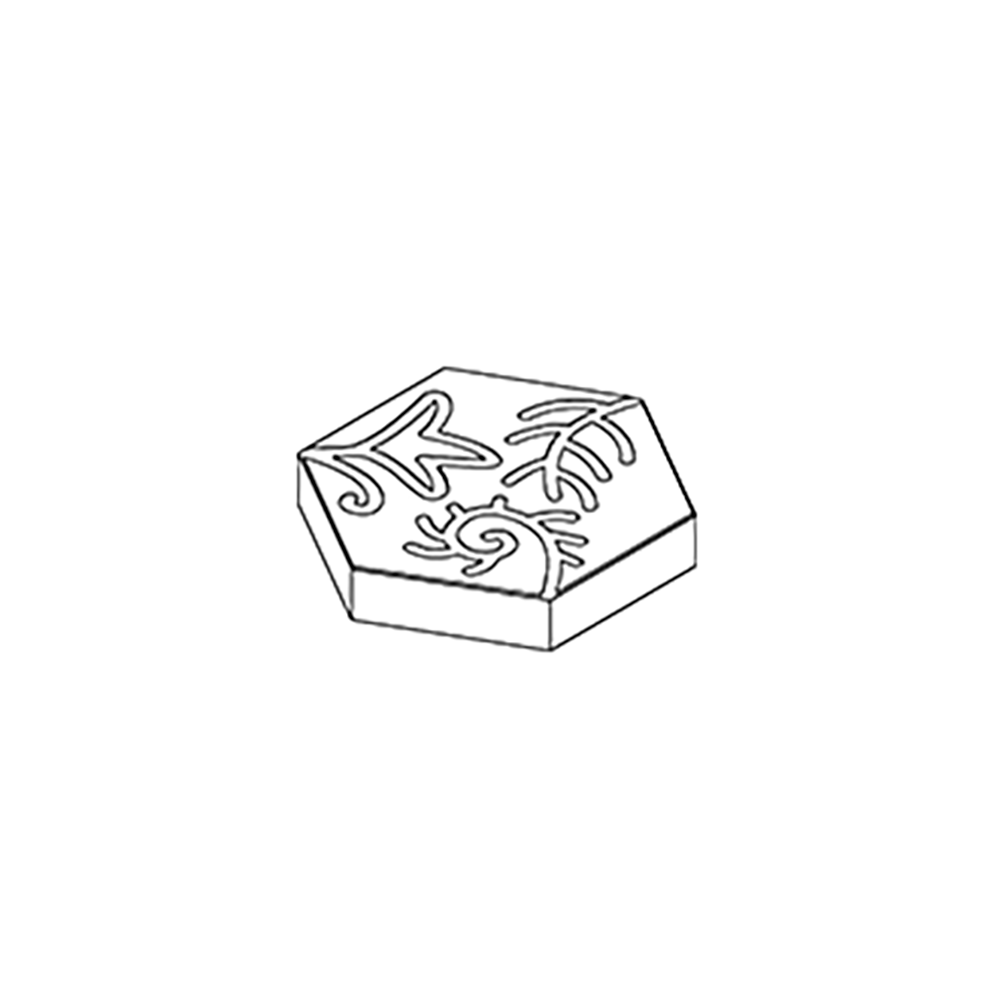

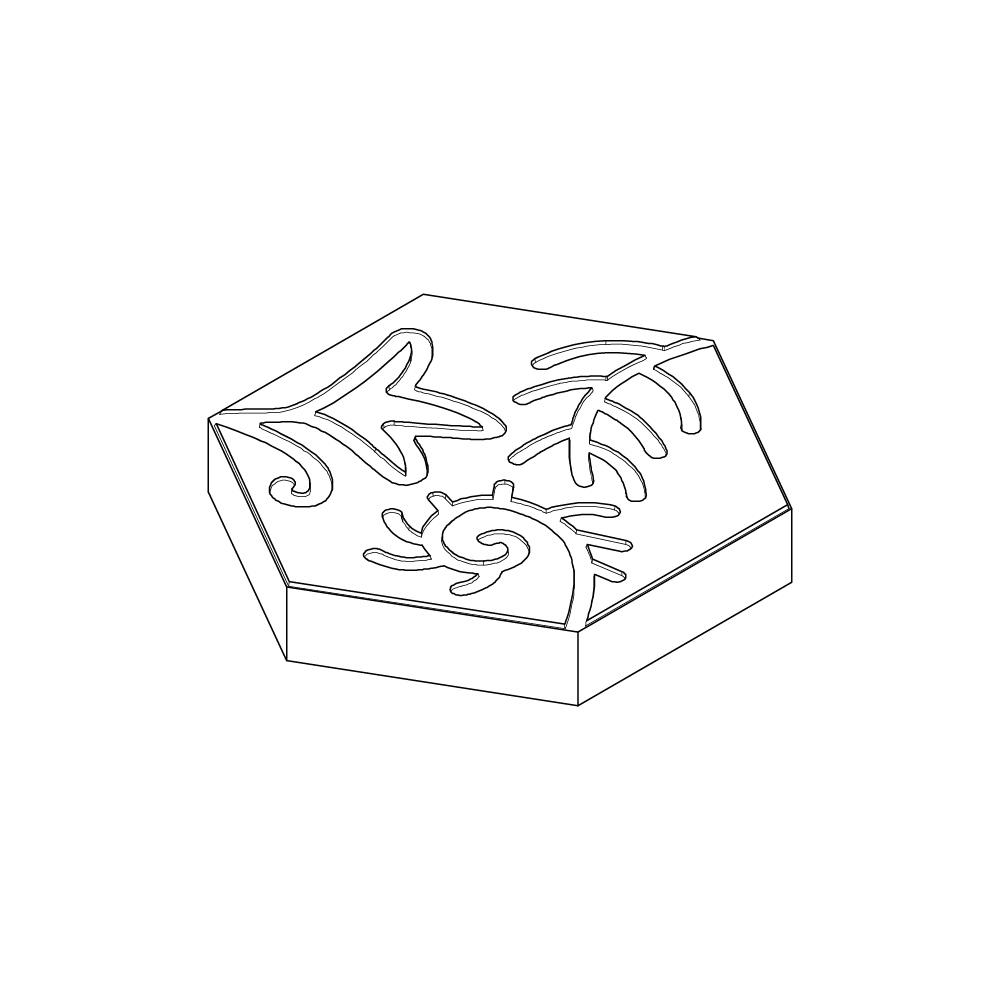

The Moderna Vibrazolit® relief tile reproduces three floral motifs anchored in the vertices of the hexagon. Its placement enables composition of homogeneous or random patterns according to the layout of the tiles on the surface.
Relief and texture are achieved with an elastomer mould bottom, while colour and tonality are achieved by the combination of aggregates, inorganic colourants, additives, and high strength white or grey cement. The tiles sit on a rigid concrete slab of 15 to 18 cm, designed for pedestrian use with ocasional vehicle traffic service, poured on a soil sub-base.
Product Enquiry
Please click the cloud icon in the bottom left to download your BIM file.
- SPECIFICATIONUrban Paving | ModernaSKU: ESC-CON-MOD-011
- Short Description:Hexagonal mosaic paver
- Size:250(w) x 288(l) x 45(d)mm
- Length (mm) X-axis:288
- Width (mm) Y-axis:250
- Depth (mm) Z-axis:45
- Weight Per Unit:4.8kg
- Weight Per Pack:1020kg
- Pack Quantity:208
- Coverage Per Pack:11.26m2
- Quantity per m2:18.5
- Manufacturing Standard:EN 13748-2:2005
- Durability (Freeze/Thaw Resistance):0.1 kg/m2
- Flexural Freeze/Thaw:5MPa
- Slip Resistance:Rd 65
- Water Absorption:6%
- Abrasion Resistance:≤ 20 mm
Specification & technical data aligns with our most recent testing, but is indicative and should be treated as such. Some images are computer renders, and all are for illustrative purposes only, exact colours may vary.
Other Products in this family
COLOUR / MATERIAL / FINISH
Concrete : Vibrazolit
Vibro-Pressed bilayer concrete.
