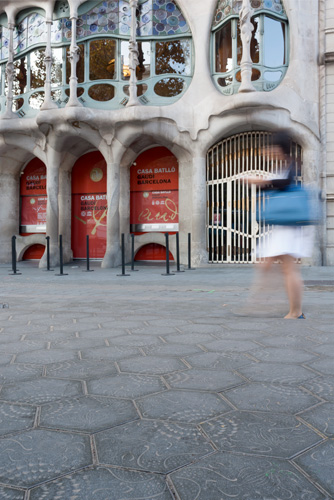

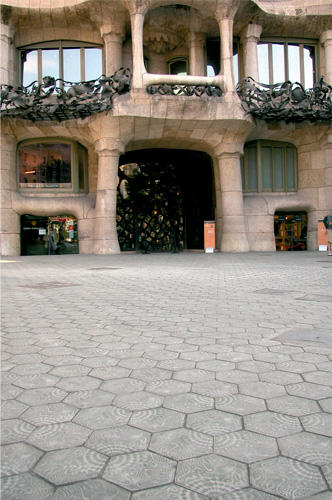

Panot Gaudí is a new paver that has been regenerated from the original relief of a hydraulic mosaic tile produced by Antonio Gaudí in 1904. As a tribute to this famous architect, the city of Barcelona paved Paseo de Gràcia with these hexagonal tiles, produced using the original Escofet molds from the start of the 20th century.

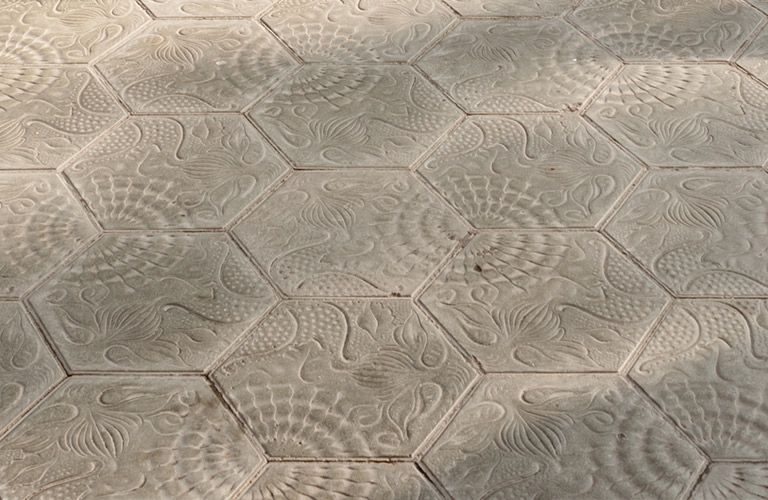

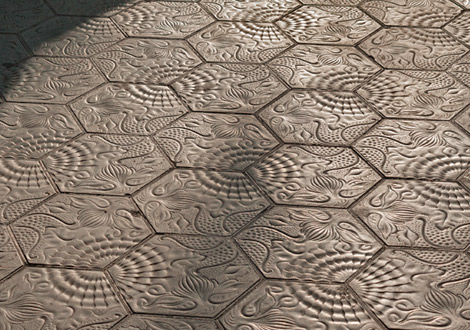

The "Gaudí mosaic tile" is a magnificent example of the architect´s genius and his work, the convergence of two constants in his work: geometry and symbolism. The shape and the images of these tiles remind us of Gaudi´s thought, based on the meticulous observation of the forms and structures found in nature, «nature that has always been my master». The six-sided profile reminds us of honeycomb, turtle shells or perhaps crocodile skin, while the bas relief figures on the pavers, starfish, snails and seaweed, bring the sinuous movement of the sea to mind.
Product Enquiry
Please click the cloud icon in the bottom left to download your BIM file.
- SPECIFICATIONUrban Paving | GaudiSKU: ESC-CON-GUA-001

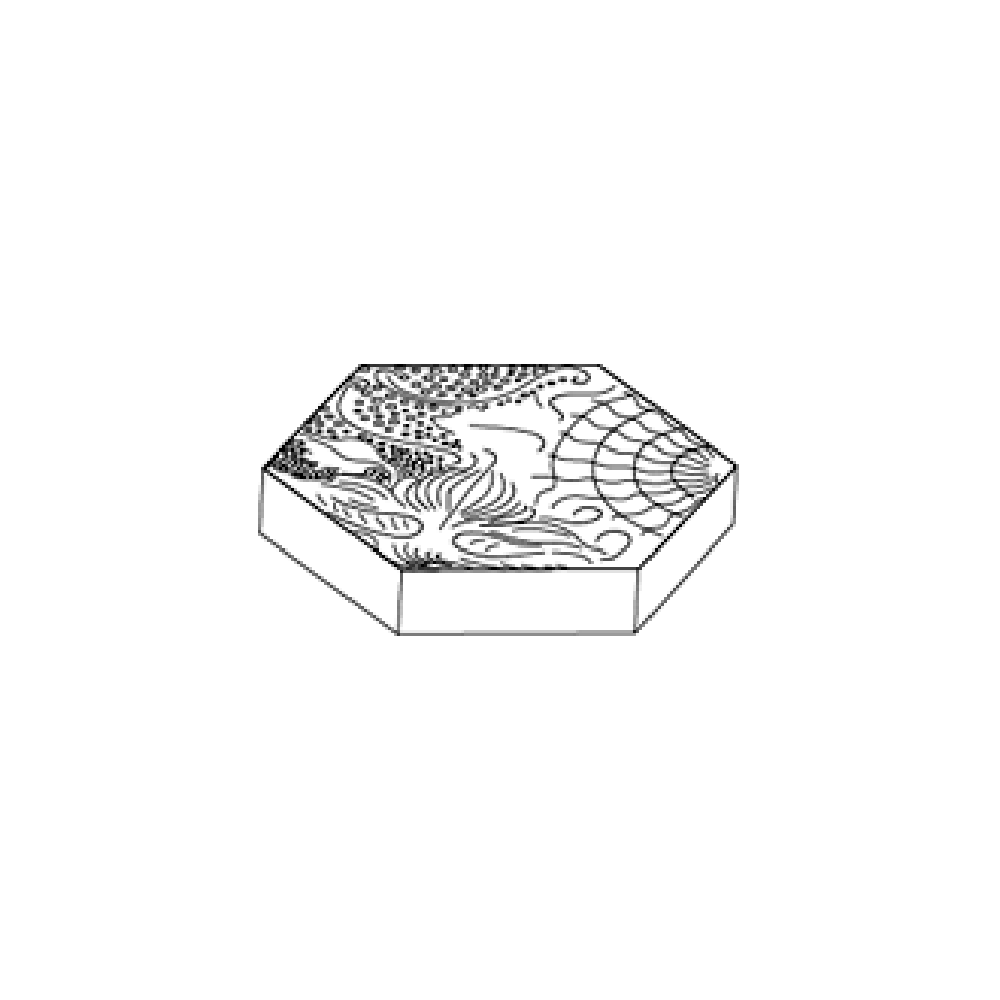

- Short Description:Hexagonal mosaic paver
- Size:250(w) x 288(l) x 45(d)mm
- Length (mm) X-axis:288
- Width (mm) Y-axis:250
- Depth (mm) Z-axis:45
- Weight Per Unit:4.8kg
- Weight Per Pack:1020kg
- Pack Quantity:208
- Coverage Per Pack:11.26m2
- Quantity per m2:18.5
- Manufacturing Standard:EN 13748-2:2005
- Durability (Freeze/Thaw Resistance):0.1 kg/m2
- Flexural Freeze/Thaw:5MPa
- Slip Resistance:Rd 65
- Water Absorption:6%
- Abrasion Resistance:≤ 20 mm
Specification & technical data aligns with our most recent testing, but is indicative and should be treated as such. Some images are computer renders, and all are for illustrative purposes only, exact colours may vary.
Other Products in this family
COLOUR / MATERIAL / FINISH
Concrete : Vibrazolit
Vibro-Pressed bilayer concrete.
