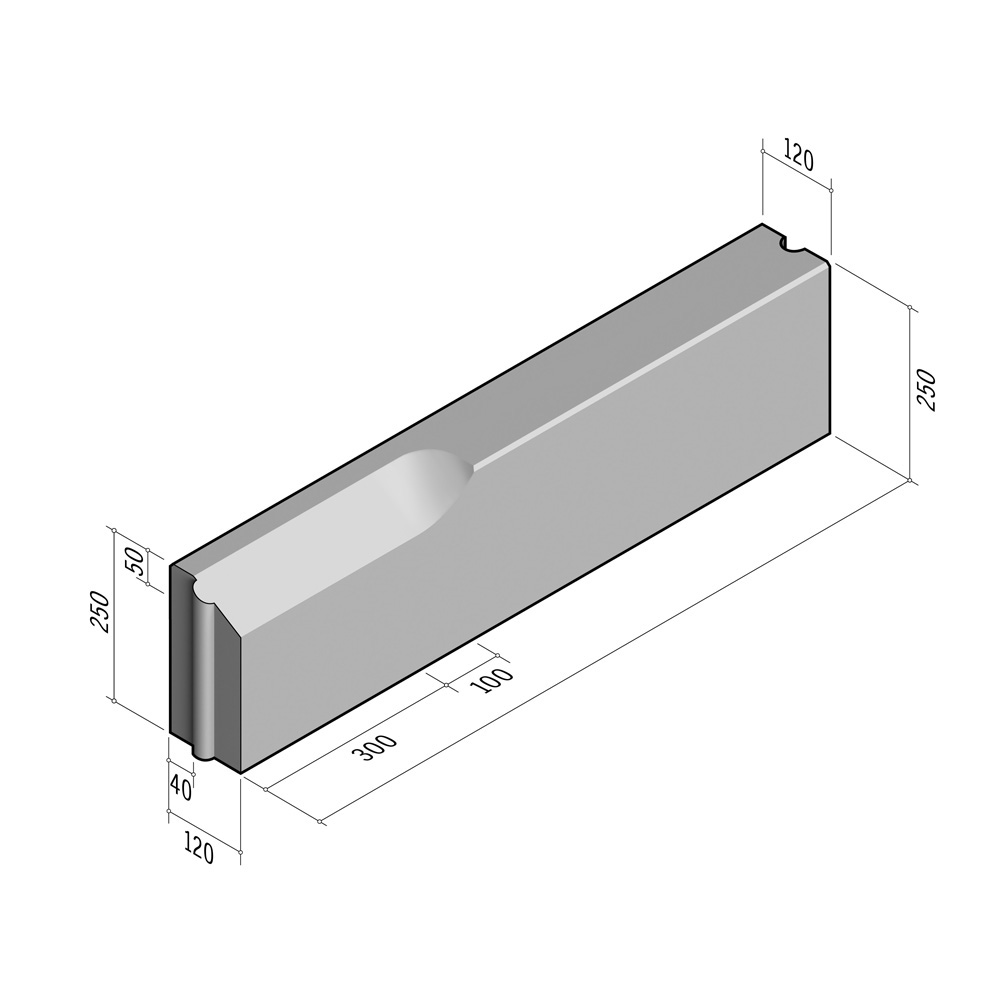

Cycle 40-120×250 | L-1000 | Transition to 120×250 | Splay | HDHD
SKU: ATK-CYC-003-6576
Dutch Name: VERLOOPBANDEN-4-12x25_12x25xL100-STT-HDHD
Featuring a forgiving splay in a variety of angles and widths, cycle kerbs allow the maximum use of the cycleway’s width at a comfortable enough angle to allow easy entry and exit for users. Our comprehensive sets of cycle kerbs allow for coherent and flowing designs to be formed.
Product Enquiry
Please click the cloud icon in the bottom left to download your BIM file.
| Type: Transition | |
| Length: 1000 | End Style: HDHD |
| Profile: 40-120x250 | Position: n/a |
| Transition to: 120x250 | |
| Weight: 72kg | kg CO2e/Unit: 7.67kg |
| Face: Splay_Flat | Face Angle: 32° |
| Return Angle: n/a | Radius: n/a |
| Slope Angle: n/a | Slope Gradient: n/a |
-
Lavaro Grijs Bont 070 1
-
Lavaro Zwart 100
-
Lavaro Zwart Groen 130
-
Lavaro Grijs 012
-
Lavaro Wit 701
-
Lavaro Grijs Zwart 030
-
Lavaro Grijs Zwart 032
-
Lavaro Zwart Glisando 160 1
-
Lavaro Rood Zwart 250
-
Lavaro Bruin 300
-
Lavaro Wit Zwart 705
-
Silver Grey Granite
-
Buff Granite
-
Mid Grey Granite
-
Standard Light grey
-
Standard Dark grey
-
Standard Black
