Civils & Highways
Traffic Management / Humps & Plateaus

Traffic Plateaus 20mph
1500 Sinusoidal 120

Enquire about this product

Product Enquiry

Please click the cloud icon in the bottom left to download your BIM file.

  • SPECIFICATION
    Traffic Plateaus 20mph | 1500 Sinusoidal 120 | 120-240x1500 | L-500SKU: TMA-HPL-TP3-007

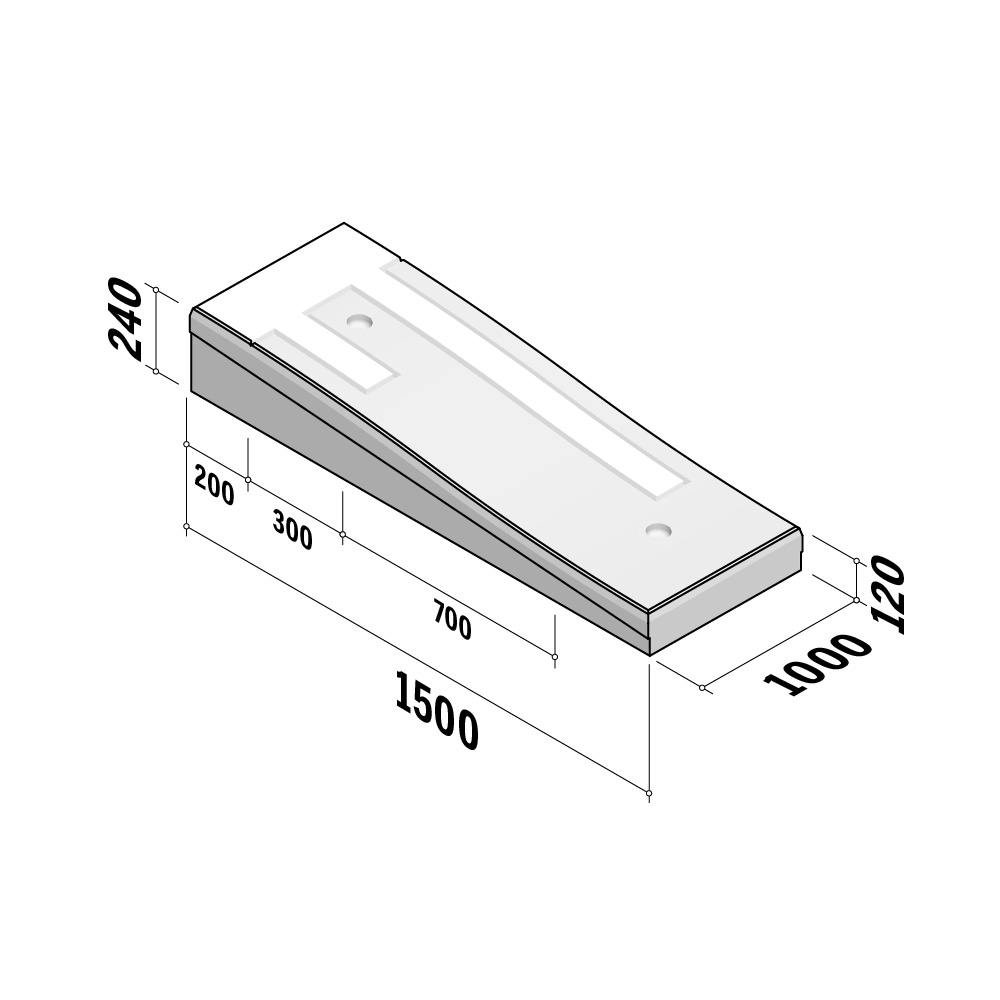

  • Size:500(l) x 120-240(w) x 1500(d)
  • Length (mm) X-axis:500
  • Width (mm) Y-axis:120-240
  • Depth (mm) Z-axis:1500
  • Weight Per Unit:317kg
  • Manufacturing Standard:BS EN 1340:2003
  • Density:2350 kg/m3
  • GWP (total) kgCO2e:33.78 kgCO2e/unit
  • Reference Code:PLATEAUDREMPELS 150 SINUS 12 CM-120-240x1500xL500
Traffic Plateaus 20mph | 1500 Sinusoidal 120 | 120-240x1500 | L-500

Specification & technical data aligns with our most recent testing, but is indicative and should be treated as such. Some images are computer renders, and all are for illustrative purposes only, exact colours may vary.

Other Products in this family

Traffic Plateaus 20mph | 1000 Sinusoidal 80 | 120-200x1000 | L-1000

1000 Sinusoidal 80
(2 variants)

Traffic Plateaus 20mph | 1000 Sinusoidal 80 Block Pattern | 120-200x1000 | L-1000 | Left

1000 Sinusoidal 80 Block Pattern
(4 variants)

Traffic Plateaus 20mph | 1500 Sinusoidal 120 Block Pattern | 120-240x1500 | L-1000

1500 Sinusoidal 120 Block Pattern
(2 variants)

COLOUR / MATERIAL / FINISH

Concrete : ZVB

Self-compacting standard concrete colour + dyed or coated, with a fine texture.

Kellen : Lavaro

With a 70% natural aggregate surface in slightly coarser grain size. The top layer is water washed during production to reveal the varied colour of the aggregate form and thereby provides a market unique stone realistic surface.
