Civils & Highways
Traffic Management / Humps & Plateaus

Traffic Plateaus 20mph
1500 Sinusoidal 120 Block Pattern

Enquire about this product

Product Enquiry

Please click the cloud icon in the bottom left to download your BIM file.

  • SPECIFICATION

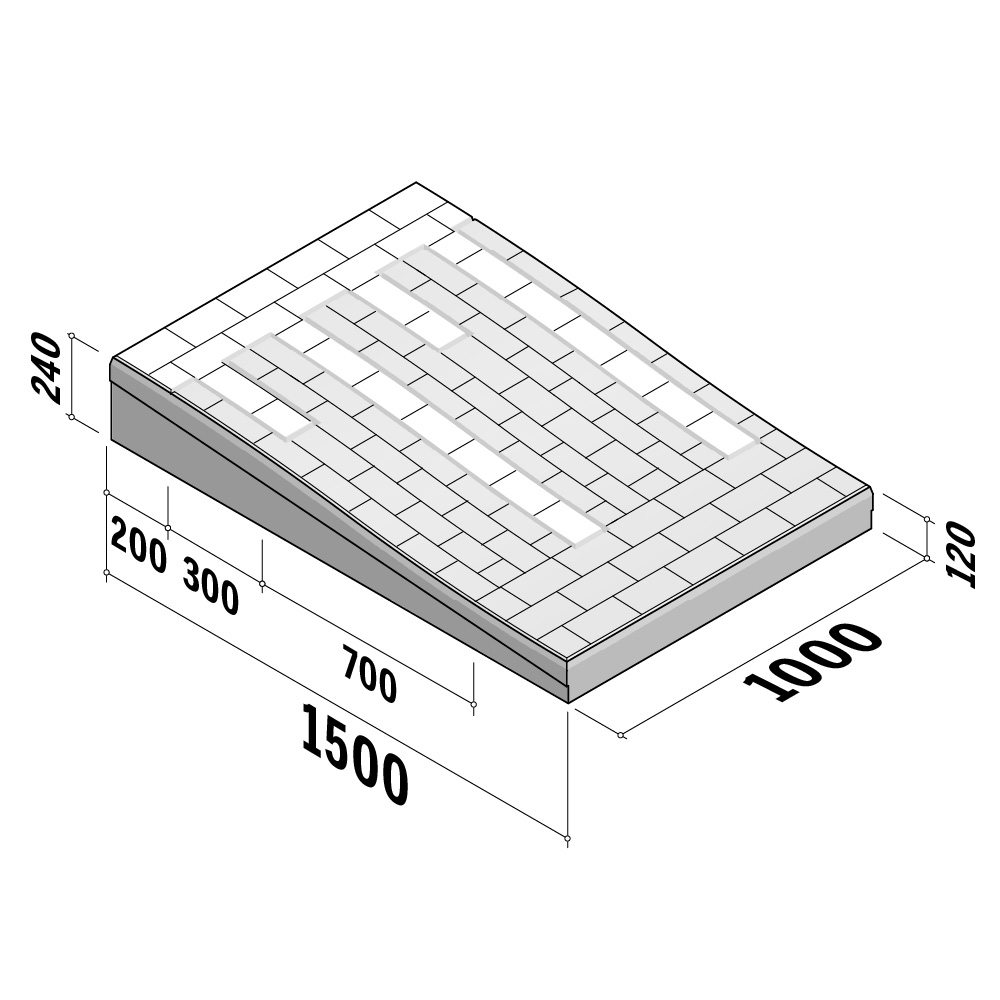

    Traffic Plateaus 20mph | 1500 Sinusoidal 120 Block Pattern | 120-240x1500 | L-1000SKU: TMA-HPL-TP3-010
  • Size:1000(l) x 120-240(w) x 1500(d)
  • Length (mm) X-axis:1000
  • Width (mm) Y-axis:120-240
  • Depth (mm) Z-axis:1500
  • Weight Per Unit:634kg
  • Manufacturing Standard:BS EN 1340:2003
  • Density:2350 kg/m3
  • GWP (total) kgCO2e:67.55 kgCO2e/unit
  • Reference Code:PLATEAUDREMPELS 150 SINUS 12 CM MET STRAATSTEENMOTIEF-120-240x1500xL1000
Traffic Plateaus 20mph | 1500 Sinusoidal 120 Block Pattern | 120-240x1500 | L-1000

Specification & technical data aligns with our most recent testing, but is indicative and should be treated as such. Some images are computer renders, and all are for illustrative purposes only, exact colours may vary.

Other Products in this family

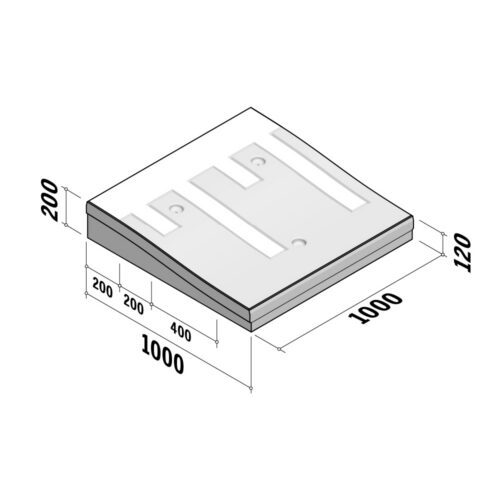

Traffic Plateaus 20mph | 1000 Sinusoidal 80 | 120-200x1000 | L-1000

1000 Sinusoidal 80
(2 variants)

Traffic Plateaus 20mph | 1000 Sinusoidal 80 Block Pattern | 120-200x1000 | L-1000 | Left

1000 Sinusoidal 80 Block Pattern
(4 variants)

Traffic Plateaus 20mph | 1500 Sinusoidal 120 | 120-240x1500 | L-1000

1500 Sinusoidal 120
(2 variants)

COLOUR / MATERIAL / FINISH

Concrete : ZVB

Self-compacting standard concrete colour + dyed or coated, with a fine texture.

Kellen : Lavaro

With a 70% natural aggregate surface in slightly coarser grain size. The top layer is water washed during production to reveal the varied colour of the aggregate form and thereby provides a market unique stone realistic surface.

  • Zwart 100
    Kellen

    Zwart 100

    Lavaro View Products
    Black
