Serp is a modular backless bench system formed by five models with different radii, which can be added to others to form long zigzag bench arrangements, with and without LED lighting. Its rounded ends permit the installation of continuity modules, with no specific requirements in terms of precision. In the Serp Comfort version, the modules have a recessed teak wood seat.
The Serp Comfort modular backless bench was first used in the elevated square of the Diagonal Mar shopping mall in Barcelona, where the LED lighting was first incorporated into the standard grooves provided for that purpose.
The modules, with a square cross section of 50 x 50 cm and gently rounded edges, are made from dry mix concrete with an etched and water-repellent finish, in the Escofet standard chart colours. Due to its heavy weight, it rests subtly on the ground or paving, with no need for anchors. Each module has two supporting legs that permit the passage of transportation slings to lift it from the ground, thus facilitating rainwater drainage.
Etched and waterproofed Concrete Teak Wood.
Product Enquiry
Please click the cloud icon in the bottom left to download your BIM file.

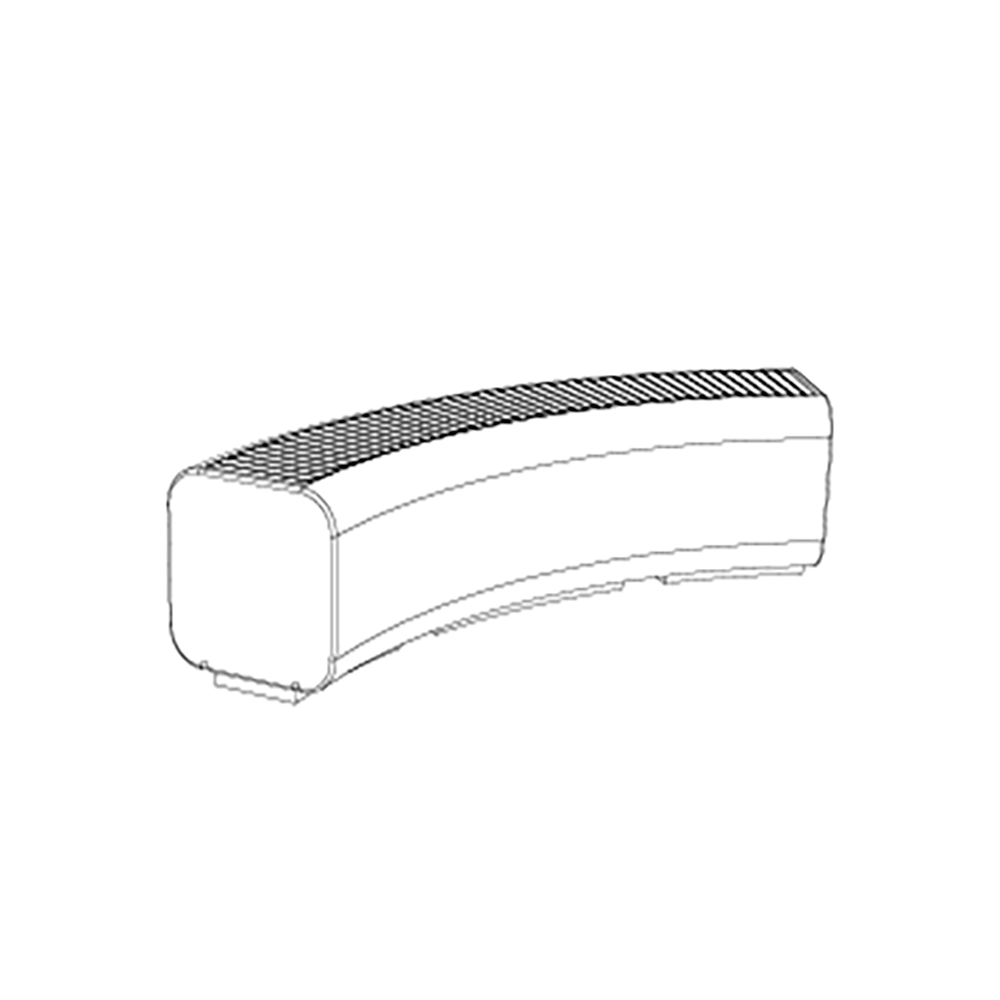

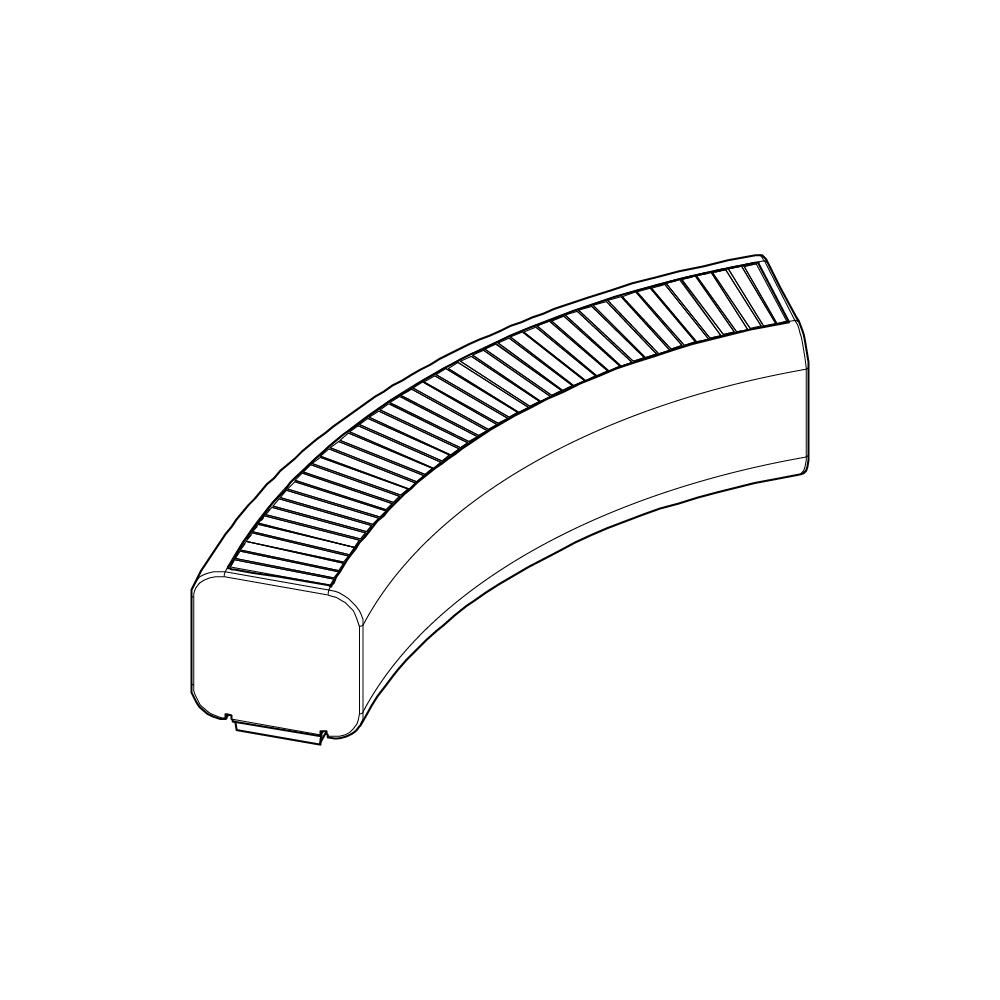

- SPECIFICATIONSerp Comfort | Backless Bench | Curve R185SKU: ESC-ULI-SCO-244
- Size:2230(l) x 720(w) x 540(h)
- Length (mm) X-axis:2230
- Width (mm) Y-axis:720
- Height (mm) Z-axis:540
- Seat Height (mm) Z-axis:540
- Weight Per Unit:1244 kg
Specification & technical data aligns with our most recent testing, but is indicative and should be treated as such. Some images are computer renders, and all are for illustrative purposes only, exact colours may vary.
Other Products in this family
COLOUR / MATERIAL / FINISH
Concrete : EWC
Etched & waterproofed concrete.
