As denoted in the Guidance on use of Tactile Paving Surfaces and Local Transport Note 1/20, when a cycleway and footway are at the same level a raised strip or other textured surface should be used.

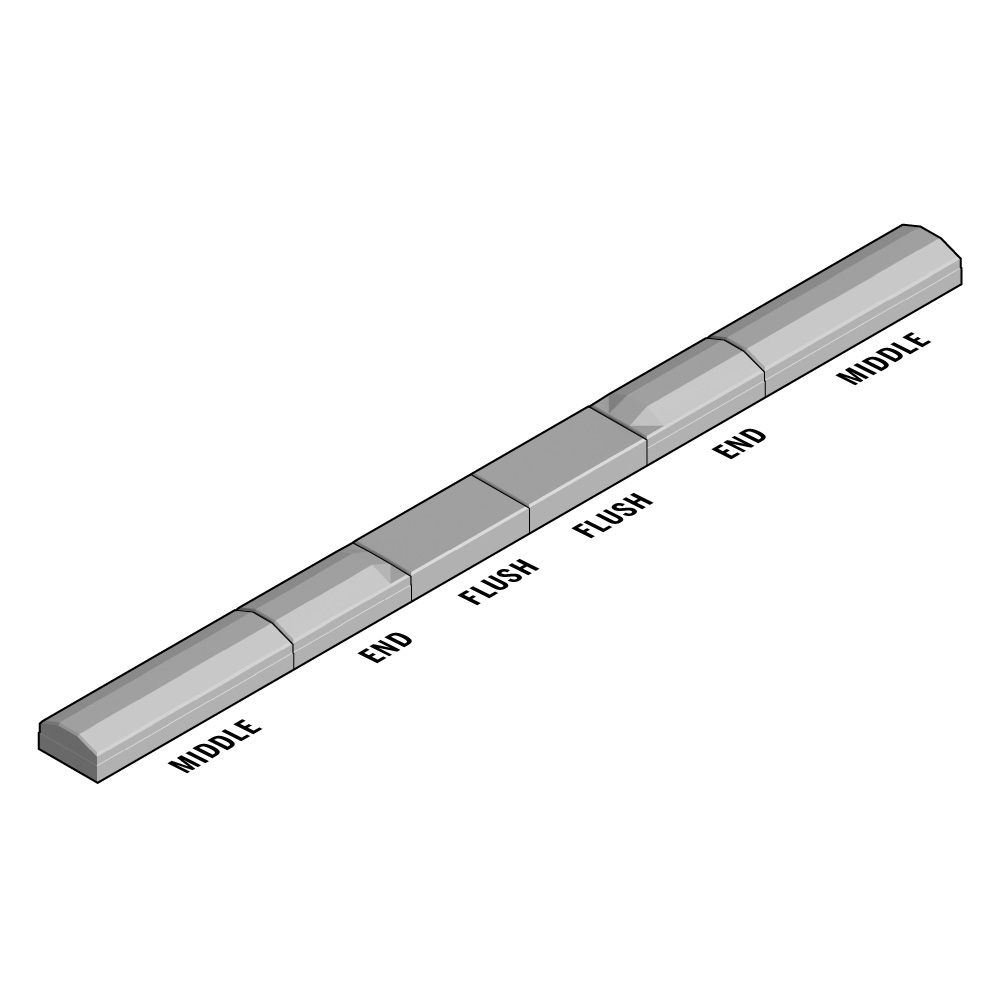

Our delineator design closely follows the design set out in the Guidance for use of Tactile Paving Surfaces (Pg.57) and comes with 4 pieces in the set. A 500mm long middle, an end unit which can be used in both directions and a flush unit for drainage and access points (available in two depths).
Click here to view the Wave Reflex which is an alternative textured solution as set out in LTN 1/20.
Product Enquiry
Please click the cloud icon in the bottom left to download your BIM file.
- SPECIFICATIONSegregator 50-150 (Delineator) | 50-150x60 | Straight | L-300 | Flat | SQSKU: ATK-SEG-002-9502
- Size:150(w) x 60(d) x 300(l)
- Length (mm) X-axis:300
- Width (mm) Y-axis:150
- Depth (mm) Z-axis:60
- Weight Per Unit:6.35kg
- Manufacturing Standard:BS EN 1340:2003
- GWP (total) kgCO2e:0.68 kgCO2e/unit
- Reference Code:TEGEL-5-15x6xL30-SQ
- Type:Straight
- End Style:SQ
- Profile:50-150x60
- Face:Flat
Downloads
Specification & technical data aligns with our most recent testing, but is indicative and should be treated as such. Some images are computer renders, and all are for illustrative purposes only, exact colours may vary.
Other Products in this family
COLOUR / MATERIAL / FINISH
Concrete : Standard Wet Cast
Standard wet cast concrete colour or dyed.
Kellen : Lavaro
With a 70% natural aggregate surface in slightly coarser grain size. The top layer is water washed during production to reveal the varied colour of the aggregate form and thereby provides a market unique stone realistic surface.
Kellen : Optiflex
Washed top layer with highly reflective natural stone.
