50-150x80 | Straight
The 150mm width and 20mm upstand height of the delineators profile come directly from the profile shown in the 'Guidance on the use of Tactile Paving Surfaces' p.57, and is also noted for use in 8.2.5 of LTN1/20. This end unit can be used at the start and end of a delineator run, or at intervals to provide drainage points along with the flush units for wider drainage point or access points.
Click here to see the Wave Reflex flag, which is the Dutch solution to delineation between cycleway and footway and also satisfies 8.2.5 of LTN 1/20 with a raised textured surface.
Product Enquiry
Please click the cloud icon in the bottom left to download your BIM file.

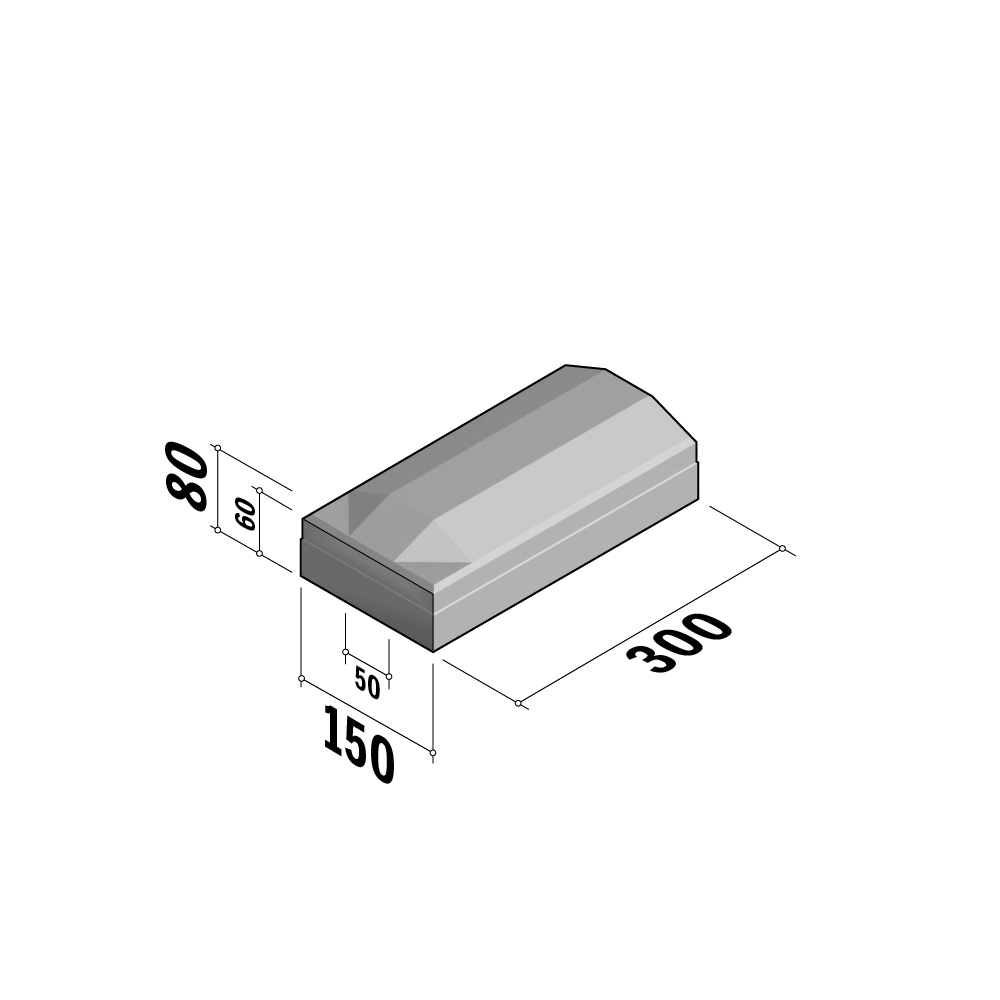

- SPECIFICATIONSegregator 50-150 (Delineator) | 50-150x80 | Straight | L-300 | End | Splay | SQSKU: ATK-SEG-002-9501
- Size:50-150(w) x 80(d) x 300(l)
- Length (mm) X-axis:300
- Width (mm) Y-axis:150
- Depth (mm) Z-axis:80
- Weight Per Unit:7kg
- Manufacturing Standard:BS EN 1340:2003
- Density:2350 kg/m³
- GWP (total) kgCO2e:0.75 kgCO2e/unit
- Reference Code:SCHEIDINGSBANDEN-5-15x8xL30-VL-EIND
- Type:Straight
- End Style:SQ
- Profile:50-150x80
- Position:End
- Face:Splay
- Face Angle:21.80140949
Specification & technical data aligns with our most recent testing, but is indicative and should be treated as such. Some images are computer renders, and all are for illustrative purposes only, exact colours may vary.
Other Products in this family
COLOUR / MATERIAL / FINISH
Concrete : Standard Wet Cast
Standard wet cast concrete colour or dyed.
Kellen : Lavaro
With a 70% natural aggregate surface in slightly coarser grain size. The top layer is water washed during production to reveal the varied colour of the aggregate form and thereby provides a market unique stone realistic surface.
Kellen : Optiflex
Washed top layer with highly reflective natural stone.
