The Nantes chair model was designed based on a contemporary interpretation of furniture archetypes and the structural and formal possibilities of Escofet’s UHPC-Slimconcrete. A tensioned membrane, resolved with the lowest possible thickness and inserted into an independent, self-stabilising metal structure.
Inspired by the design of mass-produced, low-cost seats with metal structures and a tensioned fabric, we associated the characteristics of the behaviour of this material and the shapes it generates with the possibilities offered by UHPC-Slimconcrete in the site furnishings field.
The Nantes chair is reminiscent of mass-produced textile furniture. Fabrics hung on lightweight metal structures, sometimes folded, with the structure and membrane being completely independent. The lightweight nature of the UHPC-Slimconcrete products makes them easy to transport and reduces energy consumption in their fabrication. Their 100% recyclable material composition optimises their life cycle.
The bench is made from a single piece of UHPC-Slimconcrete. Solid machined, folded stainless steel profile structure. The Nantes chair is installed on the paving, anchored with threaded rods fastened with resin. In the case of a detachable installation, the anchorage is executed with through bolts and expansion plugs.
Colour-waterproofed UHPC Concrete Stainless steel AISI 316L.
Product Enquiry
Please click the cloud icon in the bottom left to download your BIM file.

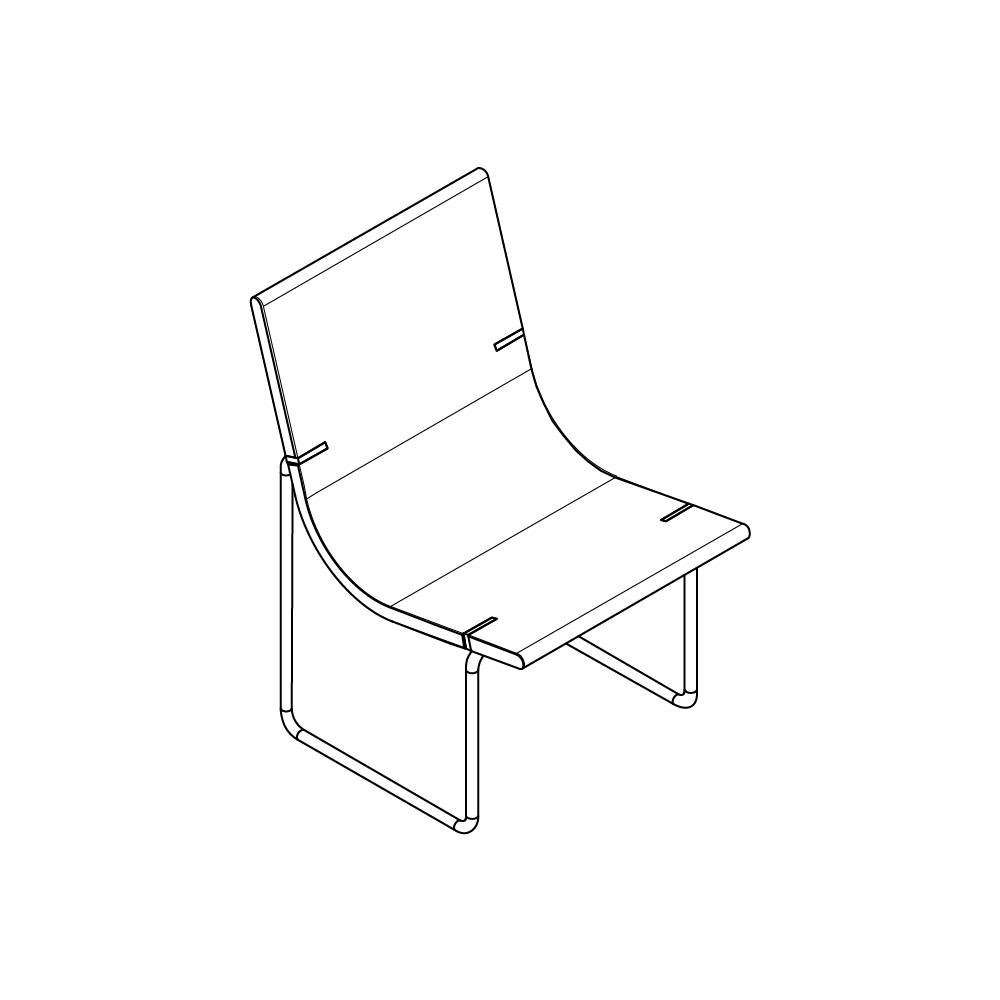

- SPECIFICATIONNantes | Chair | 55SKU: ESC-ULI-NAN-410
- Size:550(l) x 660(w) x 880(h)
- Length (mm) X-axis:550
- Width (mm) Y-axis:660
- Height (mm) Z-axis:880
- Seat Height (mm) Z-axis:880
- Weight Per Unit:48 kg
Specification & technical data aligns with our most recent testing, but is indicative and should be treated as such. Some images are computer renders, and all are for illustrative purposes only, exact colours may vary.

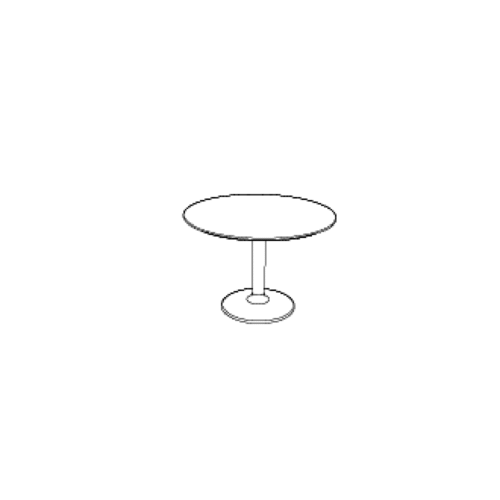

Other Products in this family

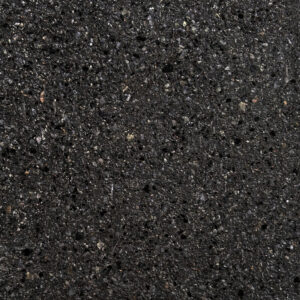

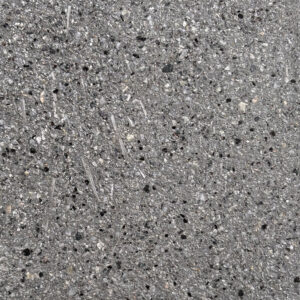

COLOUR / MATERIAL / FINISH
Concrete : UHPC
Ultra high performance concrete with an extra compacted and sleek appearance.
