130-150x250 VB | Entry Platform
Product Enquiry
Please click the cloud icon in the bottom left to download your BIM file.
- SPECIFICATIONHighway 130-150x250 VB | 130-150x250 VB | Entry Platform | L-750 | Return | Left | Half-Battered | VBSKU: ATK-HWA-006-5585

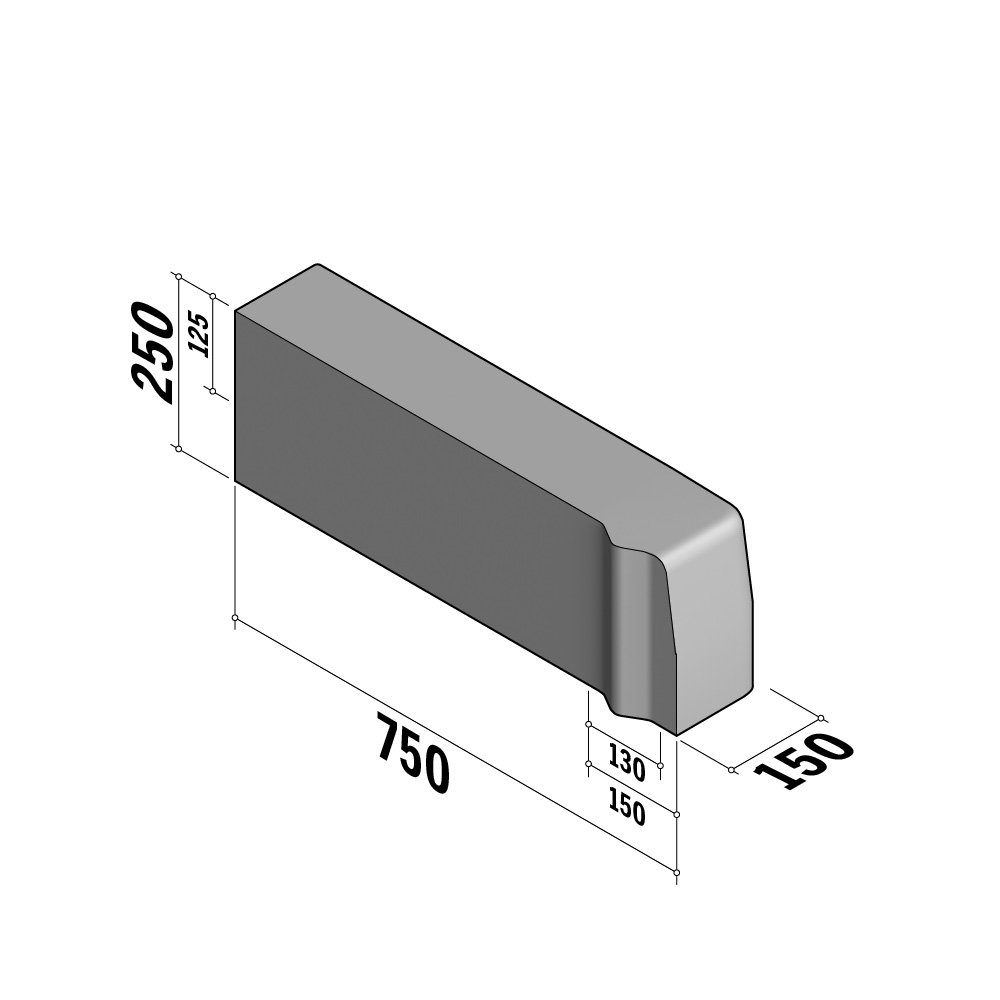

- Size:150(w) x 250(d) x 750(l)
- Length (mm) X-axis:750
- Width (mm) Y-axis:150
- Depth (mm) Z-axis:250
- Weight Per Unit:63.5kg
- Manufacturing Standard:BS EN 1340:2003
- GWP (total) kgCO2e:6.77 kgCO2e/unit
- Reference Code:INRITPERRONBANDEN-13-15x25xL75-VB-LINKS
- Type:Entry Platform Return
- End Style:VB
- Profile:130-150x250
- Position:Left
- Face:Half-Battered
- Face Angle:80.90972308
Downloads
Specification & technical data aligns with our most recent testing, but is indicative and should be treated as such. Some images are computer renders, and all are for illustrative purposes only, exact colours may vary.
Other Products in this family
COLOUR / MATERIAL / FINISH
Concrete : Standard Wet Cast
Standard wet cast concrete colour or dyed.
Kellen : Lavaro
With a 70% natural aggregate surface in slightly coarser grain size. The top layer is water washed during production to reveal the varied colour of the aggregate form and thereby provides a market unique stone realistic surface.
Kellen : Metallo
Metallo offers a whole new dimension to creating new and exciting areas of hard landscaping with concrete products that incorporate a metallic appearance.
Kellen : Optiflex
Washed top layer with highly reflective natural stone.
