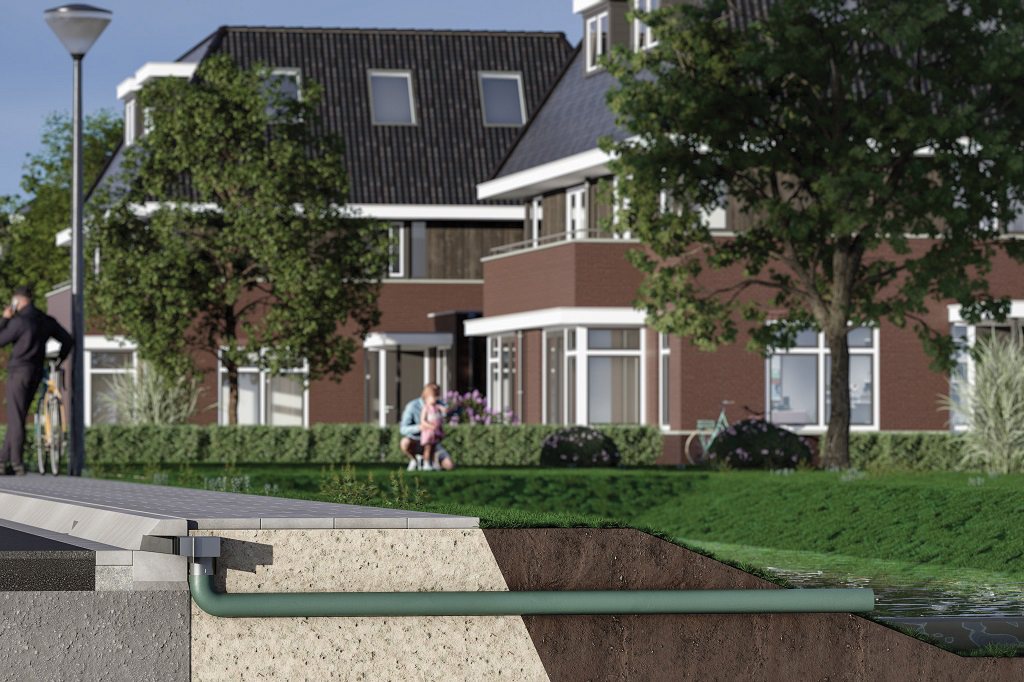

Design to work with any of the Drainage Slot kerbs, this stainless steel unit allows the connection of 100mm diameter pipe to the back of the kerb. This means passive drainage can be directed further away from the kerbline towards features such as swales.
Product Enquiry
Please click the cloud icon in the bottom left to download your BIM file.
- SPECIFICATIONDrainage Slot | Slot 60-80x250 | Connector | L-290 | Stainless | SQSKU: ATK-DRN-001-6863
- Size:80(w) x 250(d) x 290(l)
- Length (mm) X-axis:290
- Width (mm) Y-axis:80
- Depth (mm) Z-axis:250
- Weight Per Unit:1kg
- Manufacturing Standard:BS EN 1340:2003
- GWP (total) kgCO2e:0.11 kgCO2e/unit
- Reference Code:WADI_CONNECT-Ø-100-MM-6-8x25xL29-SQ-RVS
- Type:Connector
- End Style:SQ
- Profile:60-80x250
- Face:Stainless
- Face Angle:80.90972308
Downloads
Specification & technical data aligns with our most recent testing, but is indicative and should be treated as such. Some images are computer renders, and all are for illustrative purposes only, exact colours may vary.
