Double XL Liquid Tight

Stabilo-W Connector Reinforced

Variants:

C/M/F:

Galvanized steel coupling edge (edge strip). Matching coupling material available in the form of wedges, crosses, and T-pieces.

VOSB load class 600+
Axle Loads: 25 tonnes
Forklift (solid tires:) 14.5 tonnes
Forklift (pneumatic tires): 14.5 tonnes
Point loads: 10.5 tonnes

Product Enquiry

Name
First Last
Company name
Email
Phone
Address
Street Address Address Line 2 City County / State / Region ZIP / Postal Code Country
Comments

Please click the cloud icon in the bottom left to download your BIM file.

SPECIFICATION
Double XL Liquid Tight | Stabilo-W Connector Reinforced | 1995x1495x180SKU: KEL-SLA-DXT-031C/M/F: Supplied by Hardscape Products LTD

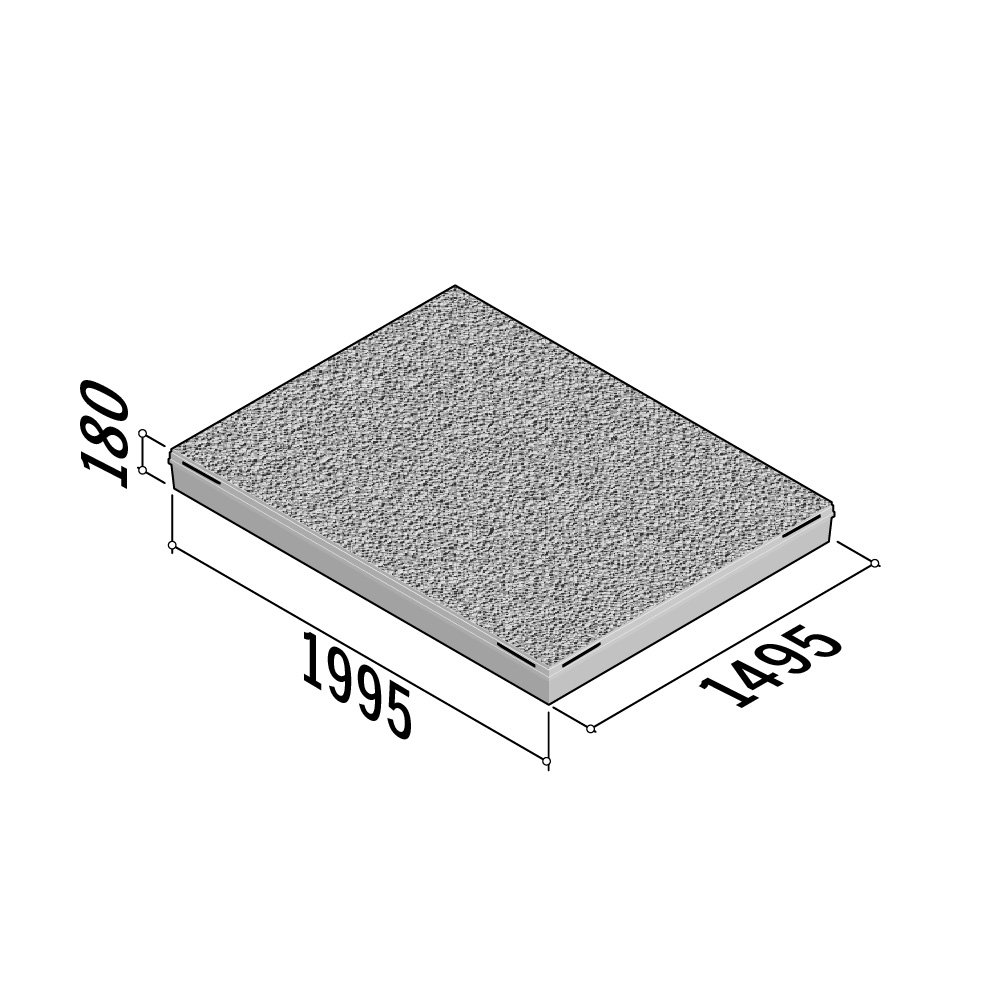

Size:1995(w) x 1495(l) x 180(d)
Length (mm) X-axis:1495
Width (mm) Y-axis:1995
Depth (mm) Z-axis:180
Weight Per Unit:1337kg
Manufacturing Standard:BS EN 1338:2003
Density:2350 kg/m3
GWP (total) kgCO2e:142.46 kgCO2e/unit
Reference Code:STABILO-W® KOPPELPLAAT CONSTRUCTIEF-199.5x149.5x18
Fitted With:Without lifting tubes, installation via vacuum lifting only. Top & bottom structurally reinforced.
Edge Style:Galvanized steel coupling edge (edge strip)

Double XL Liquid Tight | Stabilo-W Connector Reinforced | 1995x1495x180

Downloads

Kellen Maintenance Guide

Specification & technical data aligns with our most recent testing, but is indicative and should be treated as such. Some images are computer renders, and all are for illustrative purposes only, exact colours may vary.
