Civils & Highways
Traffic Management / Humps & Plateaus

Traffic Hump 30mph
3000 Sinusoidal 80

Enquire about this product

Product Enquiry

Please click the cloud icon in the bottom left to download your BIM file.

  • SPECIFICATION
    Traffic Hump 30mph | 3000 Sinusoidal 80 | 160-240x3000 | L-1000 | LeftSKU: TMA-HPL-TH3-002
  • Size:1000(l) x 160-240(w) x 3000(d)
  • Length (mm) X-axis:1000
  • Width (mm) Y-axis:240
  • Depth (mm) Z-axis:3000
  • Weight Per Unit:1440kg
  • Manufacturing Standard:BS EN 1340:2003
  • Density:2350 kg/m3
  • GWP (total) kgCO2e:153.44 kgCO2e/unit
  • Reference Code:VERKEERSDREMPELS 300 SINUS 8 CM-16-24x300xL100-Left
  • Position:Left

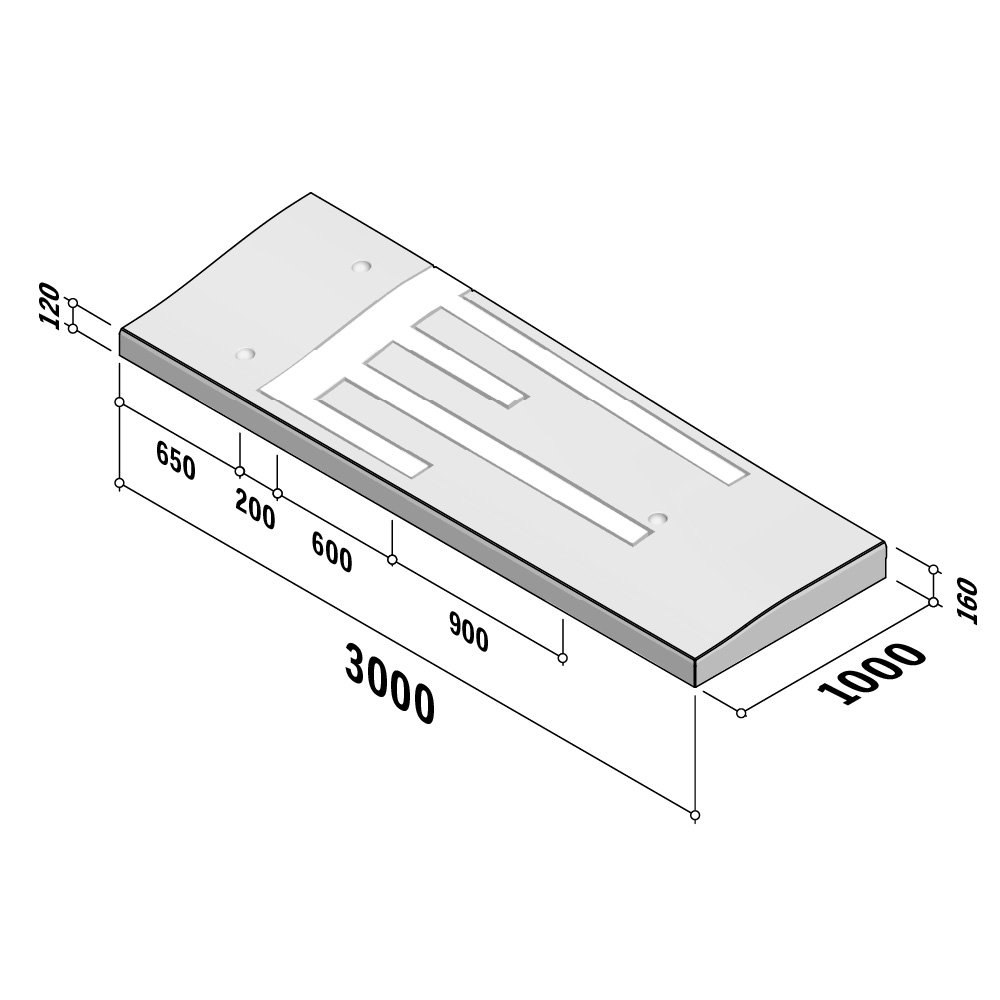

Traffic Hump 30mph | 3000 Sinusoidal 80 | 160-240x3000 | L-1000 | Left

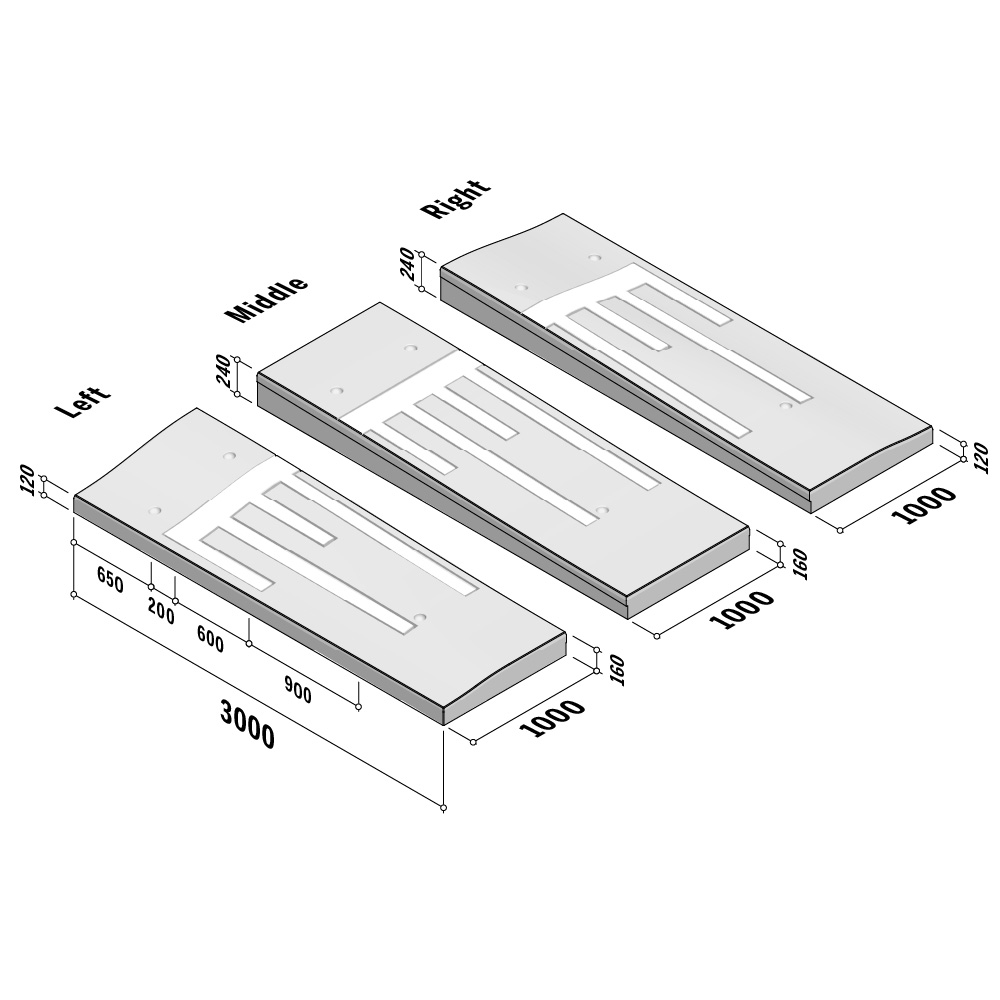

Traffic Hump 30mph | 3000 Sinusoidal 80 | 160-240x3000 | L-1000 | Left - Image 2

Downloads

Traffic Hump 30mph 3000 Sinusoidal 80 160-240x3000 L-1000 Left Datasheet

Specification & technical data aligns with our most recent testing, but is indicative and should be treated as such. Some images are computer renders, and all are for illustrative purposes only, exact colours may vary.

COLOUR / MATERIAL / FINISH

Concrete : ZVB

Self-compacting standard concrete colour + dyed or coated, with a fine texture.

Kellen : Lavaro

With a 75% natural aggregate surface in a slightly coarse grain size. The top layer is water washed during production to reveal the stone detail.
