Traffic Hump 20mph
1750 Sinusoidal 80 Block Pattern

Enquire about this product

Product Enquiry

Please click the cloud icon in the bottom left to download your BIM file.

  • SPECIFICATION

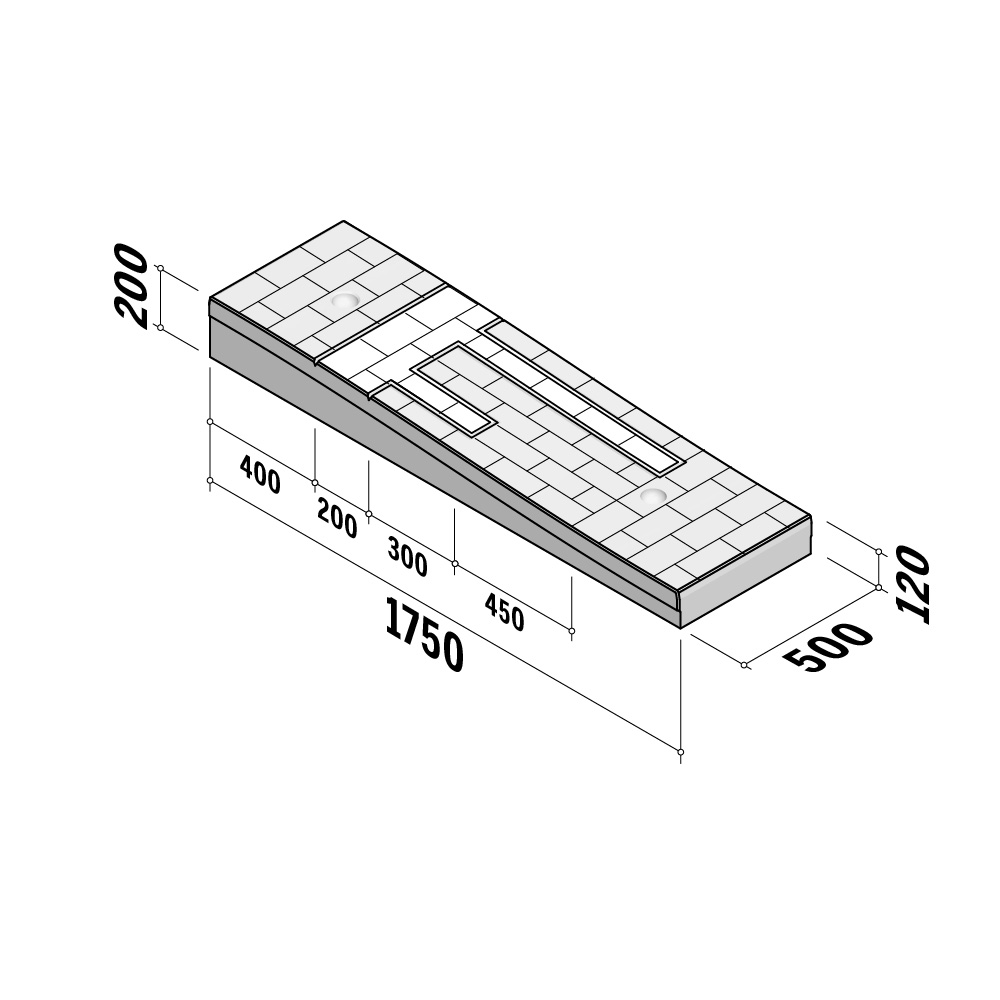

    Traffic Hump 20mph | 1750 Sinusoidal 80 Block Pattern | 120-200x1750 | L-500 | MiddleSKU: TMA-HPL-TH2-003
  • Size:500(l) x 120-200(w) x 1750(d)
  • Length (mm) X-axis:500
  • Width (mm) Y-axis:120-200
  • Depth (mm) Z-axis:1750
  • Weight Per Unit:330kg
  • Manufacturing Standard:BS EN 1340:2003
  • Density:2350 kg/m3
  • GWP (total) kgCO2e:35.16 kgCO2e/unit
  • Reference Code:VERKEERSDREMPELS 175 SINUS 8 CM MET STRAATSTEENMOTIEF-120-200x1750xL500-Middle
  • Position:Middle
Traffic Hump 20mph | 1750 Sinusoidal 80 Block Pattern | 120-200x1750 | L-500 | Middle

Specification & technical data aligns with our most recent testing, but is indicative and should be treated as such. Some images are computer renders, and all are for illustrative purposes only, exact colours may vary.

Other Products in this family

Traffic Hump 20mph | 1750 Sinusoidal 80 | 120-200x1750 | L-1000

1750 Sinusoidal 80
(2 variants)

Traffic Hump 20mph | 2400 Sinusoidal 120 | 120-240x2400 | L-1000 | Left

2400 Sinusoidal 120
(4 variants)

COLOUR / MATERIAL / FINISH

Concrete : ZVB

Self-compacting standard concrete colour + dyed or coated, with a fine texture.

Kellen : Lavaro

With a 70% natural aggregate surface in slightly coarser grain size. The top layer is water washed during production to reveal the varied colour of the aggregate form and thereby provides a market unique stone realistic surface.

  • Zwart 100
    Kellen

    Zwart 100

    Lavaro View Products
    Black
