SPECIFICATION
Segregator 115-345 | 115-345x200 | Straight | L-1000 | End | Splay | SQSKU: ATK-SEG-006-6709C/M/F: Supplied by Hardscape Products LTD

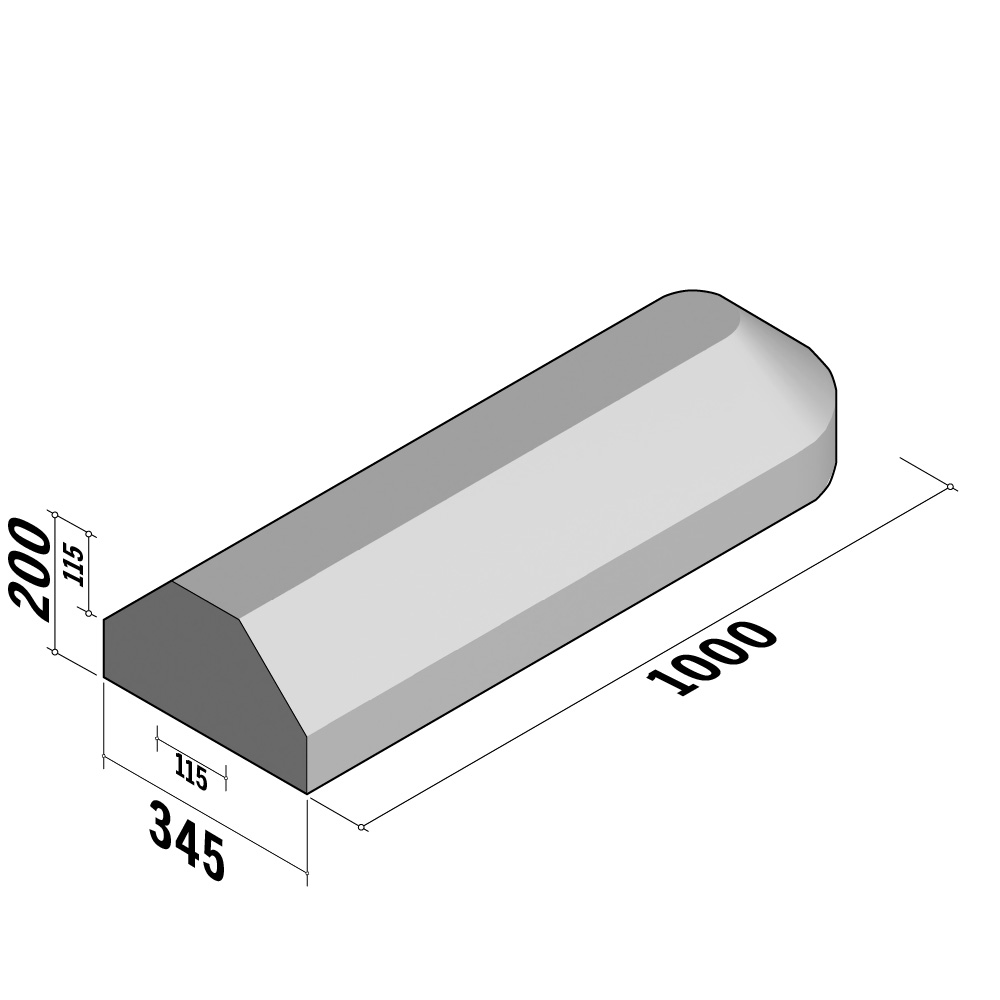

Size:345(w) x 200(d) x 1000(l)
Length (mm) X-axis:1000
Width (mm) Y-axis:345
Depth (mm) Z-axis:200
Weight Per Unit:131kg
Manufacturing Standard:BS EN 1340:2003
GWP (total) kgCO2e:13.96 kgCO2e/unit
Reference Code:SCHEIDINGSBANDEN-11.5-34.5x20xL100-SQ-EIND
Type:Straight
End Style:SQ
Profile:115-345x200
Position:End
Face:Splay
Face Angle:45

Segregator 115-345 | 115-345x200 | Straight | L-1000 | End | Splay | SQ

Downloads

Active Travel Kerbs Brochure

Specification & technical data aligns with our most recent testing, but is indicative and should be treated as such. Some images are computer renders, and all are for illustrative purposes only, exact colours may vary.
