Manufactured Paving
Kellen / Special Flags

Rainwater Flags
Outlet Edge 300x300

Enquire about this product

Product Enquiry

Please click the cloud icon in the bottom left to download your BIM file.

  • SPECIFICATION

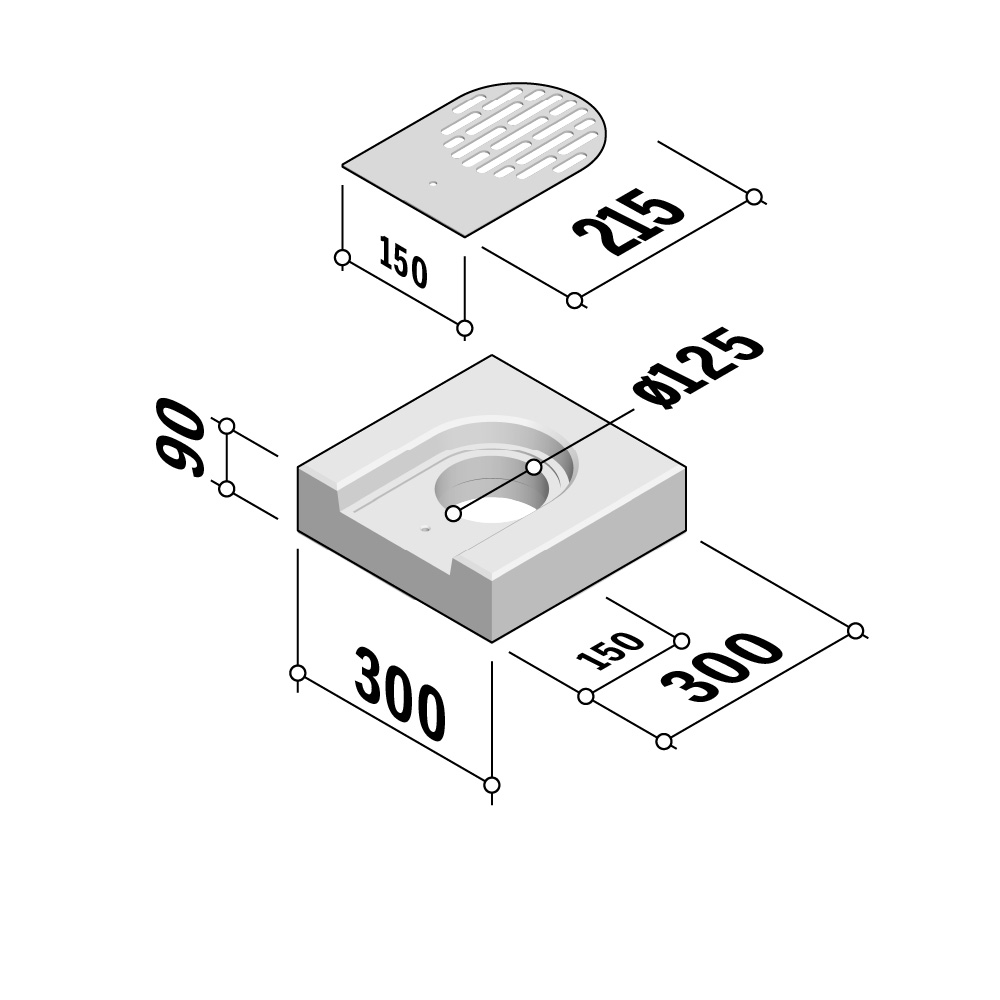

    Rainwater Flags | Outlet Edge 300x300 | 90mm Thick | Stainless Steel GrilleSKU: KEL-FLA-RAI-005
  • Size:300(w) x 300(l) x 90(d)
  • Length (mm) X-axis:300
  • Width (mm) Y-axis:300
  • Depth (mm) Z-axis:90
  • Weight Per Unit:16kg
  • Manufacturing Standard:BS EN 1338:2003
  • Density:2350 kg/m3
  • GWP (total) kgCO2e:1.7 kgCO2e/unit
  • Reference Code:WELL-O-EDGE-30x30x9-RVS rooster
  • Fitted With:Stainless Steel Grille
  • Edge Style:GF
Rainwater Flags | Outlet Edge 300x300 | 90mm Thick | Stainless Steel Grille

Downloads

Kellen Maintenance Guide

Specification & technical data aligns with our most recent testing, but is indicative and should be treated as such. Some images are computer renders, and all are for illustrative purposes only, exact colours may vary.

Other Products in this family

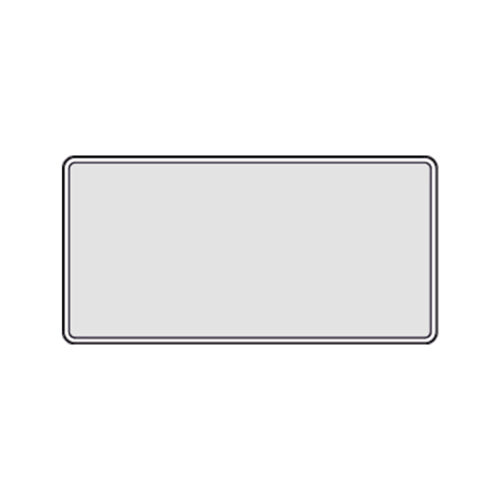

Rainwater Flags | Drainage 150x300 | 70mm Thick | Type 15a

Drainage 150x300
(3 variants)

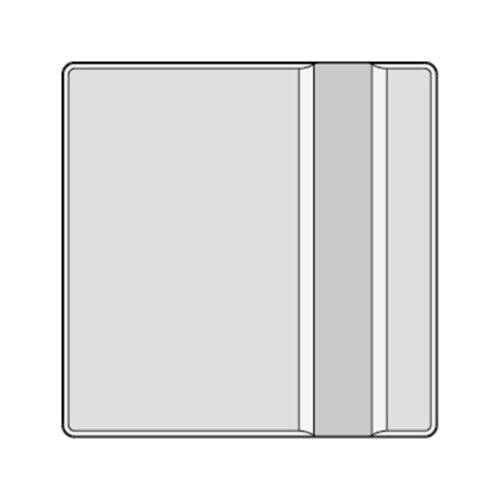

Rainwater Flags | Drainage 300x300 | 70mm Thick | Type 1

Drainage 300x300
(7 variants)

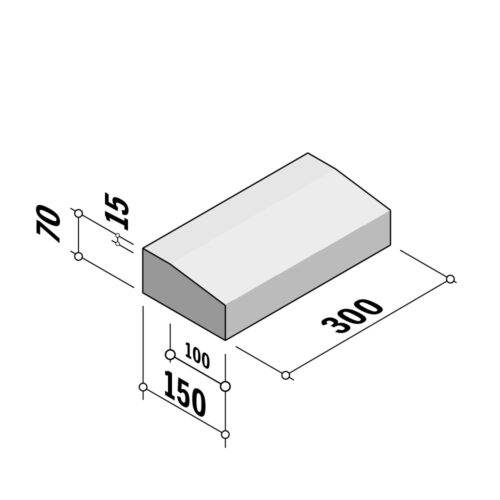

Rainwater Flags | Gutter Slope 150x300 | 70mm Thick

Gutter Slope 150x300

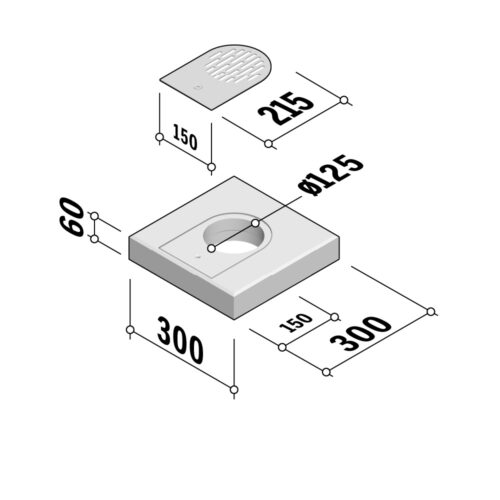

Rainwater Flags | Outlet Flush 300x300 | 60mm Thick | Stainless Steel Grille

Outlet Flush 300x300

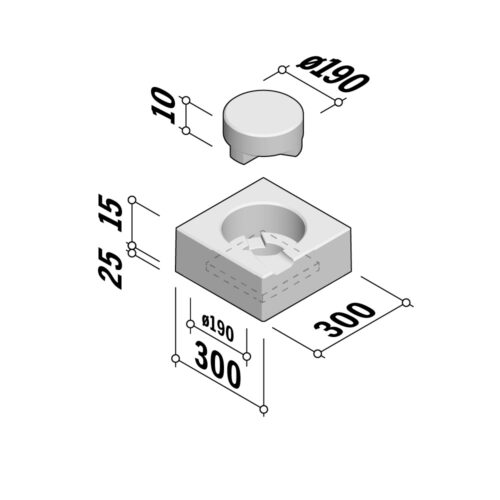

Rainwater Flags | Outlet Well 300x300 | 150mm Thick | 2-Piece Gulley Head

Outlet Well 300x300

COLOUR / MATERIAL / FINISH

Concrete : ZVB

Self-compacting standard concrete colour + dyed or coated, with a fine texture.

  • Lichtgrijs
    Concrete

    Lichtgrijs

    ZVB View Products
    Grey
