Extension units allow the continuation of the Planum Tree Surrounds to create linear shapes and drainage areas between tree pits.
This is an extension unit for the Planum Tree Surround | M. Click here to view
For installation, the Planum tree rings are fitted with 4 M12 screw sleeves on the outside.
Product Enquiry
Please click the cloud icon in the bottom left to download your BIM file.

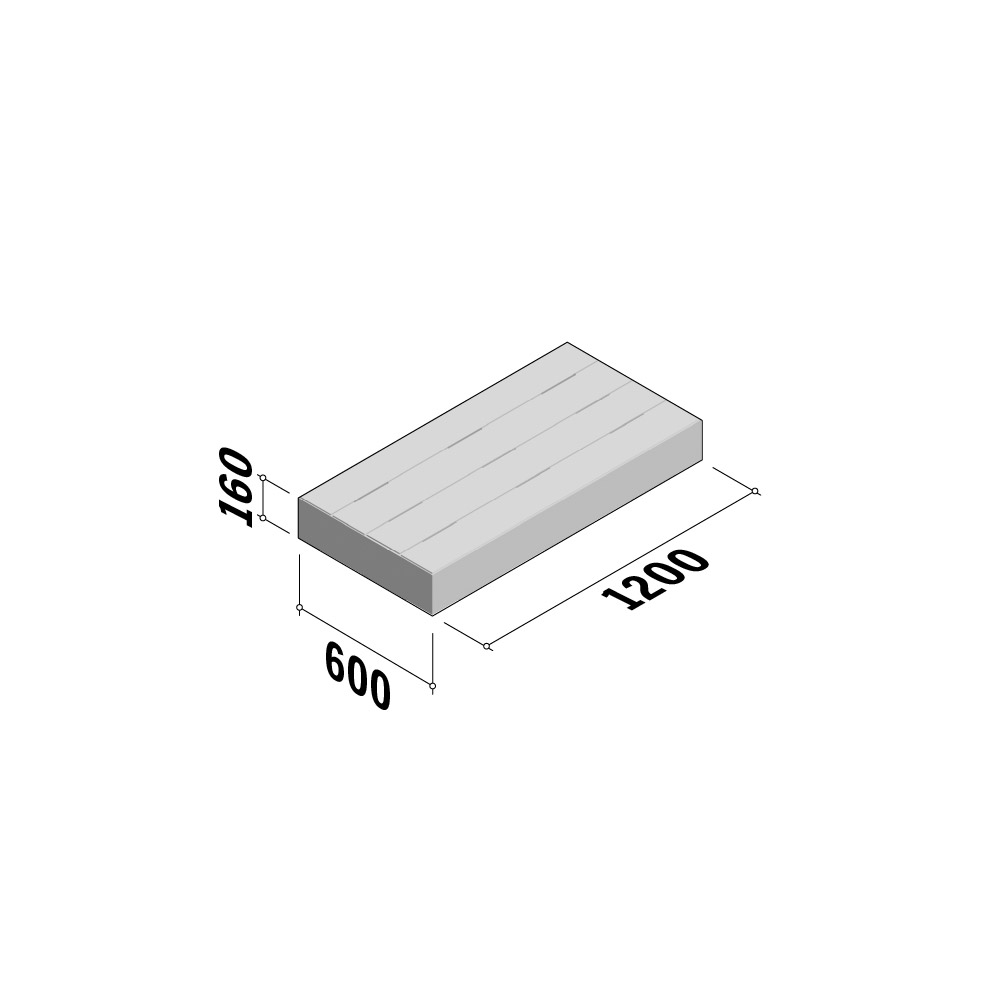

- SPECIFICATIONPlanum Tree Surround | Extension | M | 1200x600x160SKU: ELE-TPR-PTS-007
- Size:1200(w) x 160(h) x 600(l)
- Length (mm) X-axis:600
- Width (mm) Y-axis:1200
- Height (mm) Z-axis:160
- Weight Per Unit:243kg
- Manufacturing Standard:BS EN 1340:2003
- Density:2350 kg/m3
- GWP (total) kgCO2e:25.89 kgCO2e/unit
- Reference Code:PLANUM VERLENGPLATEN-120x60x16 M
- Type:Extension
- Fitted With:M
Specification & technical data aligns with our most recent testing, but is indicative and should be treated as such. Some images are computer renders, and all are for illustrative purposes only, exact colours may vary.
Other Products in this family
COLOUR / MATERIAL / FINISH
Concrete : ZVB
Self-compacting standard concrete colour + dyed or coated, with a fine texture.
