Passby
H-Profile 165x200

Enquire about this product

Product Enquiry

Please click the cloud icon in the bottom left to download your BIM file.

  • SPECIFICATION
    Passby | H-Profile 165x200 | 100mm ThickSKU: KEL-DBL-PBL-001

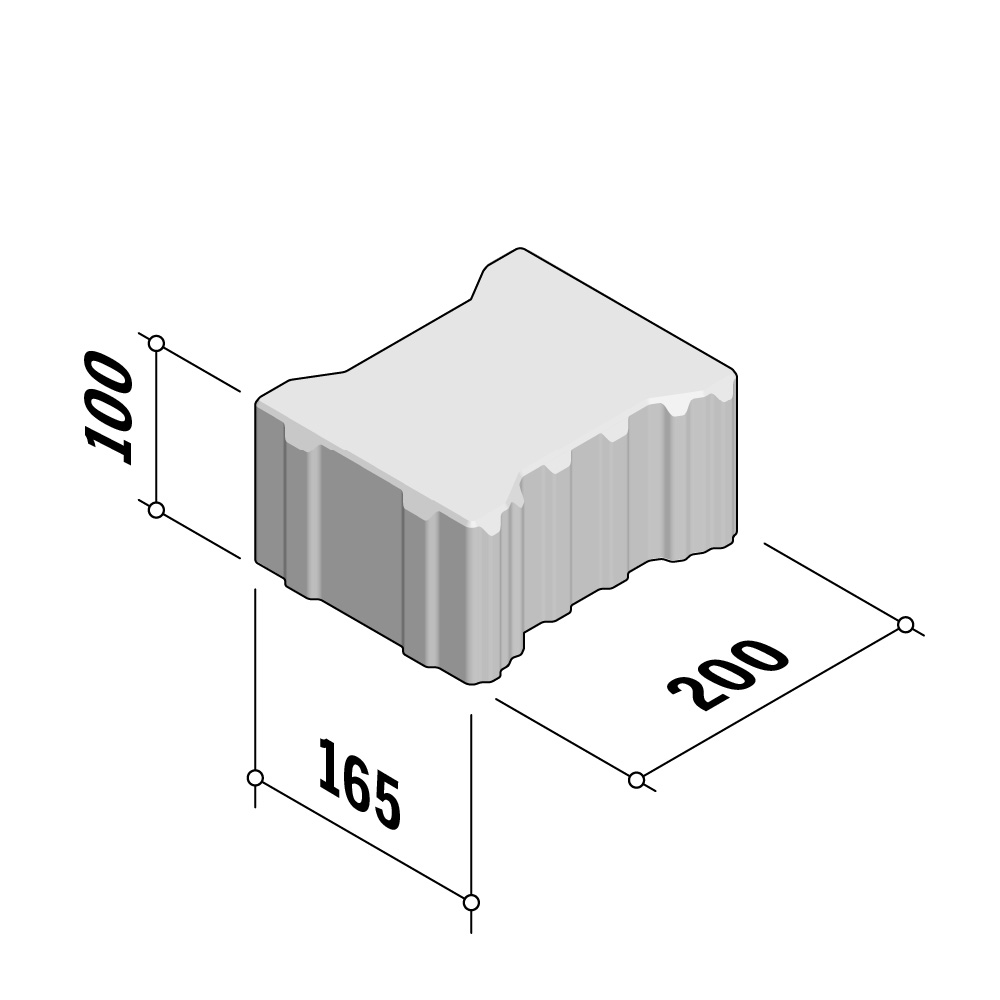

  • Size:165(w) x 200(l) x 100(d)
  • Length (mm) X-axis:200
  • Width (mm) Y-axis:165
  • Depth (mm) Z-axis:100
  • Weight Per Unit:5.44kg
  • Quantity per m2:35.7
  • Manufacturing Standard:BS EN 1339:2003
  • Density:2350 kg/m3
  • GWP (total) kgCO2e:0.58 kgCO2e/unit
  • Reference Code:WATERPASSERENDE H-PROFIEL STENEN-20x16.5x10
  • Edge Style:NV
Passby | H-Profile 165x200 | 100mm Thick

Downloads

Kellen Maintenance Guide

Specification & technical data aligns with our most recent testing, but is indicative and should be treated as such. Some images are computer renders, and all are for illustrative purposes only, exact colours may vary.

COLOUR / MATERIAL / FINISH

Concrete : Standard

Standard concrete colour or dyed.
