Active Travel Kerbs / Highway / Highway 380-400

Highway 380-400x250

700x250 | Entry Kerb

Variants:

C/M/F:

Product Enquiry

Name
First Last
Company name
Email
Phone
Address
Street Address Address Line 2 City County / State / Region ZIP / Postal Code Country
Comments

Please click the cloud icon in the bottom left to download your BIM file.

SPECIFICATION

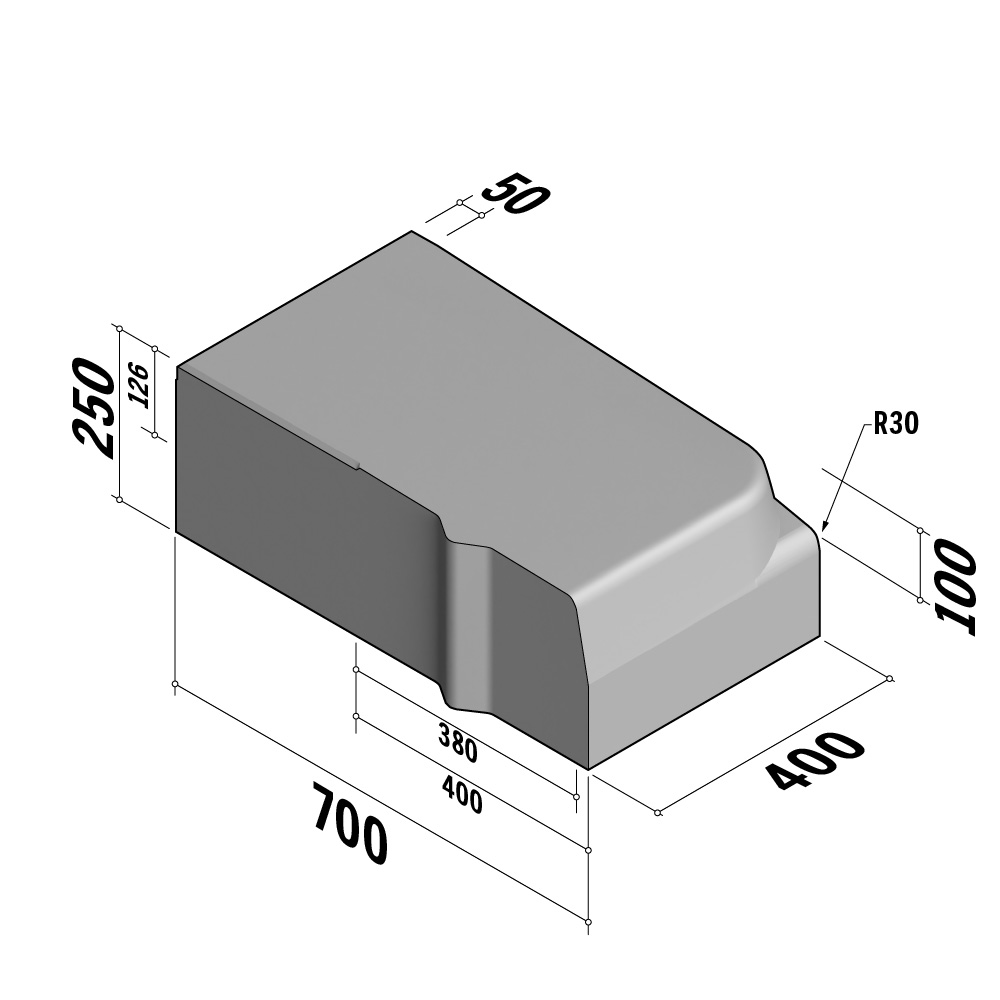

Highway 380-400x250 | 700x250 | Entry Kerb | L-400 | Left | Half-Battered | VBSKU: ATK-HWP-001-6426C/M/F: Supplied by Hardscape Products LTD
Size:700(w) x 250(d) x 400(l)
Length (mm) X-axis:400
Width (mm) Y-axis:700
Depth (mm) Z-axis:250
Weight Per Unit:160.4kg
Manufacturing Standard:BS EN 1340:2003
GWP (total) kgCO2e:17.09 kgCO2e/unit
Reference Code:INRITPERRONBANDEN-70x25xL40-VB-LINKS
Type:Entry Kerb
End Style:VB
Profile:700x250
Position:Left
Face:Half-Battered
Face Angle:80.98067757

Highway 380-400x250 | 700x250 | Entry Kerb | L-400 | Left | Half-Battered | VB

Highway 380-400x250 | 700x250 | Entry Kerb | L-400 | Left | Half-Battered | VB - Image 2

Downloads

Active Travel Kerbs Brochure

Specification & technical data aligns with our most recent testing, but is indicative and should be treated as such. Some images are computer renders, and all are for illustrative purposes only, exact colours may vary.

Other Products in this family

Highway 380-400x250 | 380-400x250 | Platform | L-1000 | Return | Left | Half-Battered | SQ

380-400x250 | Platform
(2 variants)

Highway 380-400x250 | 380-400x250 | Radius | L-1000 | External | 7m | Half-Battered | VB

380-400x250 | Radius
(7 variants)

Highway 380-400x250 | 380-400x250 | Return Corner | L-100 | Internal | 90° | Half-Battered | VB

380-400x250 | Return Corner
(2 variants)

Highway 380-400x250 | 380-400x250 | Return Radial | to 130-150x250 | Internal | 90° | 0.3m | Half-Battered | VB

380-400x250 | Return Radial
(3 variants)

380-400x250 | Straight

380-400x250 | Transition

COLOUR / MATERIAL / FINISH

Concrete : Standard Wet Cast

Standard wet cast concrete colour or dyed.

Concrete
Donkergrijs
Standard Wet Cast View Products
Grey
Concrete
Hardsteen 026
Standard Wet Cast View Products
Black, Blue
Concrete
Lichtgrijs
Standard Wet Cast View Products
Grey
Concrete
Zwart
Standard Wet Cast View Products
Black

Kellen : Lavaro

With a 70% natural aggregate surface in slightly coarser grain size. The top layer is water washed during production to reveal the varied colour of the aggregate form and thereby provides a market unique stone realistic surface.
