Active Travel Kerbs / Highway / Highway 180-200

Highway 180-200x200 HD

180-200x200 HD | Entry Platform

Variants:

C/M/F:

Product Enquiry

Name
First Last
Company name
Email
Phone
Address
Street Address Address Line 2 City County / State / Region ZIP / Postal Code Country
Comments

Please click the cloud icon in the bottom left to download your BIM file.

SPECIFICATION
Highway 180-200x200 HD | 180-200x200 HD | Entry Platform | L-800 | Return | Left | Half-Battered | HDSKU: ATK-HWC-005-5785C/M/F: Supplied by Hardscape Products LTD

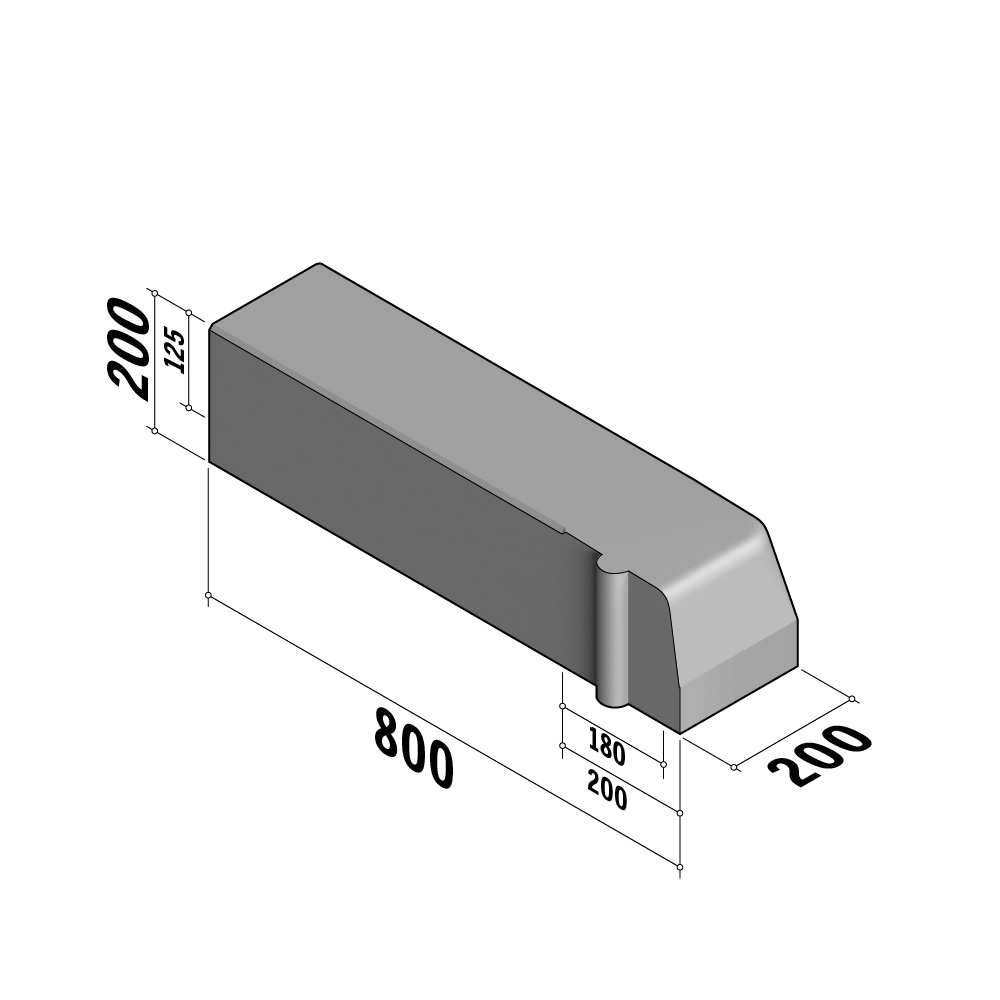

Size:200(w) x 200(d) x 800(l)
Length (mm) X-axis:800
Width (mm) Y-axis:200
Depth (mm) Z-axis:200
Weight Per Unit:71.44kg
Manufacturing Standard:BS EN 1340:2003
GWP (total) kgCO2e:7.61 kgCO2e/unit
Reference Code:INRITPERRONBANDEN-18-20x20xL80-HD-LINKS
Type:Entry Platform Return
End Style:HD
Profile:180-200x200
Position:Left
Face:Half-Battered
Face Angle:80.90972308

Highway 180-200x200 HD | 180-200x200 HD | Entry Platform | L-800 | Return | Left | Half-Battered | HD

Downloads

Active Travel Kerbs Brochure

Specification & technical data aligns with our most recent testing, but is indicative and should be treated as such. Some images are computer renders, and all are for illustrative purposes only, exact colours may vary.
