Active Travel Kerbs / Highway / Highway 130-150

Highway 130-150x300 VB

130-150x300 VB | Radius

Variants:

Product Enquiry

Name
First Last
Company name
Email
Phone
Address
Street Address Address Line 2 City County / State / Region ZIP / Postal Code Country
Comments

Please click the cloud icon in the bottom left to download your BIM file.

SPECIFICATION

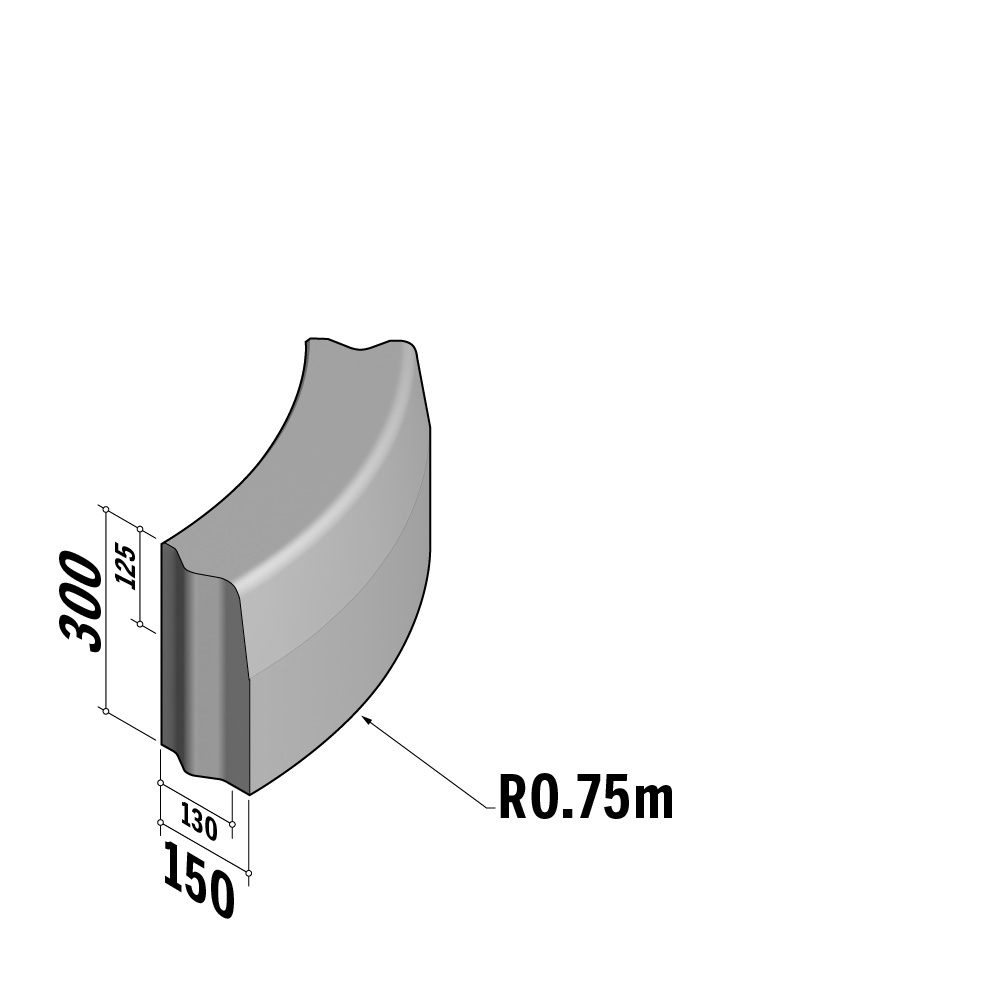

Highway 130-150x300 VB | 130-150x300 VB | Radius | L-590 | External | 0.75m | Half-Battered | VBSKU: ATK-HWA-007-5596Supplied by Hardscape Products LTD
Material:Concrete
Finish:Standard
Size:150(w) x 300(d) x 590(l)
Length (mm) X-axis:590
Width (mm) Y-axis:150
Depth (mm) Z-axis:300
Weight Per Unit:77.48kg
Manufacturing Standard:BS EN 1340:2003
GWP (total) kgCO2e:8.26 kgCO2e/unit
Reference Code:TROTTOIRBOCHTBANDEN-13-15x30xL59-0.75m-VB
Type:Radius External
End Style:VB
Profile:130-150x300
Face:Half-Battered
Face Angle:80.90972308
Radius:0.75m
Number Per 360:8

Highway 130-150x300 VB | 130-150x300 VB | Radius | L-590 | External | 0.75m | Half-Battered | VB

Downloads

Active Travel Kerbs Brochure

Specification & technical data aligns with our most recent testing, but is indicative and should be treated as such. Some images are computer renders, and all are for illustrative purposes only, exact colours may vary.
