Active Travel Kerbs / Highway / Highway 110-220

Highway 110-220 Entry

500x200x750 VB | Entry Kerb

Variants:

C/M/F:

Product Enquiry

Name
First Last
Company name
Email
Phone
Address
Street Address Address Line 2 City County / State / Region ZIP / Postal Code Country
Comments

Please click the cloud icon in the bottom left to download your BIM file.

SPECIFICATION

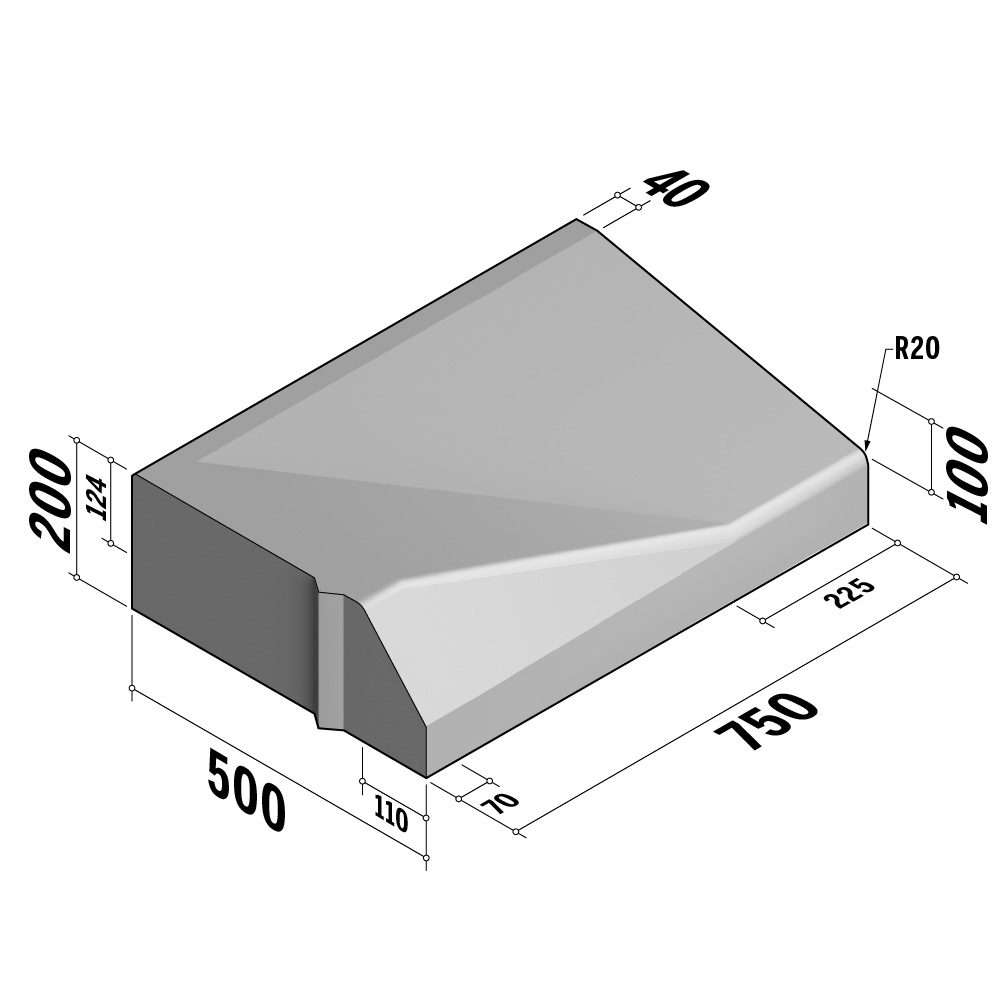

Highway 110-220 Entry | 500x200 | Entry Kerb | L-750 | Left | Splay | VBSQSKU: ATK-HWG-005-6272C/M/F: Supplied by Hardscape Products LTD
Size:500(w) x 200(d) x 750(l)
Length (mm) X-axis:750
Width (mm) Y-axis:500
Depth (mm) Z-axis:200
Weight Per Unit:148kg
Manufacturing Standard:BS EN 1340:2003
GWP (total) kgCO2e:15.77 kgCO2e/unit
Reference Code:INRITBANDEN-50x20xL75-VBSQ-LINKS
Type:Entry Kerb
End Style:VBSQ
Profile:500x200
Position:Left
Face:Splay
Face Angle:48.42387124
Slope Angle:12
Slope Gradient:1:4.6

Highway 110-220 Entry | 500x200 | Entry Kerb | L-750 | Left | Splay | VBSQ

Highway 110-220 Entry | 500x200 | Entry Kerb | L-750 | Left | Splay | VBSQ - Image 2

Downloads

Active Travel Kerbs Brochure

Specification & technical data aligns with our most recent testing, but is indicative and should be treated as such. Some images are computer renders, and all are for illustrative purposes only, exact colours may vary.

Other Products in this family

Highway 110-220 Entry | 600x200 | Entry Kerb | L-300 | Left | Splay | SQ

600x200x300 SQ | Entry Kerb
(3 variants)

COLOUR / MATERIAL / FINISH

Concrete : Standard

Standard concrete colour or dyed.

Concrete
Donkergrijs
Standard View Products
Grey
Concrete
Hardsteen 026
Standard View Products
Blue
Concrete
Lichtgrijs
Standard View Products
Grey
Concrete
Zwart
Standard View Products
Black

Kellen : Lavaro

With a 70% natural aggregate surface in slightly coarser grain size. The top layer is water washed during production to reveal the varied colour of the aggregate form and thereby provides a market unique stone realistic surface.
