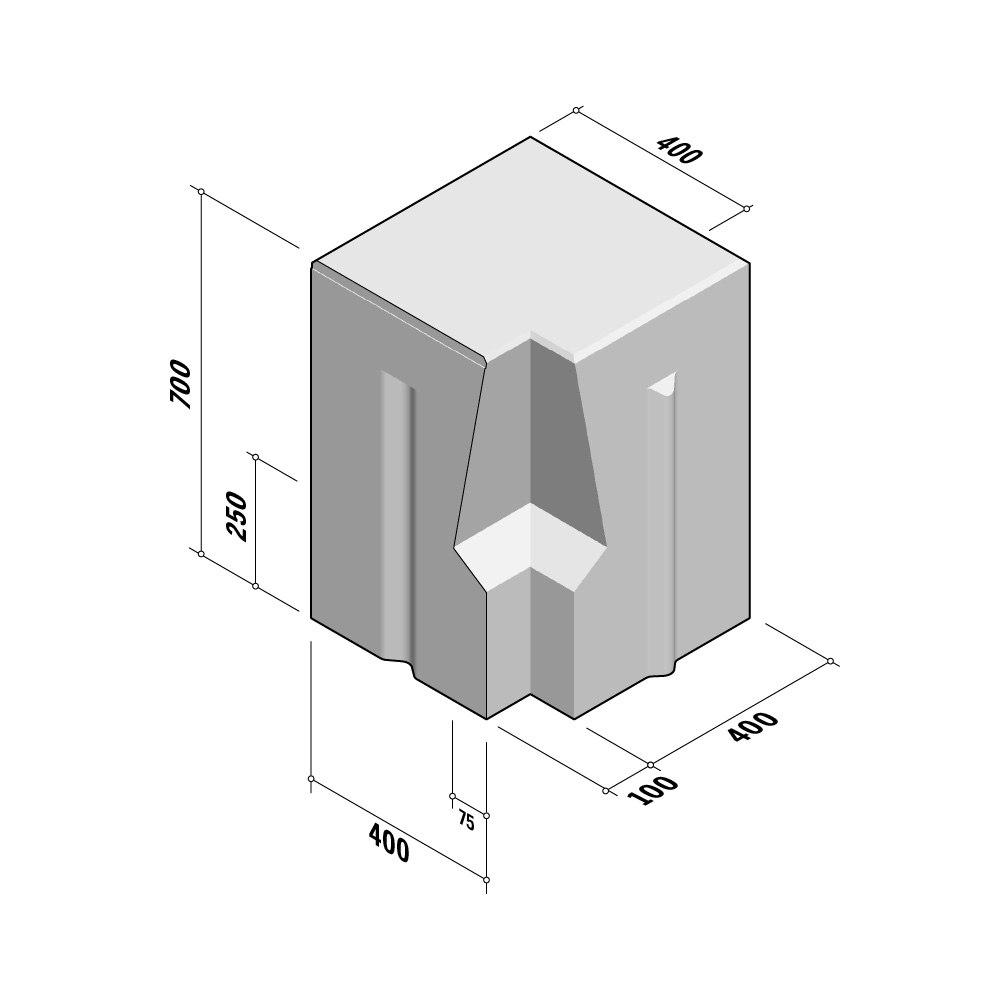

- SPECIFICATIONGrand Bastion | Return Internal | 400-320x700 | L100 | 90° | VVBSKU: ELE-SBE-GBA-012
- Size:400-320(w) x 700(h) x 100(l)
- Length (mm) X-axis:100
- Width (mm) Y-axis:400-320
- Height (mm) Z-axis:700
- Seat Height (mm) Z-axis:450
- Weight Per Unit:388kg
- Manufacturing Standard:BS EN 1340:2003
- Density:2350 kg/m3
- GWP (total) kgCO2e:41.34 kgCO2e/unit
- Reference Code:GRANDE BASTION HOEKSTUKKEN-40-32x70xL10-90°-VVB-inw
- Type:Return Internal
- End Style:VVB
- Profile:400-320x700
- Return Angle:90°
Specification & technical data aligns with our most recent testing, but is indicative and should be treated as such. Some images are computer renders, and all are for illustrative purposes only, exact colours may vary.
Other Products in this family
COLOUR / MATERIAL / FINISH
Concrete : ZVB
Self-compacting standard concrete colour + dyed or coated, with a fine texture.
Kellen : Lavaro
With a 70% natural aggregate surface in slightly coarser grain size. The top layer is water washed during production to reveal the varied colour of the aggregate form and thereby provides a market unique stone realistic surface.
