Drainwave XL is a combination of 8mm Drainjoint and a specially designed block that come together as a package to offer all the benefits of Drainjoint in a mechanically layable package.
Within each 44 piece layer on a pallet there are 12 Drainwave XL blocks with the Drainjoint infiltration material pre-fitted at the factory. This equals 2000 l/sec/ha of permeability.
Product Enquiry
Please click the cloud icon in the bottom left to download your BIM file.

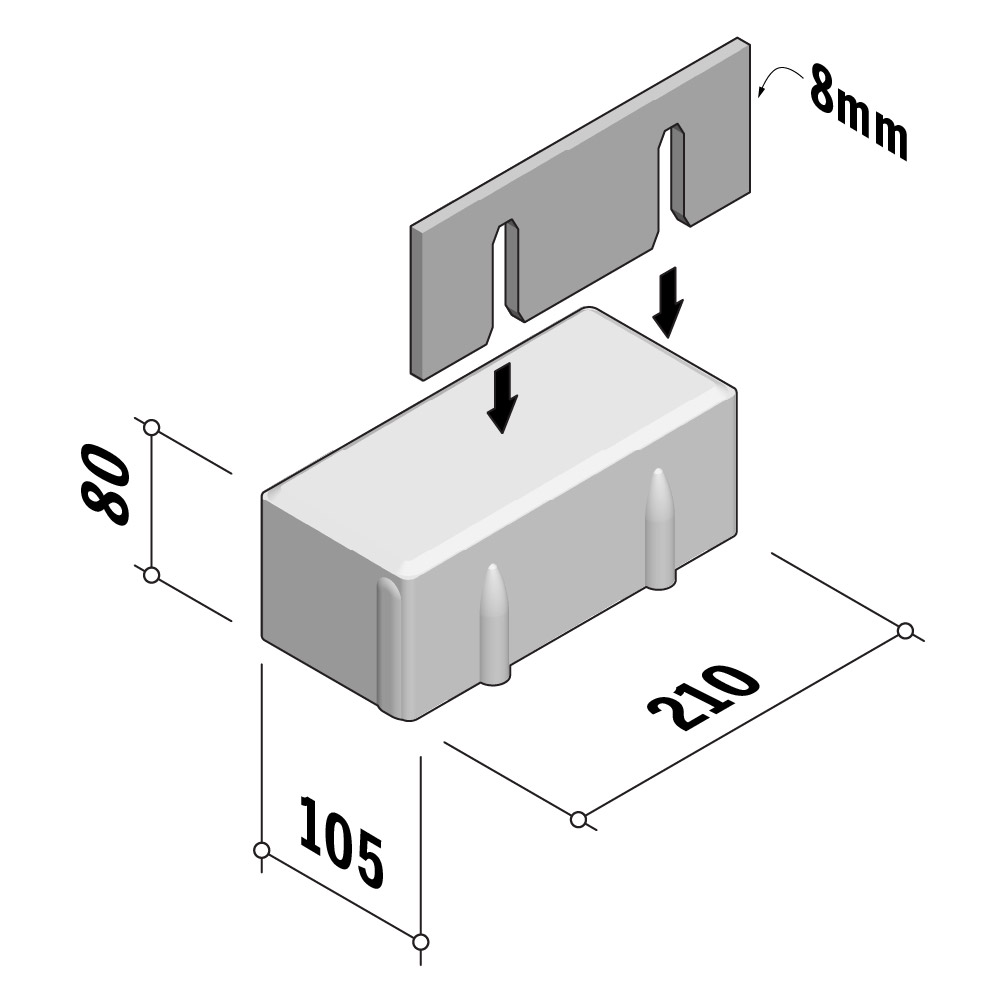

- SPECIFICATIONDrainwave XL | 105x210 | 80mm ThickSKU: KEL-DBL-DXL-001
- Size:105(w) x 210(l) x 80(d)
- Length (mm) X-axis:210
- Width (mm) Y-axis:105
- Depth (mm) Z-axis:80
- Weight Per Unit:3.99kg
- Quantity per m2:45
- Manufacturing Standard:BS EN 1339:2003
- Density:2350 kg/m3
- GWP (total) kgCO2e:0.43 kgCO2e/unit
- Reference Code:DRAINWAVEXL STENEN-21x10.5x8
- Edge Style:NV
Downloads
Specification & technical data aligns with our most recent testing, but is indicative and should be treated as such. Some images are computer renders, and all are for illustrative purposes only, exact colours may vary.
COLOUR / MATERIAL / FINISH
Concrete : Standard
Standard concrete colour or dyed.
Kellen : Breccia
This is an ultra refined architectural paving with a 100% pure aggregate non fading top layer to maximise colour fastness. The cultured surface is composed of a 4 aggregate size mix which provides the surface impact. The top layer is water washed during production to reveal the varied colour of the aggregate form and thereby provides a market unique stone realistic surface.
Kellen : Lavaro
With a 70% natural aggregate surface in slightly coarser grain size. The top layer is water washed during production to reveal the varied colour of the aggregate form and thereby provides a market unique stone realistic surface.
Kellen : Optiflex
Washed top layer with highly reflective natural stone.
Kellen : Silentio
Sound-reducing top layer of special cement-bonded natural stone fractions.
