Civils & Highways
Active Travel Kerbs / Drainage

Drainage Outflow
Outflow 600x250 | Straight

Enquire about this product

With a greater outflow capacity that normal gap kerbs, this kerb fits within the Highway 280-300 range of kerbs to allow you to seamlessly create any shape of SuDs you require.

Product Enquiry

Please click the cloud icon in the bottom left to download your BIM file.

  • SPECIFICATION
    Drainage Outflow | Outflow 600x250 | Straight | L-1000 | Half-Battered | SQSKU: ATK-DRN-003-6870
  • Size:600(w) x 250(d) x 1000(l)
  • Length (mm) X-axis:1000
  • Width (mm) Y-axis:600
  • Depth (mm) Z-axis:250
  • Weight Per Unit:204kg
  • Manufacturing Standard:BS EN 1340:2003
  • GWP (total) kgCO2e:21.74 kgCO2e/unit
  • Reference Code:UITSTROOMBAND-60x25xL100-SQ
  • Type:Straight
  • End Style:SQ
  • Profile:600x250
  • Face:Half-Battered
  • Face Angle:80.83765295

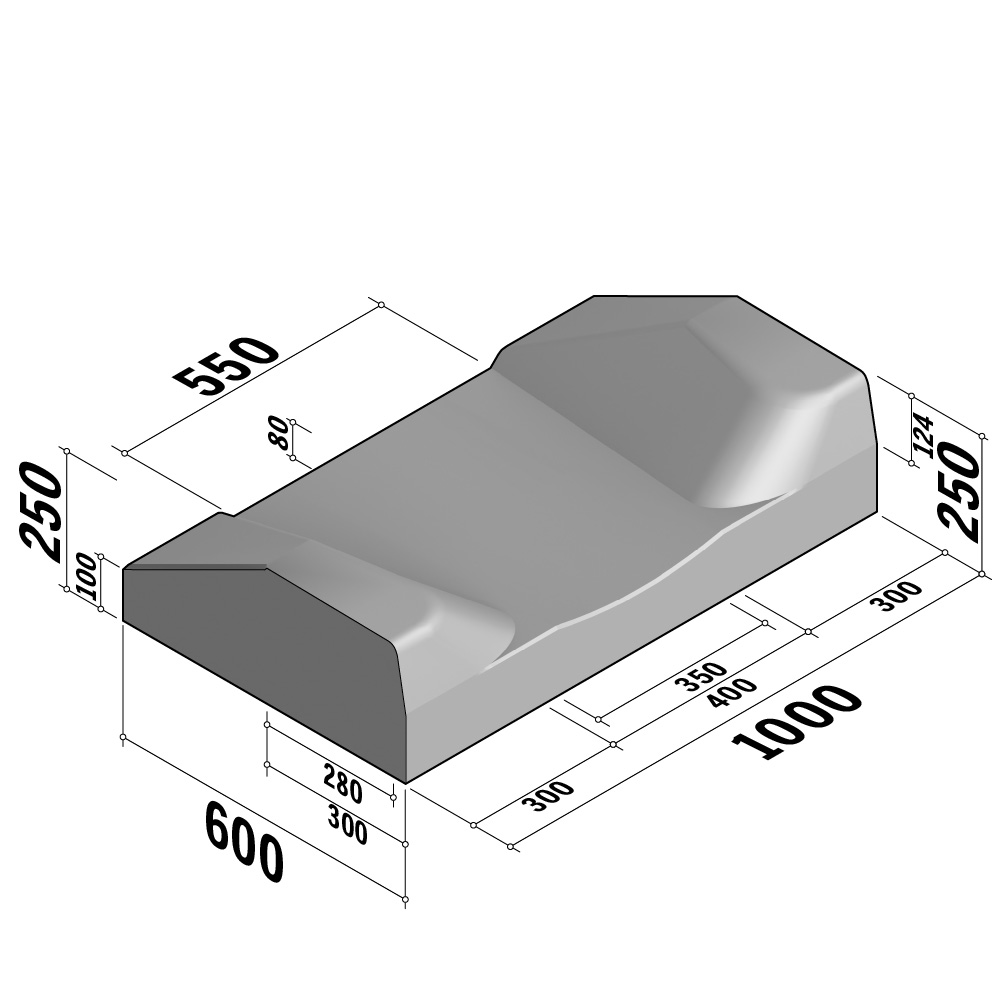

Drainage Outflow | Outflow 600x250 | Straight | L-1000 | Half-Battered | SQ

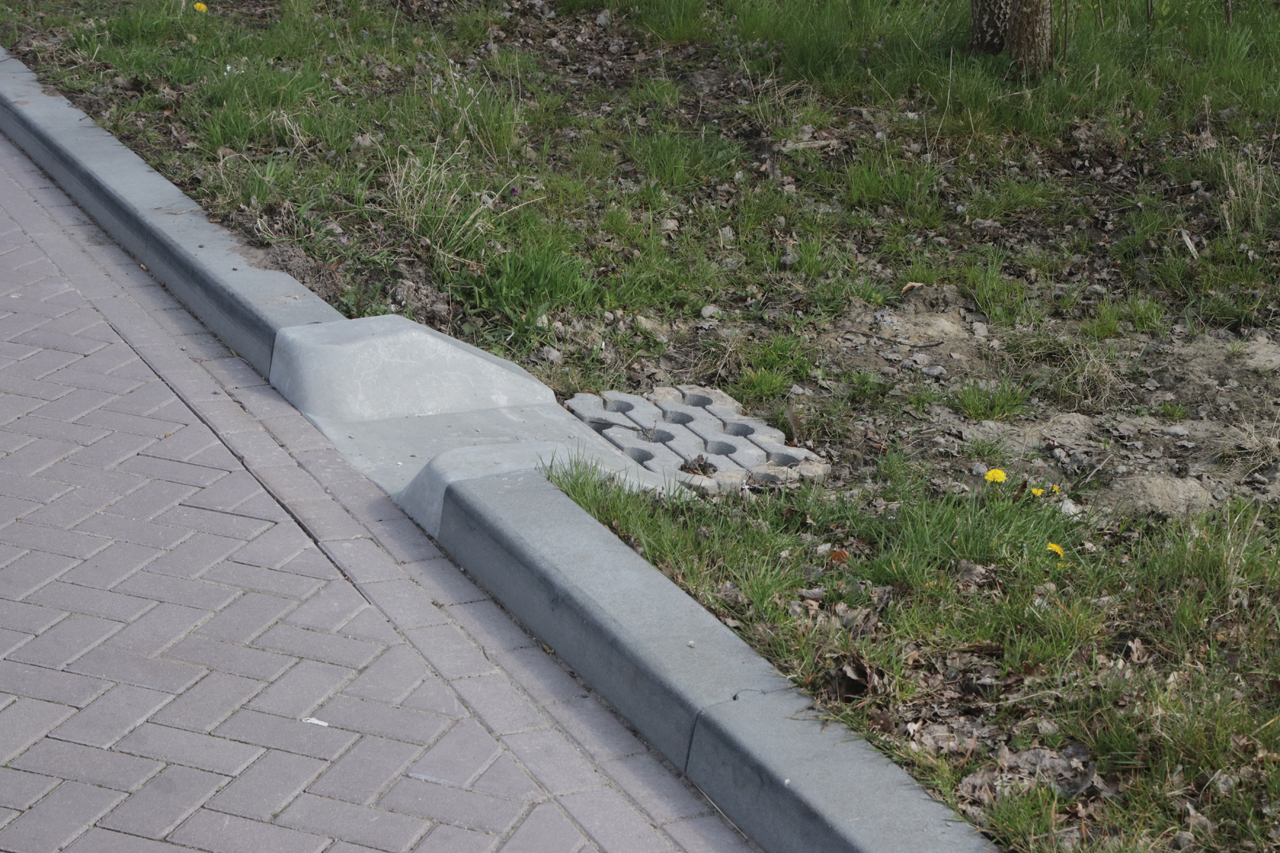

Drainage Outflow | Outflow 600x250 | Straight | L-1000 | Half-Battered | SQ - Image 2

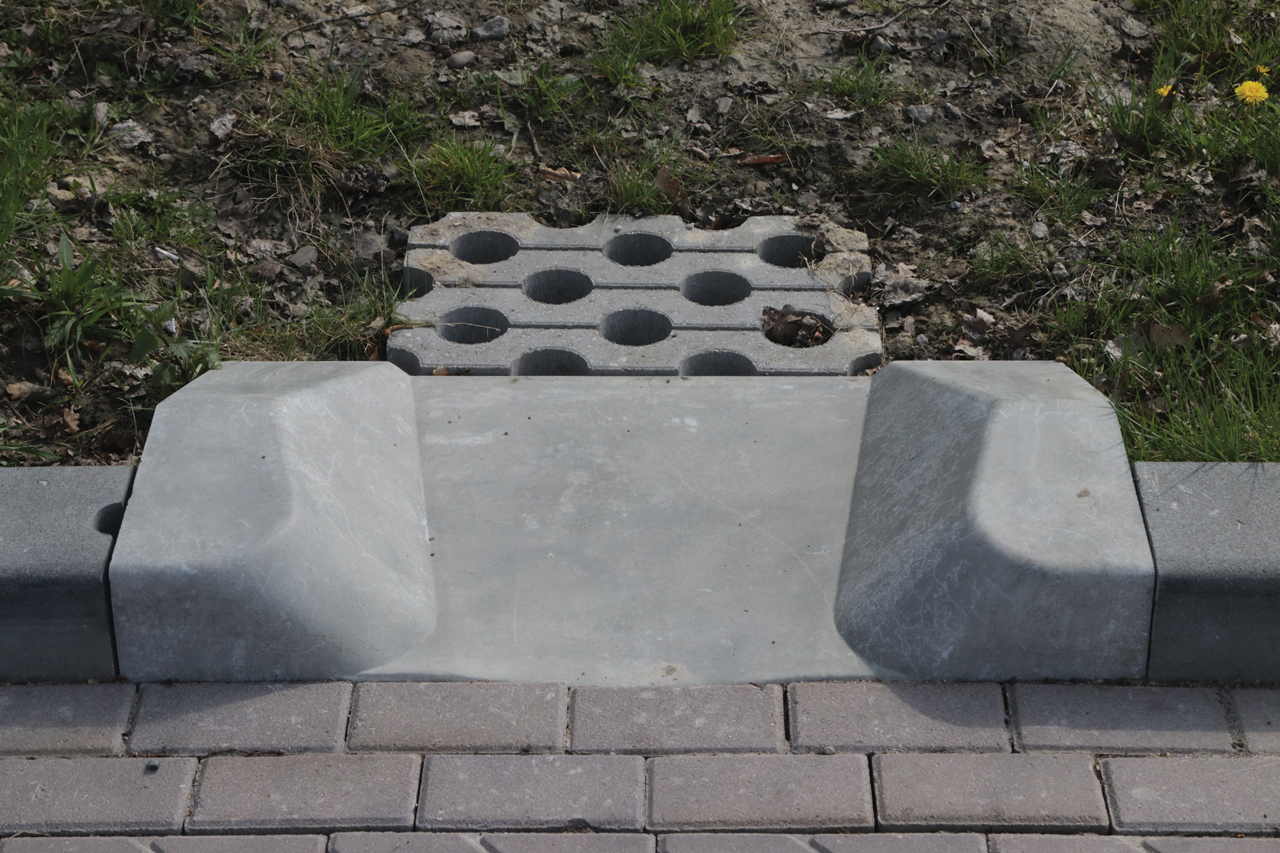

Drainage Outflow | Outflow 600x250 | Straight | L-1000 | Half-Battered | SQ - Image 3

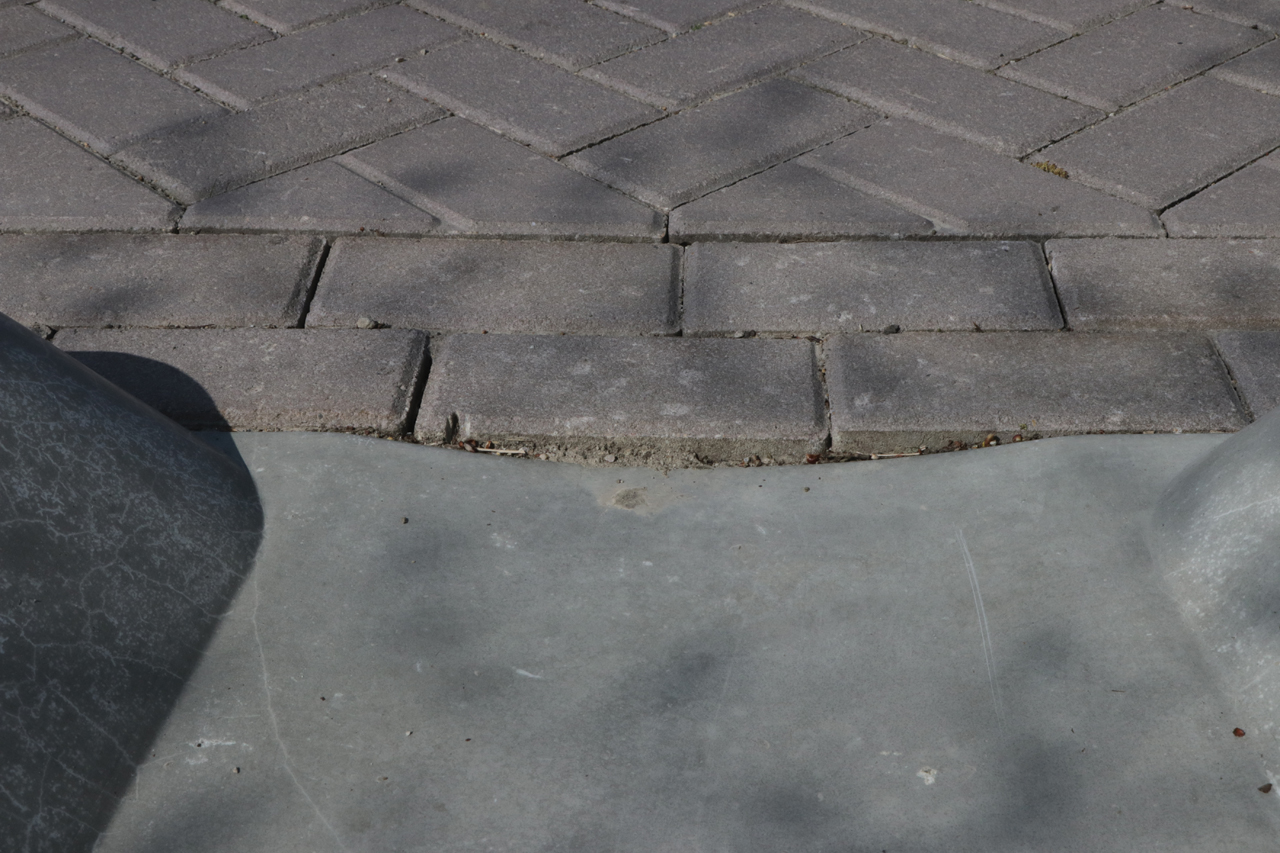

Drainage Outflow | Outflow 600x250 | Straight | L-1000 | Half-Battered | SQ - Image 4

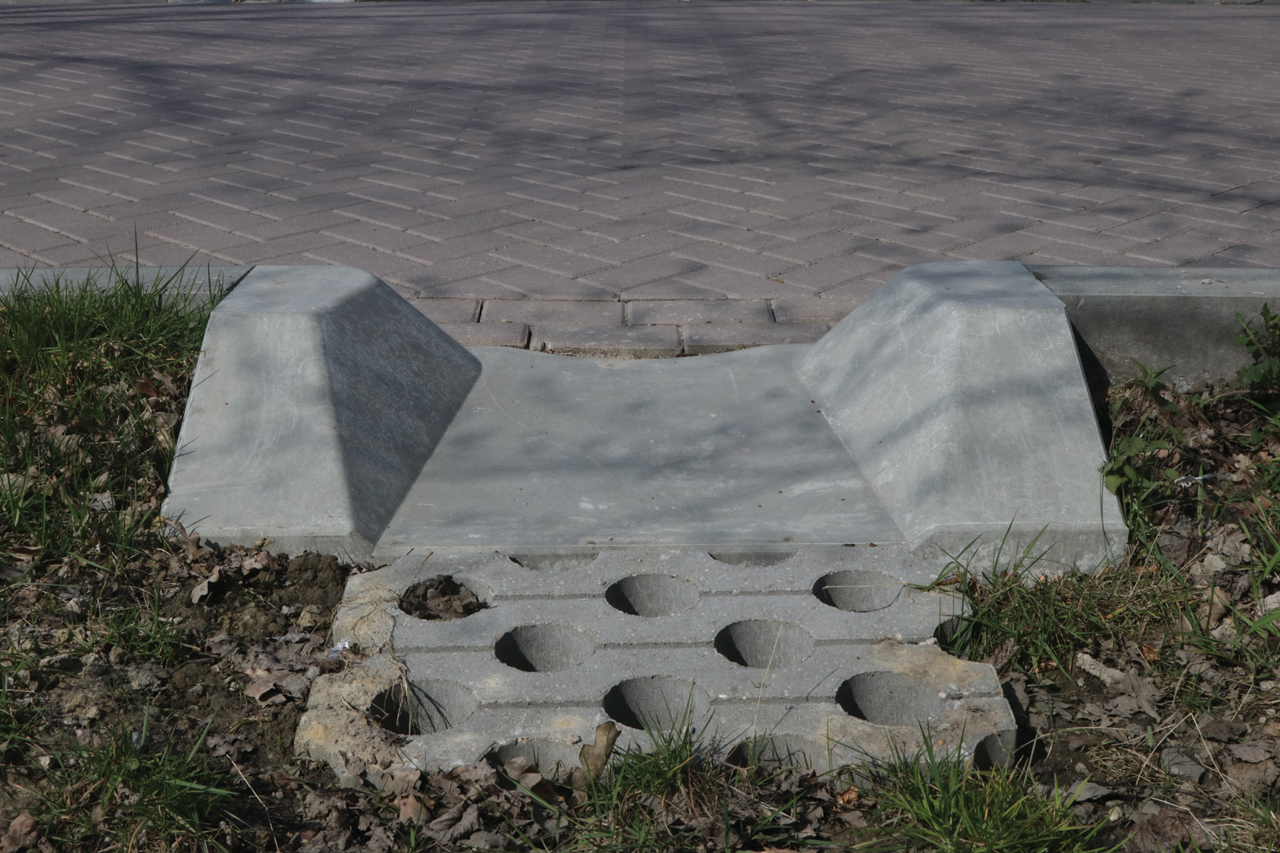

Drainage Outflow | Outflow 600x250 | Straight | L-1000 | Half-Battered | SQ - Image 5
ATK

Downloads

Active Travel Kerbs Brochure

Specification & technical data aligns with our most recent testing, but is indicative and should be treated as such. Some images are computer renders, and all are for illustrative purposes only, exact colours may vary.

COLOUR / MATERIAL / FINISH

Concrete : Standard Wet Cast

Standard wet cast concrete colour or dyed.

  • Donkergrijs
    Concrete

    Donkergrijs

    Standard Wet Cast View Products
    Grey
  • Lichtgrijs
    Concrete

    Lichtgrijs

    Standard Wet Cast View Products
    Grey
