VOSB load class 600+
Axle Loads: 25 tonnes
Forklift (solid tires:) 14.5 tonnes
Forklift (pneumatic tires): 14.5 tonnes
Point loads: 10.5 tonnes
Product Enquiry
Please click the cloud icon in the bottom left to download your BIM file.
- SPECIFICATIONDouble XL Standard | Facet Edge Reinforced | 1990x990x160SKU: KEL-SLA-DXL-011

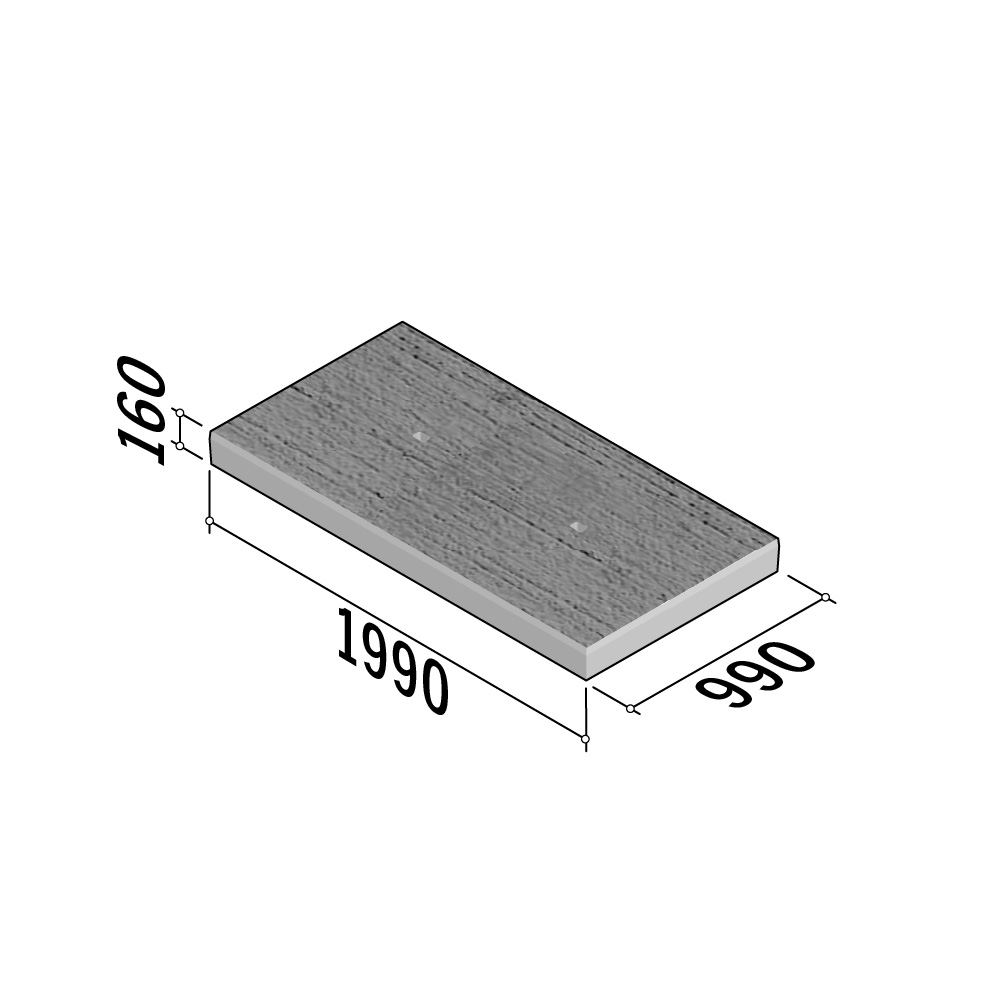

- Size:1990(w) x 990(l) x 160(d)
- Length (mm) X-axis:990
- Width (mm) Y-axis:1990
- Depth (mm) Z-axis:160
- Weight Per Unit:770kg
- Manufacturing Standard:BS EN 1338:2003
- Density:2350 kg/m3
- GWP (total) kgCO2e:82.05 kgCO2e/unit
- Reference Code:VLOERPLAAT FACETRAND CONSTRUCTIEF-199x99x16
- Fitted With:With lifting tubes. Top & bottom structurally reinforced.
- Edge Style:10x10mm
Downloads
Specification & technical data aligns with our most recent testing, but is indicative and should be treated as such. Some images are computer renders, and all are for illustrative purposes only, exact colours may vary.
COLOUR / MATERIAL / FINISH
Concrete : Brushed DXL
Roughened brushed appearance for optimum grip.
