Double XL Standard

Corner Edge Reinforced

Variants:

C/M/F:

VOSB load class 600+
Axle Loads: 22 tonnes
Forklift (solid tires:) 13.5 tonnes
Forklift (pneumatic tires): 15 tonnes
Point loads: 9.5 tonnes

Product Enquiry

Name
First Last
Company name
Email
Phone
Address
Street Address Address Line 2 City County / State / Region ZIP / Postal Code Country
Comments

Please click the cloud icon in the bottom left to download your BIM file.

SPECIFICATION
Double XL Standard | Corner Edge Reinforced | 1995x995x140SKU: KEL-SLA-DXL-030C/M/F: Supplied by Hardscape Products LTD

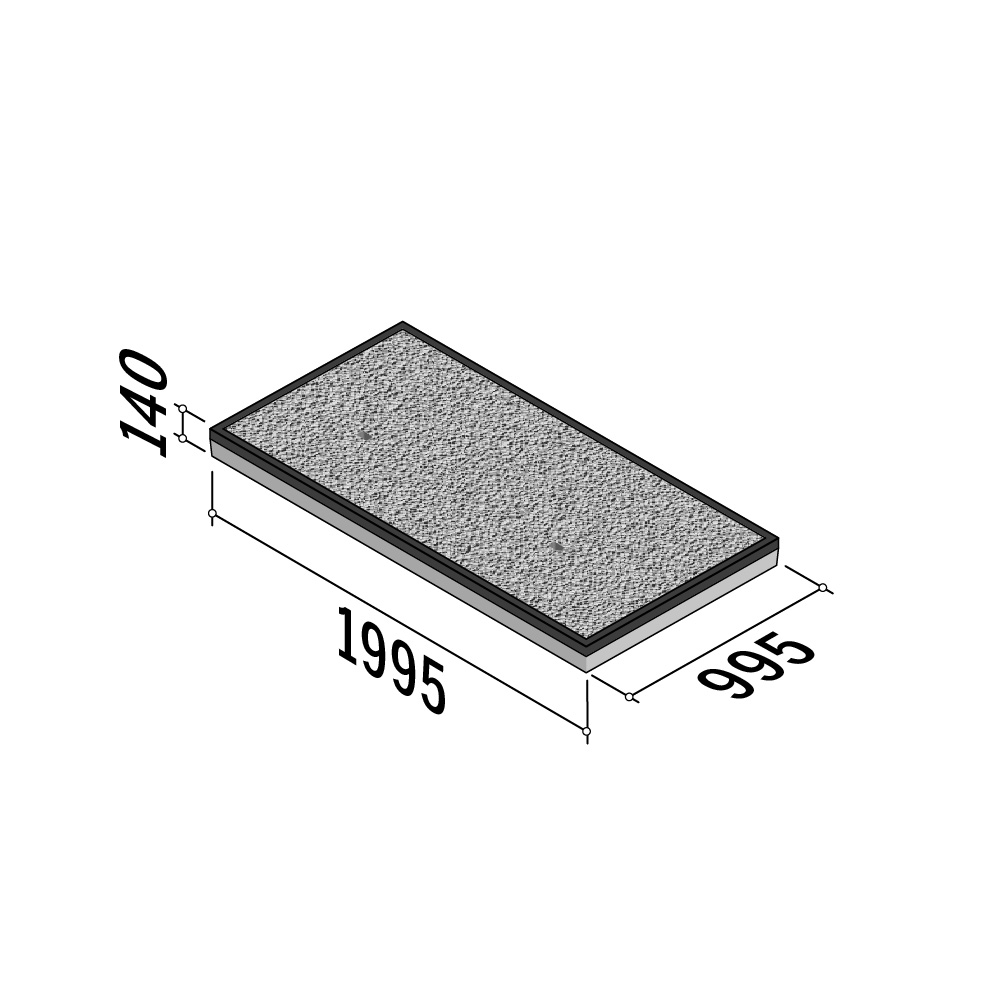

Size:1995(w) x 995(l) x 140(d)
Length (mm) X-axis:995
Width (mm) Y-axis:1995
Depth (mm) Z-axis:140
Weight Per Unit:702kg
Manufacturing Standard:BS EN 1338:2003
Density:2350 kg/m3
GWP (total) kgCO2e:74.8 kgCO2e/unit
Reference Code:VLOERPLAAT HOEKRAND CONSTRUCTIEF-199.5x99.5x14
Fitted With:With lifting tubes. Top & bottom structurally reinforced.
Edge Style:Angled metal edge

Double XL Standard | Corner Edge Reinforced | 1995x995x140

Downloads

Kellen Maintenance Guide

Specification & technical data aligns with our most recent testing, but is indicative and should be treated as such. Some images are computer renders, and all are for illustrative purposes only, exact colours may vary.
