Double XL Sport

Corner R3.5m

Variants:

C/M/F:

This corner solution is suitable for use around football pitches. Curved radius corner solution complies with NOC*NSF standards.

VOSB load class 300
Axle Loads: 10 tonnes
Forklift (solid tires): 7.5 tonnes
Forklift (pneumatic tires): 9 tonnes
Point loads: 5 tonnes

Product Enquiry

Name
First Last
Company name
Email
Phone
Address
Street Address Address Line 2 City County / State / Region ZIP / Postal Code Country
Comments

Please click the cloud icon in the bottom left to download your BIM file.

SPECIFICATION

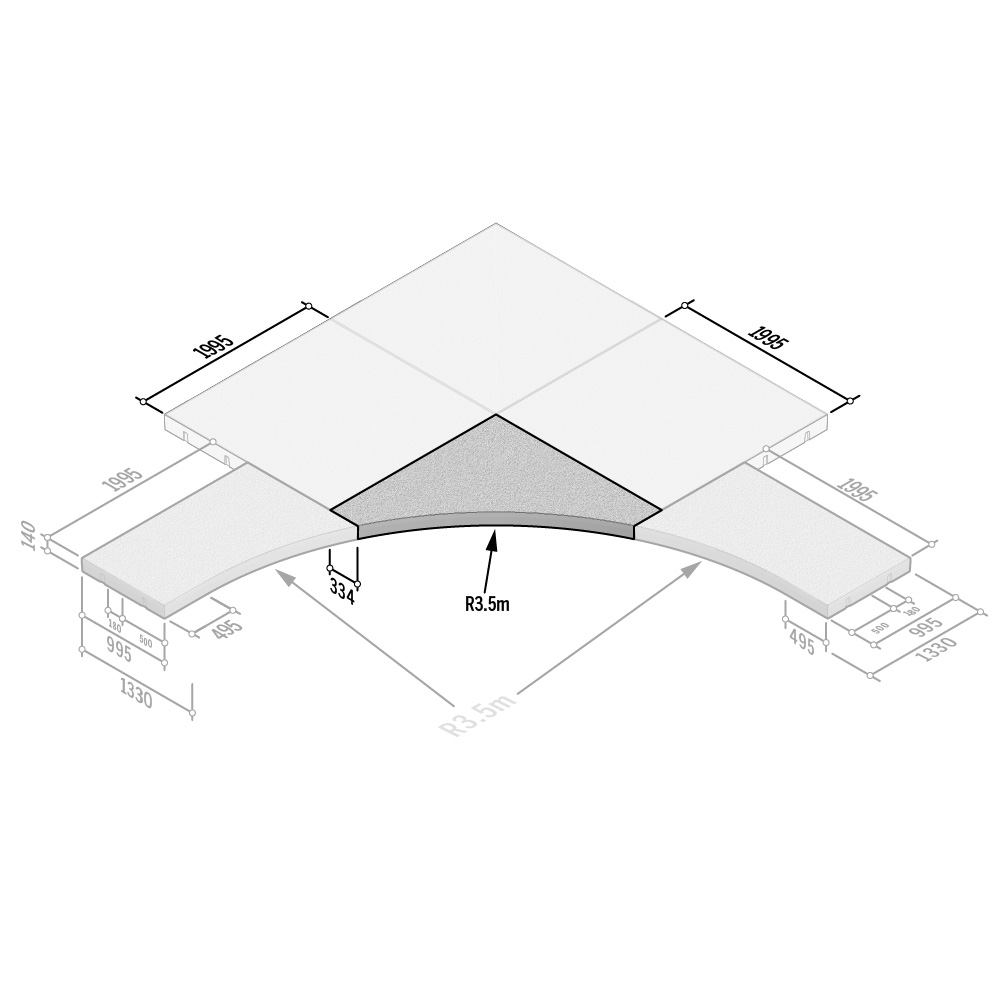

Double XL Sport | Corner R3.5m | 1995x1995x140 MiddleSKU: KEL-SLA-DXS-023C/M/F: Supplied by Hardscape Products LTD
Size:1995(w) x 1995(l) x 140(d)
Length (mm) X-axis:1995
Width (mm) Y-axis:1995
Depth (mm) Z-axis:140
Weight Per Unit:775kg
Manufacturing Standard:BS EN 1338:2003
Density:2350 kg/m3
GWP (total) kgCO2e:82.58 kgCO2e/unit
Reference Code:HOEKOPLOSSING R=3,50-199.5x199.5x14 midden
Position:Middle
Radius:3.5m
Fitted With:Without lifting tubes, installation via vacuum lifting only. Single mesh non-structural reinforcement.
Edge Style:5x5mm

Downloads

Double XL Sport Corner R3.5m 1995x1995x140 Middle Datasheet

Kellen Maintenance Guide

Specification & technical data aligns with our most recent testing, but is indicative and should be treated as such. Some images are computer renders, and all are for illustrative purposes only, exact colours may vary.
