Double XL Sport

Corner R3.5m

Variants:

C/M/F:

Product Enquiry

Name
First Last
Company name
Email
Phone
Address
Street Address Address Line 2 City County / State / Region ZIP / Postal Code Country
Comments

Please click the cloud icon in the bottom left to download your BIM file.

SPECIFICATION

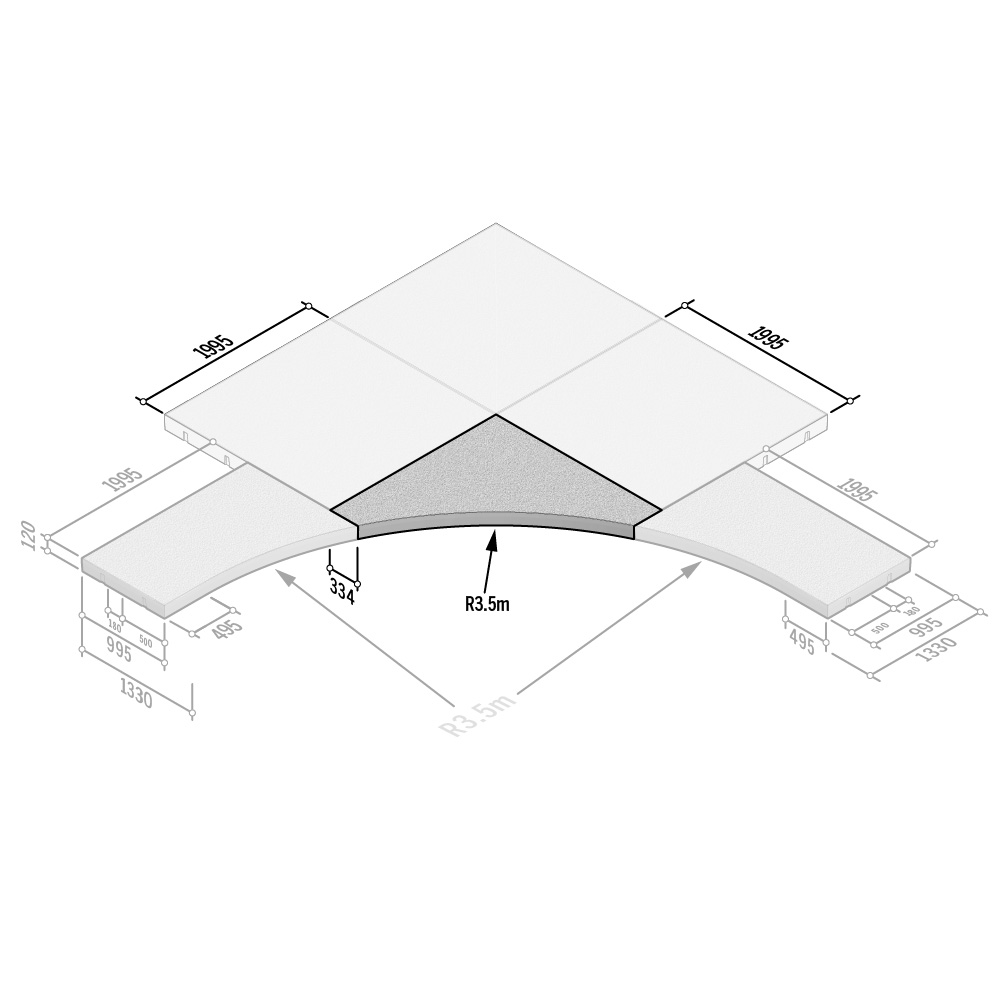

Double XL Sport | Corner R3.5m | 1995x1995x120 MiddleSKU: KEL-SLA-DXS-020C/M/F: Supplied by Hardscape Products LTD
Size:1995(w) x 1995(l) x 120(d)
Length (mm) X-axis:1995
Width (mm) Y-axis:1995
Depth (mm) Z-axis:120
Seat Height (mm) Z-axis:45
Weight Per Unit:664kg
Density:2350 kg/m3
GWP (total) kgCO2e:70.75 kgCO2e/unit
Reference Code:HOEKOPLOSSING R=3,50-199.5x199.5x12 midden
Profile:1995x120
Position:Middle
Radius:3.5m
Fitted With:1. Facet edge 5x5 mm, without lifting tubes. 2. This corner solution is suitable for use around football fields. 3. Curved radius corner solution complies with NOC*NSF standards. 4. Equipped with a non-directional anti-slip texture.

Double XL Sport | Corner R3.5m | 1995x1995x120 Middle

Downloads

Kellen Maintenance Guide

Specification & technical data aligns with our most recent testing, but is indicative and should be treated as such. Some images are computer renders, and all are for illustrative purposes only, exact colours may vary.
