Double XL Aesthetic

Joint

Variants:

C/M/F:

VOSB load class 300
Axle Loads: 10 tonnes
Forklift (solid tires): 7.5 tonnes
Forklift (pneumatic tires): 9 tonnes
Point loads: 5 tonnes

Product Enquiry

Name
First Last
Company name
Email
Phone
Address
Street Address Address Line 2 City County / State / Region ZIP / Postal Code Country
Comments

Please click the cloud icon in the bottom left to download your BIM file.

SPECIFICATION
Double XL Aesthetic | Joint | 1995x995x120SKU: KEL-SLA-DXA-020C/M/F: Supplied by Hardscape Products LTD

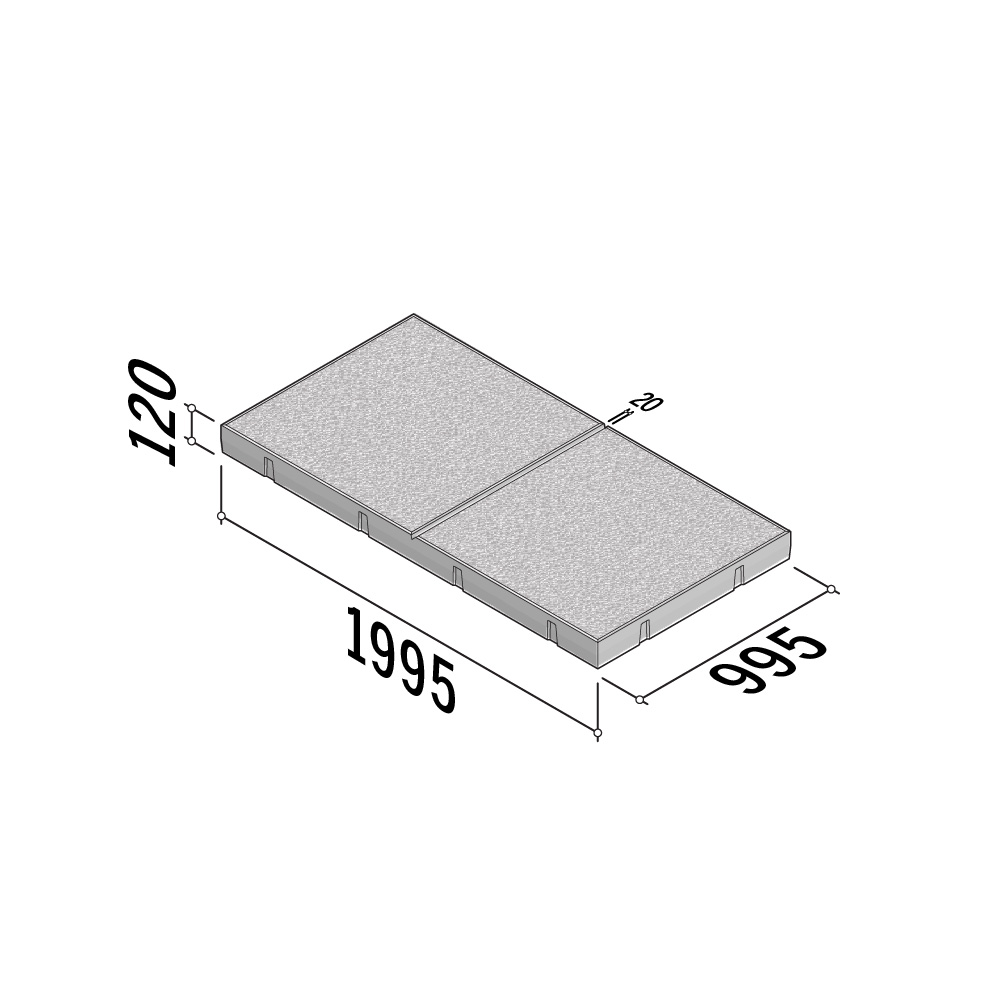

Size:1995(w) x 995(l) x 120(d)
Length (mm) X-axis:995
Width (mm) Y-axis:1995
Depth (mm) Z-axis:120
Weight Per Unit:589kg
Manufacturing Standard:BS EN 1338:2003
Density:2350 kg/m3
GWP (total) kgCO2e:62.76 kgCO2e/unit
Reference Code:VLOERPLAAT MET SCHIJNVOEG-199.5x99.5x12
Fitted With:Without lifting tubes, installation via vacuum lifting only. Single mesh non-structural reinforcement.
Edge Style:5x5mm

Double XL Aesthetic | Joint | 1995x995x120

Downloads

Kellen Maintenance Guide

Specification & technical data aligns with our most recent testing, but is indicative and should be treated as such. Some images are computer renders, and all are for illustrative purposes only, exact colours may vary.
