Wide bus stop platform kerb with a textured top for extra grip. The moderate splay and large radius mean bus wheels are protected from kerb strike whilst allowing the bus to pull right up to the platform. Specially Designed to work with modern low-floor access systems.
Product Enquiry
Please click the cloud icon in the bottom left to download your BIM file.

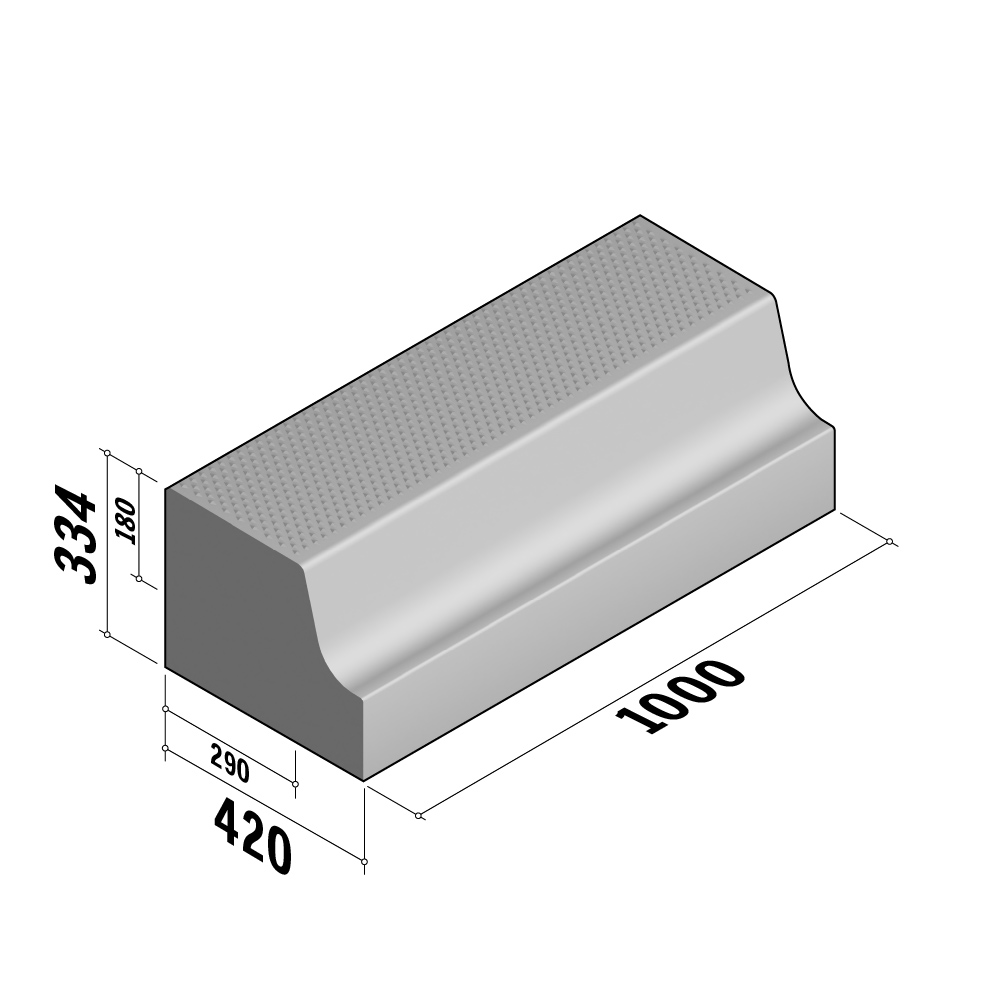

- SPECIFICATIONBus Stop P18 | 420x334 | Straight | L-1000 | Half-Battered | SQSKU: ATK-BUS-004-6919
- Size:420(w) x 334(d) x 1000(l)
- Length (mm) X-axis:1000
- Width (mm) Y-axis:420
- Depth (mm) Z-axis:334
- Weight Per Unit:294.4kg
- Manufacturing Standard:BS EN 1340:2003
- GWP (total) kgCO2e:31.37 kgCO2e/unit
- Reference Code:BUSHALTEBANDEN-42x33.4xL100-SQ
- Type:Straight
- End Style:SQ
- Profile:420x334
- Face:Half-Battered
- Face Angle:74°
Downloads
Specification & technical data aligns with our most recent testing, but is indicative and should be treated as such. Some images are computer renders, and all are for illustrative purposes only, exact colours may vary.
Other Products in this family
COLOUR / MATERIAL / FINISH
Concrete : ZVB
Self-compacting standard concrete colour + dyed or coated, with a fine texture.
