A two piece unit that transitions from the 110-220 profile kerb family to Bus Stop 100-200. For use on the right hand side of bus stops.
Product Enquiry
Please click the cloud icon in the bottom left to download your BIM file.

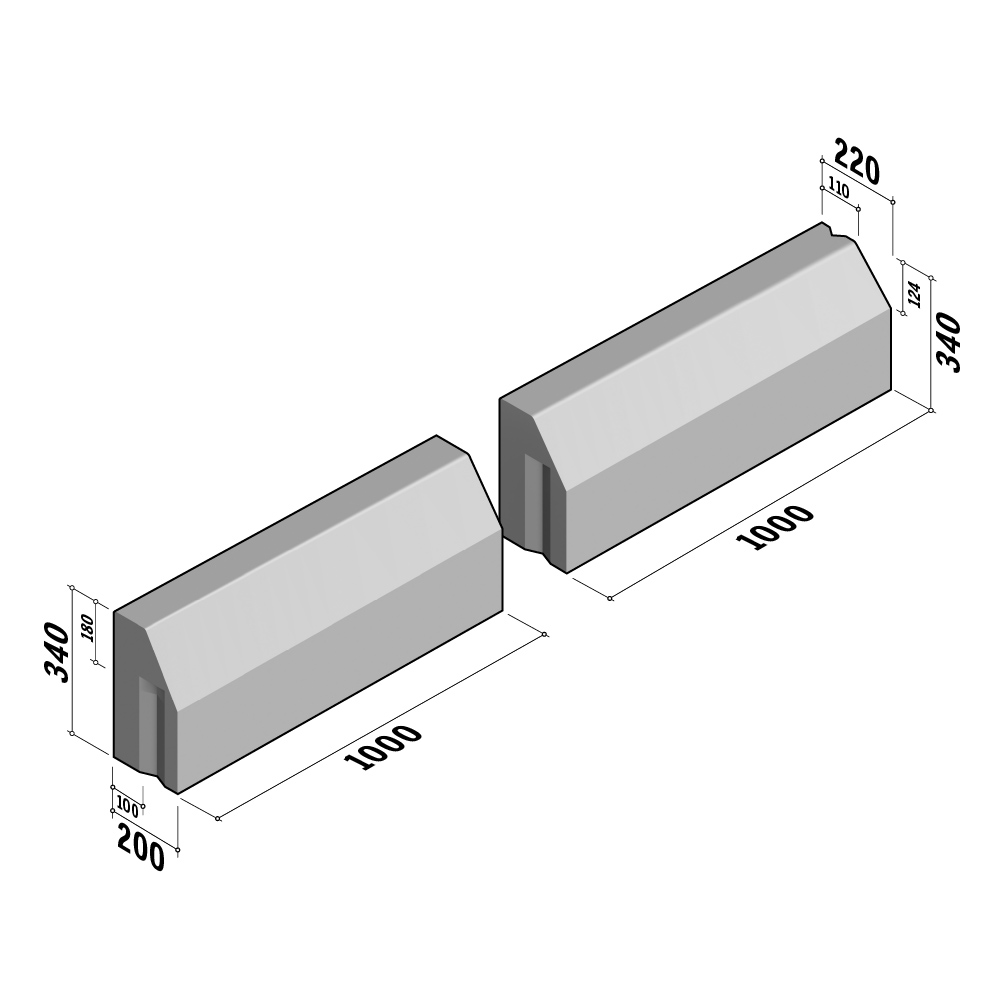

- SPECIFICATIONBus Stop 100-200 | 100-200x400 | Transition COMBI | to 110-220x340 | L-1000 | Right | Half-Battered | VBVVBSKU: ATK-BUS-003-6915
- Size:220(w) x 340(d) x 1000(l)
- Length (mm) X-axis:1000
- Width (mm) Y-axis:220
- Depth (mm) Z-axis:340
- Weight Per Unit:164kg
- Manufacturing Standard:BS EN 1340:2003
- GWP (total) kgCO2e:17.47 kgCO2e/unit
- Reference Code:VERLOOPBANDEN-11-22x34_10-20x40xL100-VBVVB
- Type:Transition COMBI
- End Style:VBVVB
- Profile:110-220x340
- Position:Right
- Transition to:100-200x400
- Face:Half-Battered
- Face Angle:86.71075732
Downloads
Specification & technical data aligns with our most recent testing, but is indicative and should be treated as such. Some images are computer renders, and all are for illustrative purposes only, exact colours may vary.
Other Products in this family
COLOUR / MATERIAL / FINISH
Concrete : ZVB
Self-compacting standard concrete colour + dyed or coated, with a fine texture.
Kellen : Lavaro
With a 70% natural aggregate surface in slightly coarser grain size. The top layer is water washed during production to reveal the varied colour of the aggregate form and thereby provides a market unique stone realistic surface.
