Developed in collaboration as part of Everton FC's Hill Dickinson stadium development, Bramley is a unique large format patterned paver system.

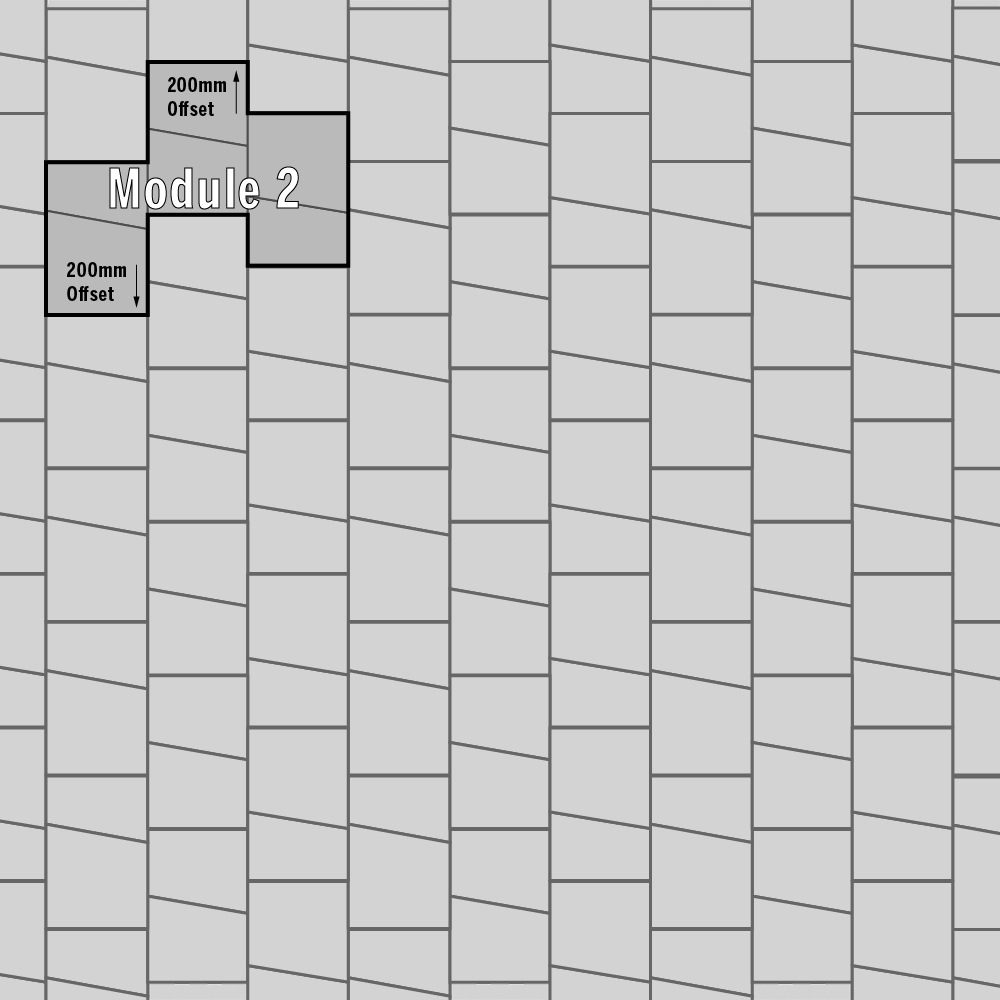

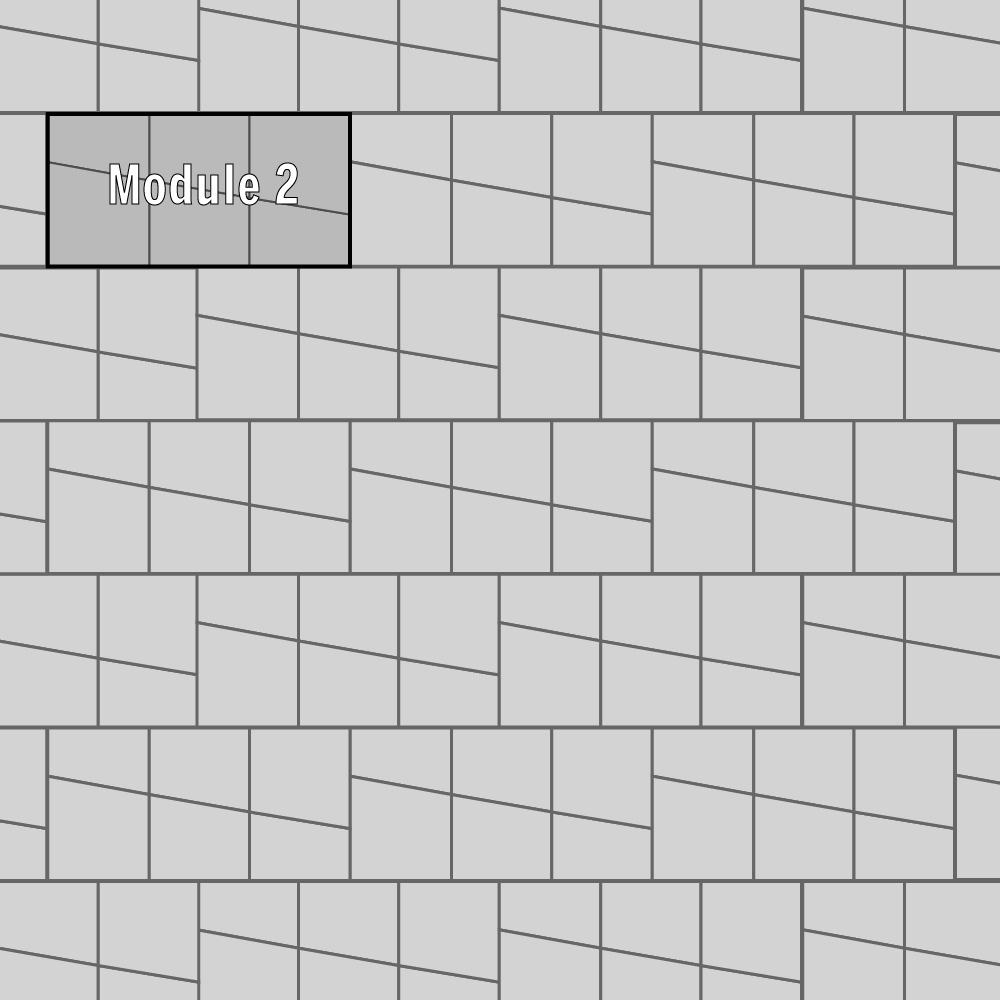

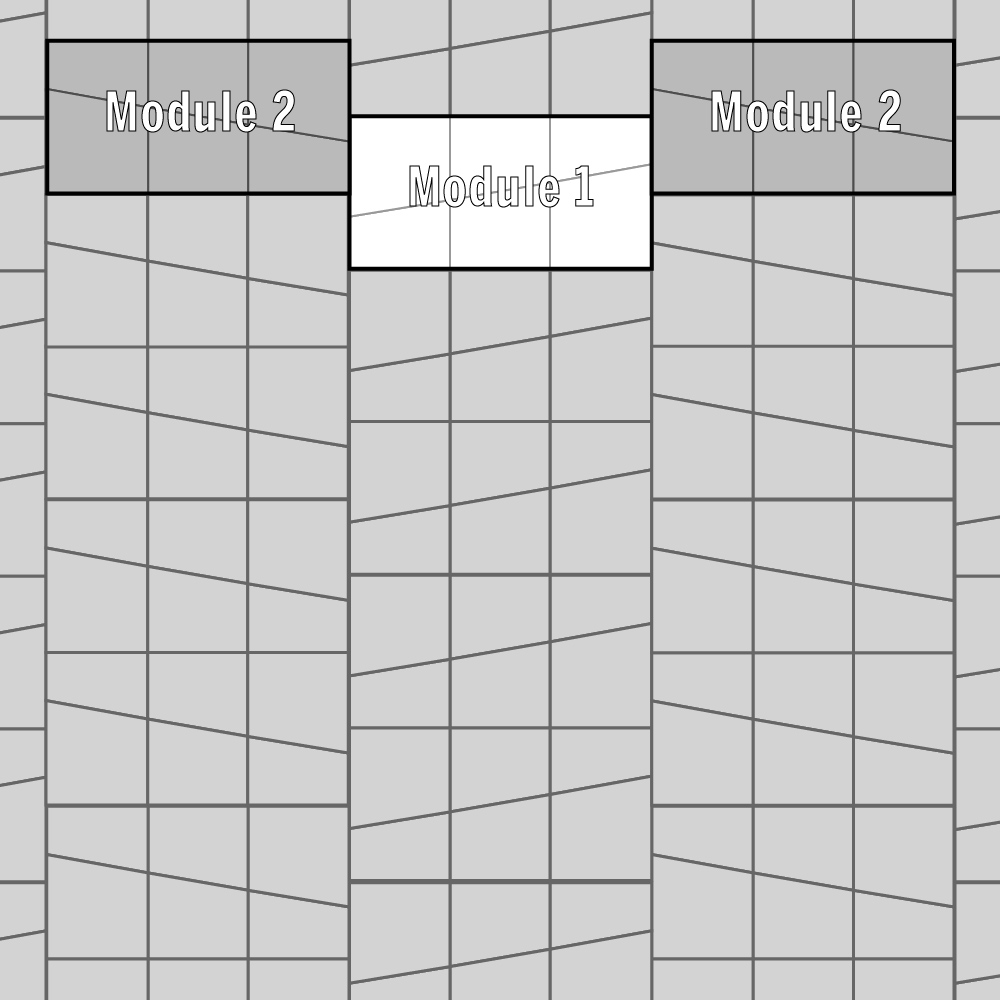

Two modules, where the second module mirrors the first, consist of 6 unique sizes of unit each. This allows a large flexibility of geometric patterns to be created, further enhanced by mixing the wide range of finishes available.
At the Hill Dickinson stadium development, a custom blend of aggregates was utilised to reflect Everton FC's team colours and riverside location. More can be read here in the Hill Dickinson stadium case study.
Product Enquiry
Please click the cloud icon in the bottom left to download your BIM file.
- SPECIFICATIONBramley | Module 2 - DEF-600x1200 | 80mm ThickSKU: KEL-BLO-BRA-002
- Size:600(w) x 1200(l) x 80(d)
- Length (mm) X-axis:1200
- Width (mm) Y-axis:600
- Depth (mm) Z-axis:80
- Weight Per Unit:135kg
- Pack Quantity:7.2sqm
- Quantity per m2:1.39
- Manufacturing Standard:BS EN 1339:2003
- Density:2350 kg/m3
- GWP (total) kgCO2e:14.38 kgCO2e/unit
- Reference Code:6 TRAPEZSTEINE TYP D-F-120x60x8
Downloads
Specification & technical data aligns with our most recent testing, but is indicative and should be treated as such. Some images are computer renders, and all are for illustrative purposes only, exact colours may vary.
Other Products in this family
COLOUR / MATERIAL / FINISH
Kellen : Breccia
This is an ultra refined architectural paving with a 100% pure aggregate non fading top layer to maximise colour fastness. The cultured surface is composed of a 4 aggregate size mix which provides the surface impact. The top layer is water washed during production to reveal the varied colour of the aggregate form and thereby provides a market unique stone realistic surface.
Kellen : Lavaro
With a 70% natural aggregate surface in slightly coarser grain size. The top layer is water washed during production to reveal the varied colour of the aggregate form and thereby provides a market unique stone realistic surface.
Kellen : Liscio
Using the Breccia product as the start this surface is created using stone polishing machinery which produces a highly engineered ground refined surface. With 100% natural aggregate top layer slip resistance is maximised.
Kellen : Lucida
Using the Breccia top layer to start, then further surface treated creating a delicate feint rippled feel. An ultra refined architectural paving with 100% pure aggregate, with no sand, to maximise colour fastness and non fading top layer.
Kellen : Sferio
Split and shot-blasted top layer with 100% natural stone granulates in multiple grades
