Boundary 100 HD

100x200 HD | Return Corner

Variants:

C/M/F:

Product Enquiry

Name
First Last
Company name
Email
Phone
Address
Street Address Address Line 2 City County / State / Region ZIP / Postal Code Country
Comments

Please click the cloud icon in the bottom left to download your BIM file.

SPECIFICATION

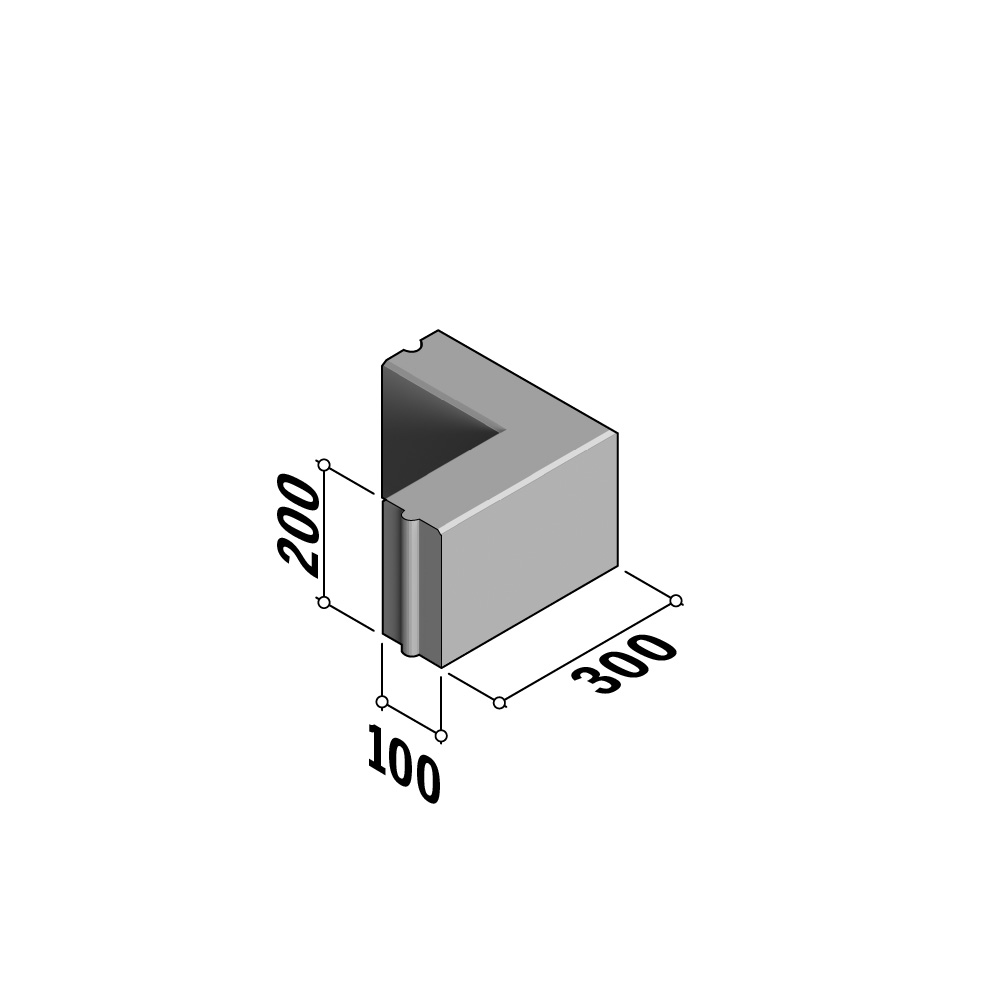

Boundary 100 HD | 100x200 HD | Return Corner | L-300 | External | 90° | Flat | HDSKU: ATK-BOU-004-5037C/M/F: Supplied by Hardscape Products LTD
Size:100(w) x 200(d) x 300(l)
Length (mm) X-axis:300
Width (mm) Y-axis:100
Depth (mm) Z-axis:200
Weight Per Unit:23.5kg
Manufacturing Standard:BS EN 1340:2003
GWP (total) kgCO2e:2.5 kgCO2e/unit
Reference Code:HOEKSTUKKEN-10x20xL30-90°-HD
Type:Return Corner External
End Style:HD
Profile:100x200
Face:Flat
Return Angle:90°

Boundary 100 HD | 100x200 HD | Return Corner | L-300 | External | 90° | Flat | HD

Downloads

Active Travel Kerbs Brochure

Specification & technical data aligns with our most recent testing, but is indicative and should be treated as such. Some images are computer renders, and all are for illustrative purposes only, exact colours may vary.
