Alphen

Bollard Point

C/M/F:

Product Enquiry

Name
First Last
Company name
Email
Phone
Address
Street Address Address Line 2 City County / State / Region ZIP / Postal Code Country
Comments

Please click the cloud icon in the bottom left to download your BIM file.

SPECIFICATION

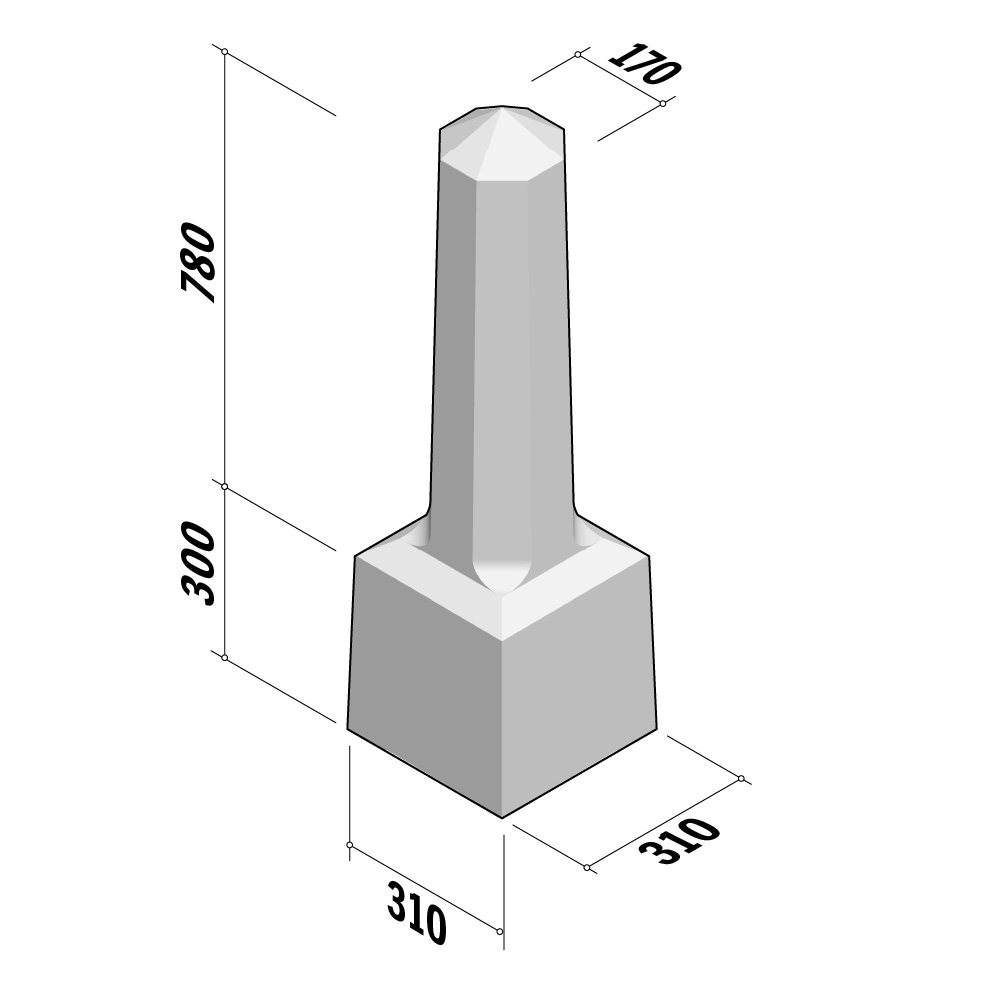

Alphen | Bollard Point | Reinforced | H1080-Ø170SKU: ELE-TBO-ALP-003C/M/F: Supplied by Hardscape Products LTD
Size:Ø170x1080(h)
Width (mm) Y-axis:170
Height (mm) Z-axis:1080
Height Above Ground(mm) Z-axis:780
Weight Per Unit:110kg
Cross Section:Ø170
Manufacturing Standard:BS EN 1338:2003
Density:2350 kg/m3
GWP (total) kgCO2e:11.72 kgCO2e/unit
Reference Code:SIERPAAL ALPHEN PUNT-H108-Ø17 gewapend
Fitted With:Reinforced

Downloads

Alphen Bollard Point Reinforced H1080-Ø170 Datasheet

Specification & technical data aligns with our most recent testing, but is indicative and should be treated as such. Some images are computer renders, and all are for illustrative purposes only, exact colours may vary.
