Access 70-200x250

70-200x250 | Transition

Variants:

C/M/F:

The opposite transition to this can be found in the Highway 180-200x250 HD family

Product Enquiry

Name
First Last
Company name
Email
Phone
Address
Street Address Address Line 2 City County / State / Region ZIP / Postal Code Country
Comments

Please click the cloud icon in the bottom left to download your BIM file.

SPECIFICATION
Access 70-200x250 | 70-200x250 | Transition | to 180-200x250 | L-500 | Splay | VBVBSKU: ATK-ACC-006-6664C/M/F: Supplied by Hardscape Products LTD

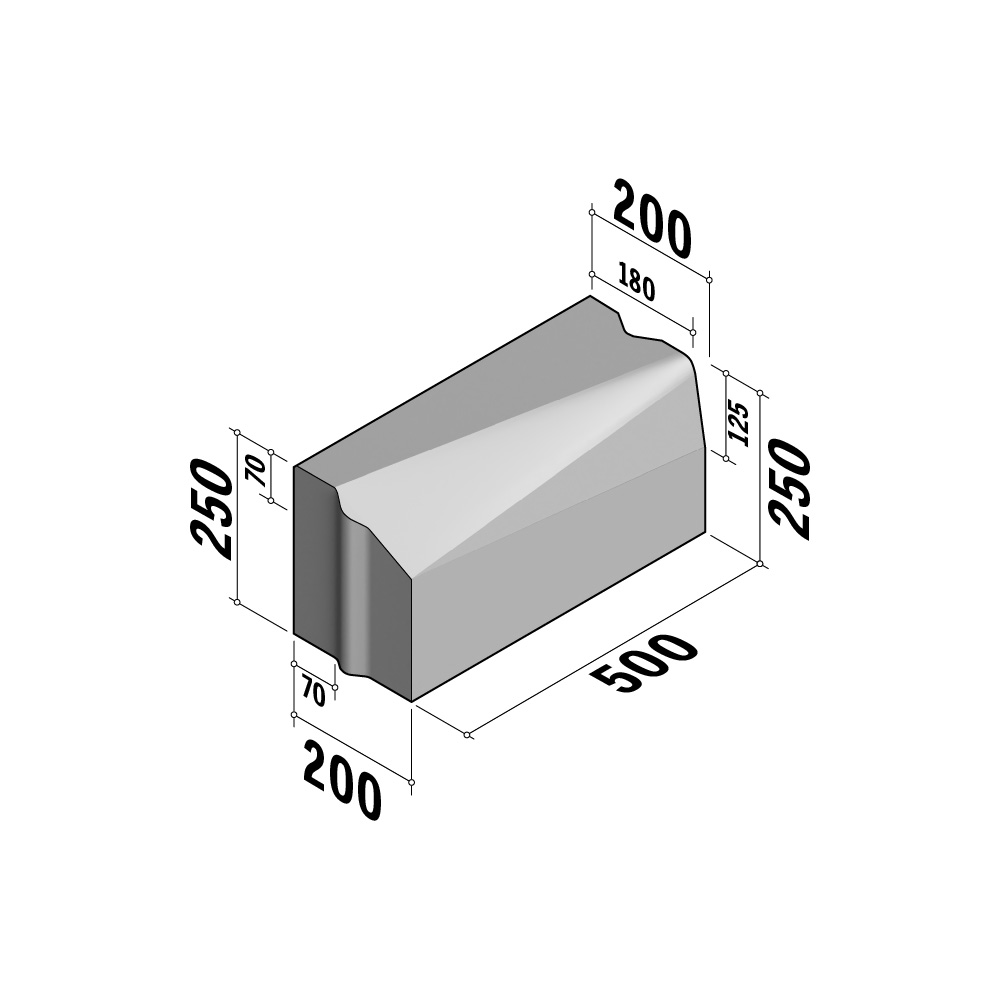

Size:200(w) x 250(d) x 500(l)
Length (mm) X-axis:500
Width (mm) Y-axis:200
Depth (mm) Z-axis:250
Weight Per Unit:55kg
Manufacturing Standard:BS EN 1340:2003
GWP (total) kgCO2e:5.86 kgCO2e/unit
Reference Code:VERLOOPBANDEN-7-20x25_18-20x25xL50-VBVB
Type:Transition
End Style:VBVB
Profile:70-200x250
Transition to:180-200x250
Face:Splay_Half-Battered
Face Angle:28.30075577

Access 70-200x250 | 70-200x250 | Transition | to 180-200x250 | L-500 | Splay | VBVB

Downloads

Active Travel Kerbs Brochure

Specification & technical data aligns with our most recent testing, but is indicative and should be treated as such. Some images are computer renders, and all are for illustrative purposes only, exact colours may vary.

Other Products in this family

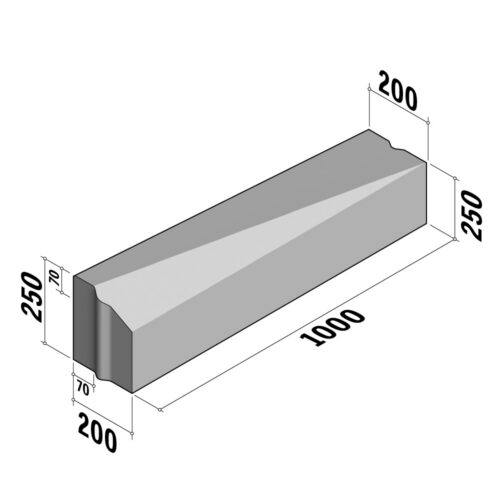

Access 70-200x250 | 70-200x250 | Drop Set | to 200x180 | L-1000 | Flush | Middle | Flat | VB

70-200x250 | Drop Set
(3 variants)

70-200x250 | Straight

COLOUR / MATERIAL / FINISH

Concrete : Standard Wet Cast

Standard wet cast concrete colour or dyed.

Concrete
Donkergrijs
Standard Wet Cast View Products
Grey
Concrete
Hardsteen 026
Standard Wet Cast View Products
Black, Blue
Concrete
Lichtgrijs
Standard Wet Cast View Products
Grey
Concrete
Zwart
Standard Wet Cast View Products
Black

Kellen : Lavaro

With a 70% natural aggregate surface in slightly coarser grain size. The top layer is water washed during production to reveal the varied colour of the aggregate form and thereby provides a market unique stone realistic surface.
