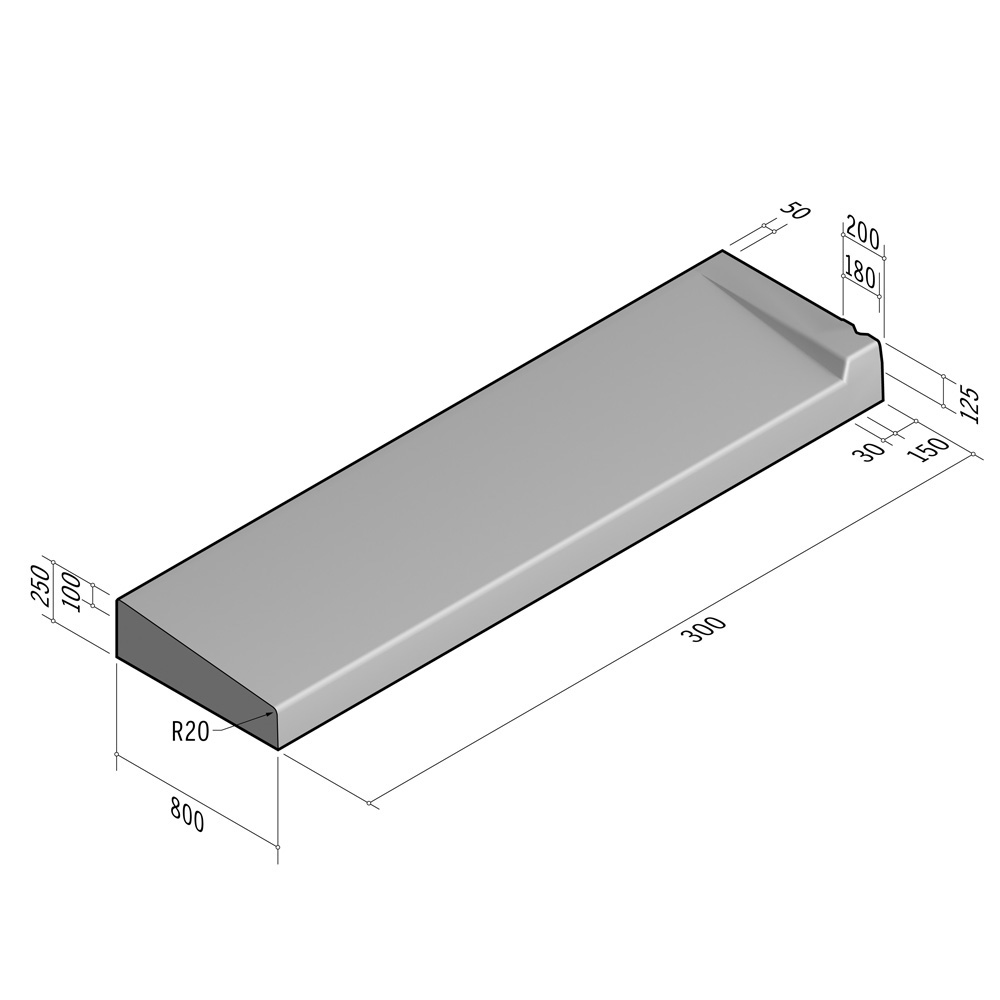

Highway 800×250 | L-3000 | Entry Kerb | Right | Half-Battered | SQVB
SKU: ATK-HWC-009-6084
Dutch Name: INRITBANDEN-VK60-80x25xL300-ETK-VB-RECHTS
The demands of roadway exposed kerbs require a substantial product that will adapt to suit other active travel infrastructure, from traditional half-battered, through to splay and entry kerbs sets for a range of area access.
Product Enquiry
Please click the cloud icon in the bottom left to download your BIM file.
| Type: Entry Kerb | |
| Length: 3000 | End Style: SQVB |
| Profile: 800x250 | Position: Right |
| Transition to: n/a | |
| Weight: 1250kg | kg CO2e/Unit: 133.19kg |
| Face: Half-Battered | Face Angle: 81° |
| Return Angle: n/a | Radius: n/a |
| Slope Angle: 8° | Slope Gradient: 01:07.5 |
-
Silver Grey Granite
-
Buff Granite
-
Mid Grey Granite
-
Standard Light grey
-
Standard Dark grey
-
Standard Black
