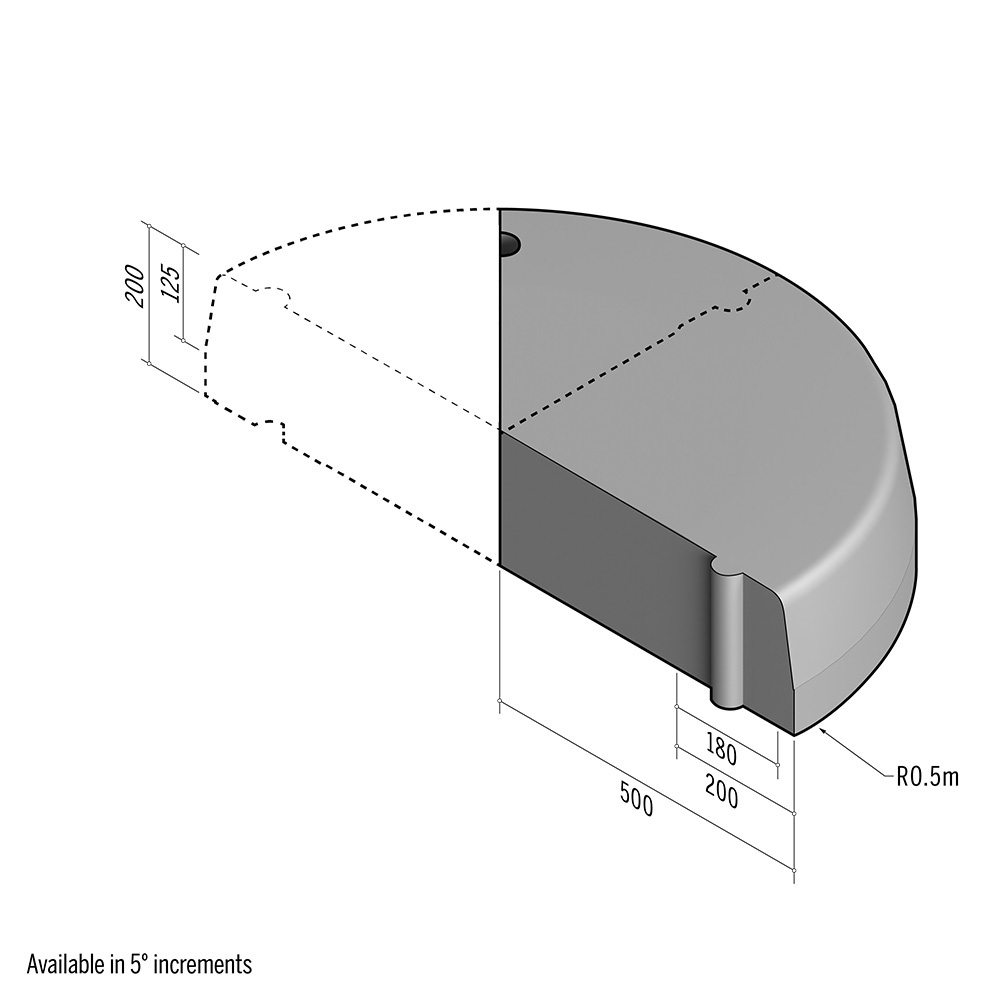

Highway 180-200×200 | Return Point | 90-180° | 0.5m | Half-Battered | HD
SKU: ATK-HWC-005-5766
Dutch Name: PUNTSTUKKEN-18-20x20-RTP-0.5m-90-180°-HD
The demands of roadway exposed kerbs require a substantial product that will adapt to suit other active travel infrastructure, from traditional half-battered, through to splay and entry kerbs sets for a range of area access.
Product Enquiry
Please click the cloud icon in the bottom left to download your BIM file.
| Type: Return Point | |
| Length: n/a | End Style: HD |
| Profile: 180-200x200 | Position: n/a |
| Transition to: n/a | |
| Weight: 90.85kg | kg CO2e/Unit: 9.68kg |
| Face: Half-Battered | Face Angle: 81° |
| Return Angle: 90-180° | Radius: 0.5m |
| Slope Angle: n/a | Slope Gradient: n/a |
-
Silver Grey Granite
-
Buff Granite
-
Mid Grey Granite
-
Standard Light grey
-
Standard Dark grey
-
Standard Black
