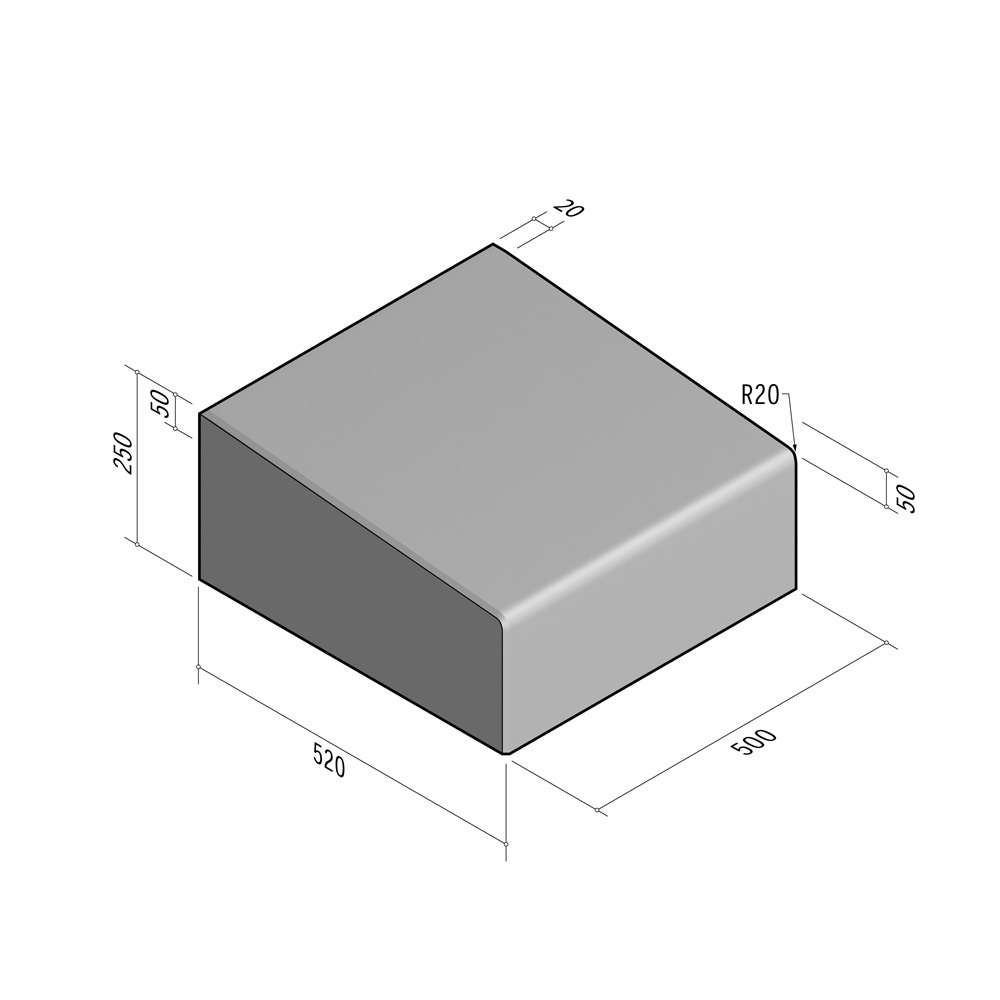

Cycle 520x250 | L-500 | Entry Kerb | Middle | Slope | SQSQ

Cycle 520×250 | L-500 | Entry Kerb | Middle | Slope | SQSQ

SKU: ATK-CYC-003-6580
Dutch Name: INRITBANDEN-52x25xL50-ETK-VL-MIDDEN

Featuring a forgiving splay in a variety of angles and widths, cycle kerbs allow the maximum use of the cycleway’s width at a comfortable enough angle to allow easy entry and exit for users. Our comprehensive sets of cycle kerbs allow for coherent and flowing designs to be formed.

Enquire about this product

Product Enquiry

Please click the cloud icon in the bottom left to download your BIM file.

Type: Entry Kerb
Length: 500 End Style: SQSQ
Profile: 520x250 Position: Middle
Transition to: n/a
Weight: 133kg kg CO2e/Unit: 14.17kg
Face: Slope Face Angle: n/a
Return Angle: n/a Radius: n/a
Slope Angle: 5° Slope Gradient: 01:10.4
  • Silver Grey Granite

    Silver Grey Granite

  • Buff Granite

    Buff Granite

  • Mid Grey Granite

    Mid Grey Granite

  • Standard Light grey

    Standard Light grey

  • Standard Dark grey

    Standard Dark grey

  • Standard Black

    Standard Black
