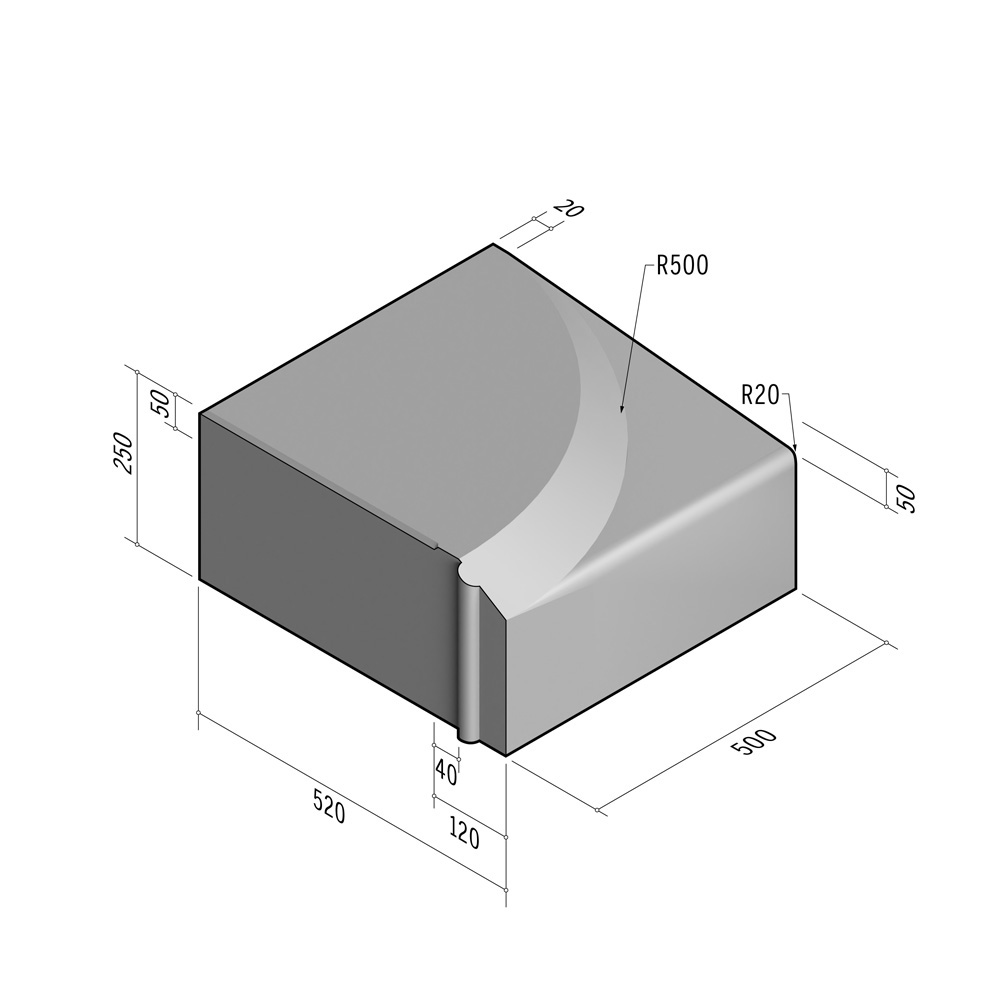

Cycle 520×250 | L-500 | Entry Kerb | Left | Splay | HD
SKU: ATK-CYC-003-6579
Dutch Name: INRITBANDEN-52x25xL50-ETK-HD-LINKS
Featuring a forgiving splay in a variety of angles and widths, cycle kerbs allow the maximum use of the cycleway’s width at a comfortable enough angle to allow easy entry and exit for users. Our comprehensive sets of cycle kerbs allow for coherent and flowing designs to be formed.
Product Enquiry
Please click the cloud icon in the bottom left to download your BIM file.
| Type: Entry Kerb | |
| Length: 500 | End Style: HD |
| Profile: 520x250 | Position: Left |
| Transition to: n/a | |
| Weight: 141kg | kg CO2e/Unit: 15.02kg |
| Face: Splay | Face Angle: 32° |
| Return Angle: n/a | Radius: n/a |
| Slope Angle: 5° | Slope Gradient: 01:10.4 |
-
Silver Grey Granite
-
Buff Granite
-
Mid Grey Granite
-
Standard Light grey
-
Standard Dark grey
-
Standard Black
