SPECIFICATION

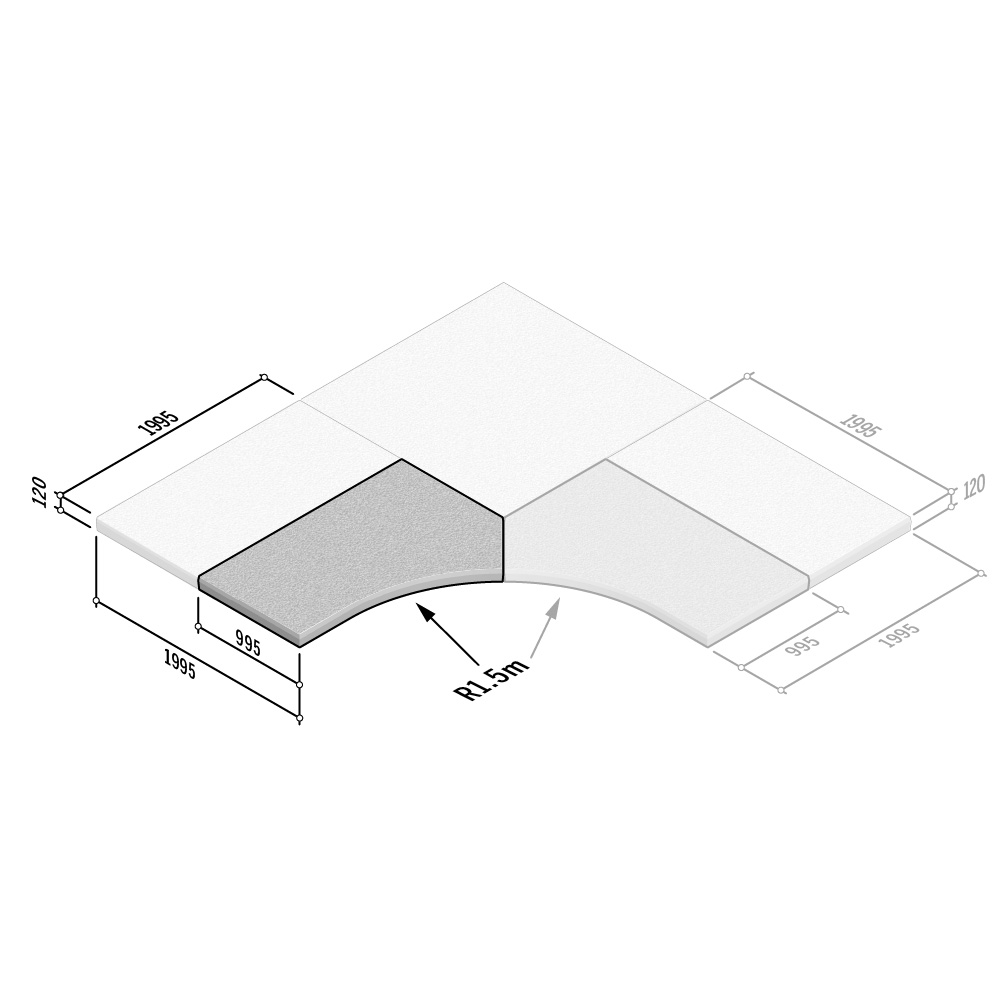

Double XL Sport | Corner R1.5m | 1430-995x1995x120 LeftSKU: KEL-SLA-DXS-013C/M/F: Supplied by Hardscape Products LTD
Size:1430-995(w) x 1995(l) x 120(d)
Length (mm) X-axis:1995
Width (mm) Y-axis:1430-995
Depth (mm) Z-axis:120
Seat Height (mm) Z-axis:45
Weight Per Unit:605kg
Density:2350 kg/m3
GWP (total) kgCO2e:64.46 kgCO2e/unit
Reference Code:HOEKOPLOSSING R=1,50-143-99.5x199.5x12 links
Profile:1430-995x120
Position:Left
Radius:1.5m
Fitted With:1 Also available in a structurally reinforced version, VOSB class > 600. 2 Facet edge 5x5 mm, without lifting tubes. 3 This corner solution is suitable for use around korfball courts. 4 The curved radius corner solution complies with the NOC*NSF standard. 5 Equipped with a non-directional anti-slip texture.

Double XL Sport | Corner R1.5m | 1430-995x1995x120 Left

Downloads

Kellen Maintenance Guide

Specification & technical data aligns with our most recent testing, but is indicative and should be treated as such. Some images are computer renders, and all are for illustrative purposes only, exact colours may vary.
