Cycle 40-120x250 Entry

520x250x500 HD | Entry Kerb

Variants:

C/M/F:

Product Enquiry

Name
First Last
Company name
Email
Phone
Address
Street Address Address Line 2 City County / State / Region ZIP / Postal Code Country
Comments

Please click the cloud icon in the bottom left to download your BIM file.

SPECIFICATION
Cycle 40-120x250 Entry | 520x250 | Entry Kerb | L-500 | Left | Splay | HDSQSKU: ATK-CYC-003-6579C/M/F: Supplied by Hardscape Products LTD
Size:520(w) x 250(d) x 500(l)
Length (mm) X-axis:500
Width (mm) Y-axis:520
Depth (mm) Z-axis:250
Weight Per Unit:141kg
Manufacturing Standard:BS EN 1340:2003
GWP (total) kgCO2e:15.02 kgCO2e/unit
Reference Code:INRITBANDEN-52x25xL50-HDSQ-LINKS
Type:Entry Kerb
End Style:HDSQ
Profile:520x250
Position:Left
Face:Splay
Face Angle:32.00538321
Slope Angle:5
Slope Gradient:1:10.4

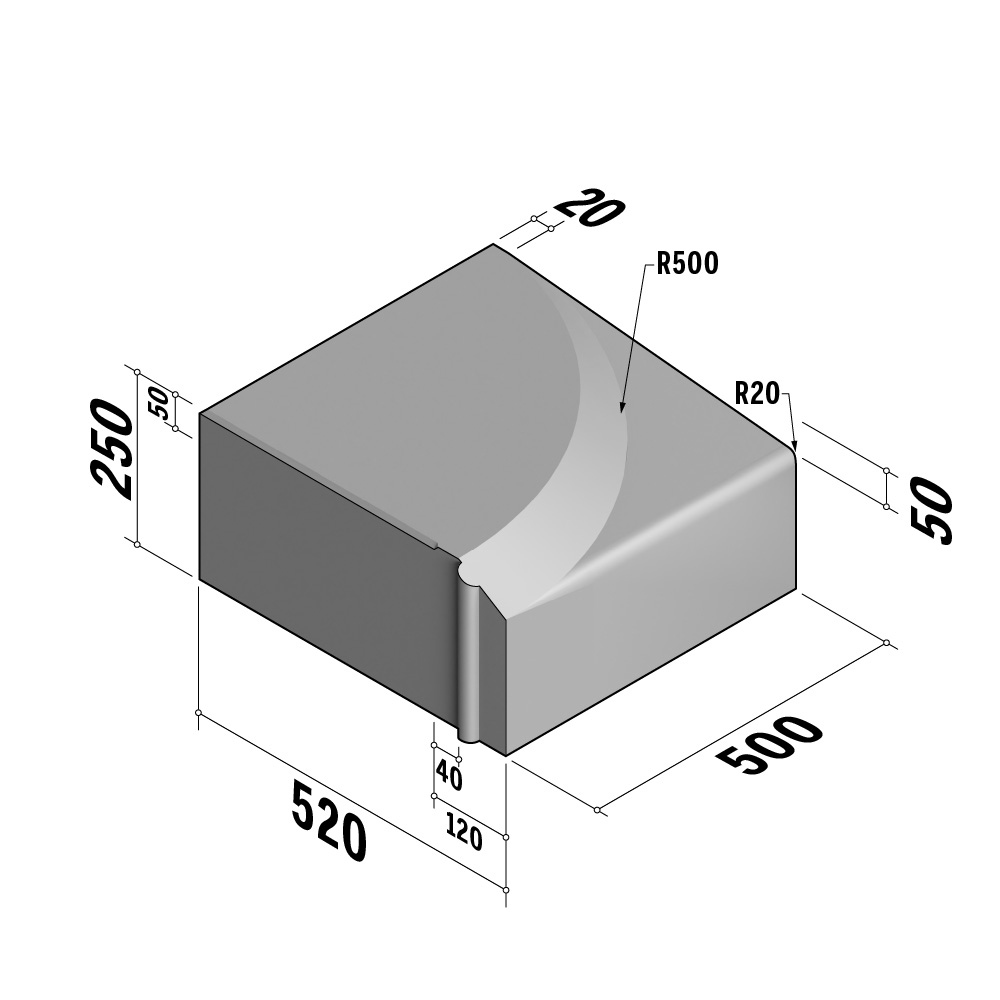

Cycle 40-120x250 Entry | 520x250 | Entry Kerb | L-500 | Left | Splay | HDSQ

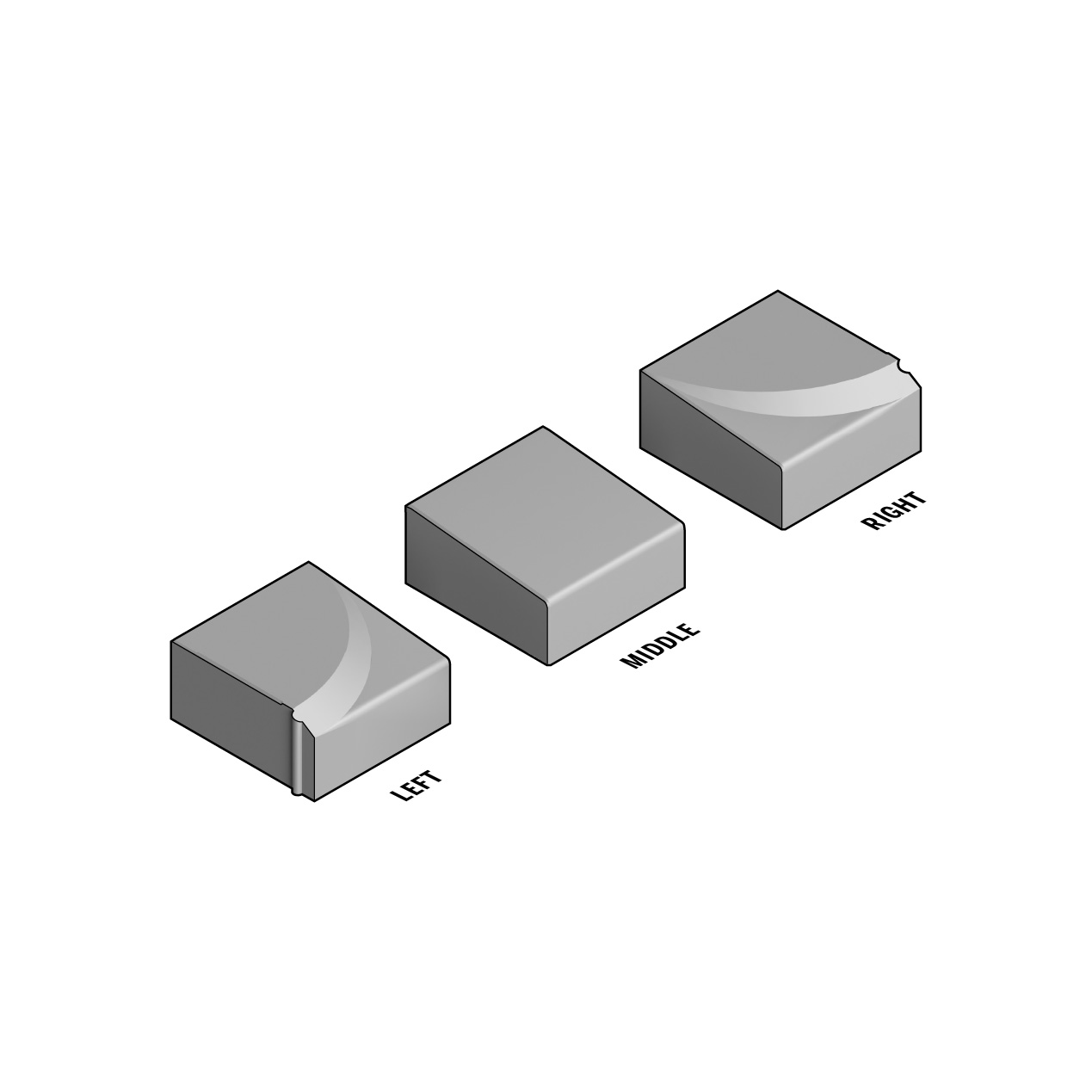

Cycle 40-120x250 Entry | 520x250 | Entry Kerb | L-500 | Left | Splay | HDSQ - Image 2

Downloads

Active Travel Kerbs Brochure

Specification & technical data aligns with our most recent testing, but is indicative and should be treated as such. Some images are computer renders, and all are for illustrative purposes only, exact colours may vary.
